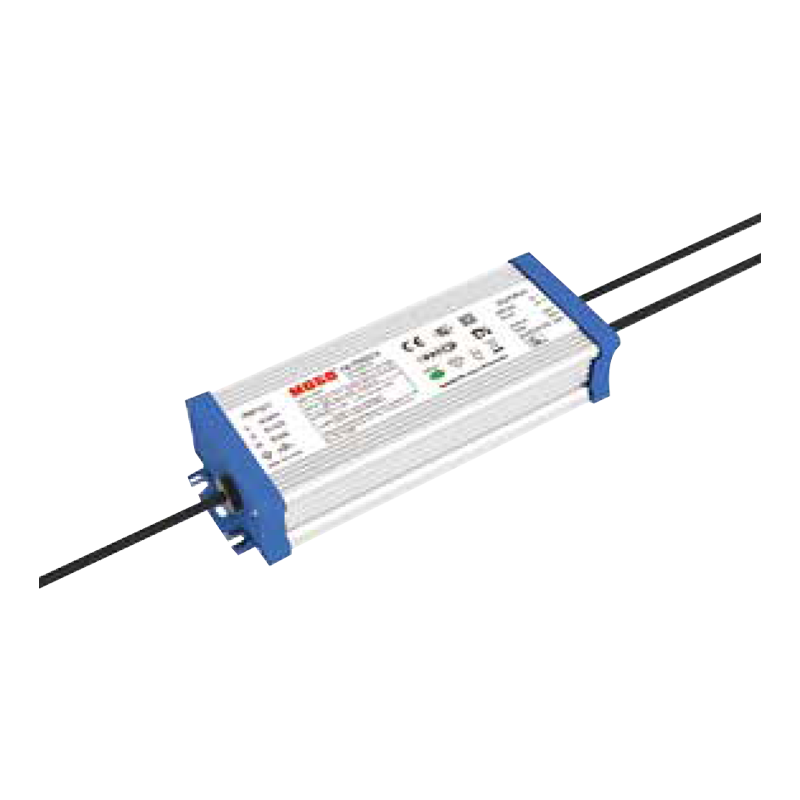

X8D NFC Programmable DALI-2 / D4i Smart LED Driver X8D

NFC Programmable DALI-2 / D4i Smart LED Driver X8D

The NFC-Programmable DALI-2 & D4i Smart Driver X8D is an IP67-rated isolated constant-power LED driver that brings true smart-lighting intelligence. Engineered for streetlights, highways, factories and warehouses, the driver accepts a wide 90–305 Vac input and delivers stable performance under fluctuating grid conditions.

Built-in 16 V bus power, a 24 V auxiliary output, sub-0.5 W standby consumption and optional external NTC thermal sensing keep systems efficient and responsive. These capabilities eliminate the usual frustrations of complex commissioning, limited interoperability, high idle power. OEM and ODM services are available for tailored electrical parameters, mechanical design, branding and packaging.

Form Drawing

Product Specification

Model X8-042D062 X8-060D062 X8-075D056 X8-075D108
Power (W) 42 60 75 75
Output voltage range (Vdc) 32~62 32~62 28~56 54～108
Adjustable full-power current range (A) 0.68～1.05 0.97～1.30 1.35~2.15 0.70～1.05
Default output 32～40V/1.05A 32～57V/1.05A 38~48V/1.55A 54～108V/0.70A
Typical efficiency 88.50% 89.00% 90.50% 91.00%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 138*72*37 138*72*37 155*72*37 155*72*37



Model X8-100D056 X8-100D143 X8-150D056 X8-150D214
Power (W) 100 100 150 150
Output voltage range (Vdc) 28~56 72~143 28~56 107～214
Adjustable full-power current range (A) 1.78~2.85 0.70~1.05 2.70~4.30 0.70～1.05
Default output 38~48V/2.05A 75~143V/0.70A 38~48V/3.10A 107～214V/0.70A
Typical efficiency 90.50% 91.50% 92.00% 93.50%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 155*72*37 155*72*37 190*72*39 190*72*39



Model X8-200D056 X8-200D286 X8-240D056
Power (W) 200 200 240
Output voltage range (Vdc) 28~56 143~286 28~56
Adjustable full-power current range (A) 3.57~5.70 0.70～1.05 4.30～6.85
Default output 38~48V/4.15A 143～286V/0.70A 38～48V/5.00A
Typical efficiency 93.00% 94.00% 93.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 190*72*39 190*72*39 214*72*39



Model X8-240D343 X8-320D056 X8-320D457
Power (W) 240 320 320
Output voltage range (Vdc) 171~343 28~56 228～457
Adjustable full-power current range (A) 0.70～1.05 5.70~9.14 0.70～1.05
Default output 171～343V/0.70A 38~ 48V/6.70A 228~457V/0.70A
Typical efficiency 94.00% 93.50% 94.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 214*72*39 248*72*39 248*72*39
Inquiry Download
