N6H Rugged Non-Isolated Smart LED Driver N6H

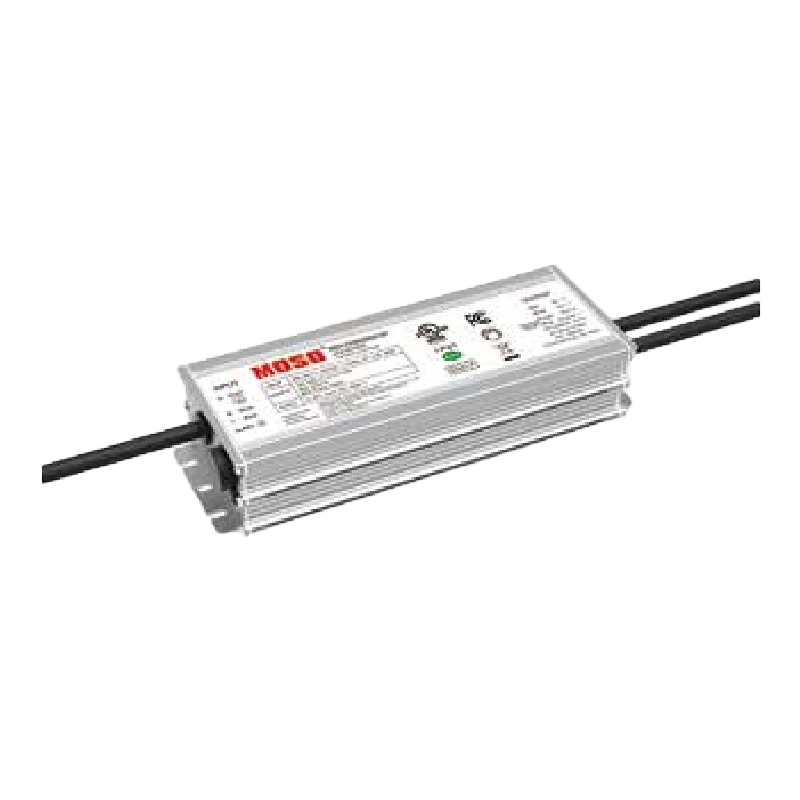

Rugged Non-Isolated Smart LED Driver N6H

Rugged Non-Isolated LED Smart Driver N6H provides non-isolated constant-current performance for demanding fixtures. Linear high-bay, flood, wall and shoe-box luminaires constitute the core application domains. Wide 198–528 Vac input, three-in-one dimming with dimming-to-off, zero residual glow, 12 V auxiliary supply and potentiometer current adjustment deliver the essential functional advantages. The design solves voltage instability on long industrial feeders, residual afterglow complaints and vibration-induced failures common in heavy-duty settings. Through OEM/ODM services manufacturers can adapt surge levels, dimming profiles and mechanical interfaces.

Form Drawing

Product Specification

Model N6H-100M260A12H N6H-150M260A12H N6H-200M260A12H
Power (W) 100 150 200
Output voltage range (Vdc) 180~260 180~260 180~260
Adjustable output current range (A) 0.30~0.50 0.37~0.75 0.50~0.90
Typical efficiency 93.00% 93.00% 94.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 177*68*39 177*68*39 202*68*39



Model N6H-240M260A12H N6H-320M260A12H
Power (W) 240 320
Output voltage range (Vdc) 180~260 180~260
Adjustable output current range (A) 0.60~1.10 1.10~1.48
Typical efficiency 94.00% 94.00%
Typical power factor (PF) 0.97 0.97
Dimensions (L × W × H) mm 202*68*39 212*68*39
