X6I Triple Dimming Modes LED Driver (BIS) X6I

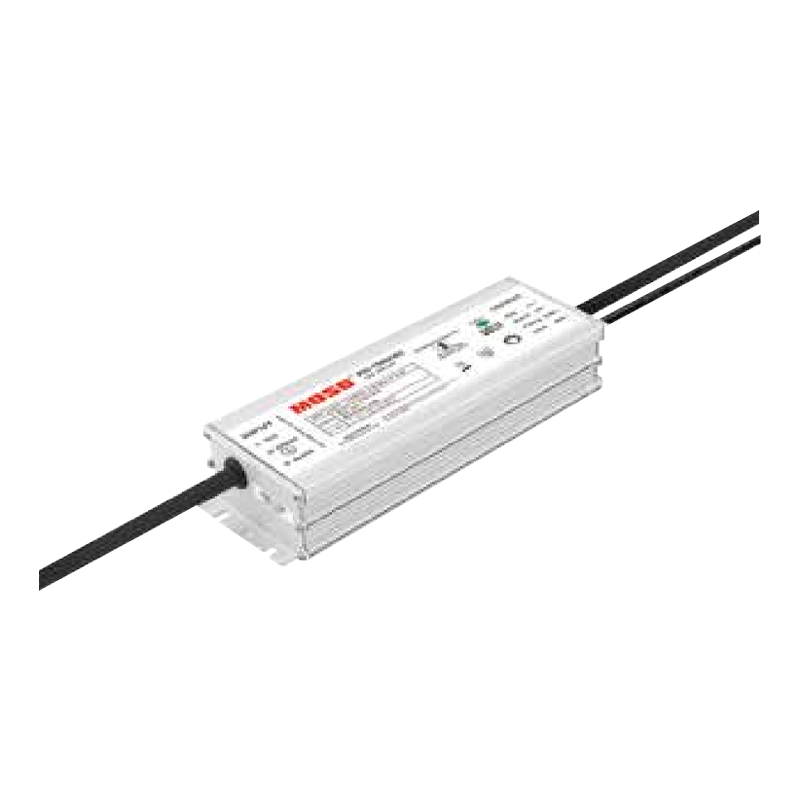

Triple Dimming Modes LED Driver (BIS) X6I

Designed for demanding outdoor conditions, BIS Version Triple Dimming Modes LED Driver X6I delivers offline programmability and multi-mode control to LED systems. Road lighting and industrial illumination projects gain stable performance under wide voltage swings. Isolated constant-power output from 110–305 Vac, offline current programming, three-in-one dimming (0/1-10 V, PWM, time control), light-decay compensation and work-log recording form the core strengths.

These capabilities solve rapid lumen depreciation, limited field adjustability and vulnerability to prolonged over-voltage events. Five-year warranty coverage adds further confidence. OEM/ODM partners can customize current ranges and dimming logic to match regional standards and project schedules without sacrificing certified robustness.

Form Drawing

Product Specification

Model X6I-075Y062 X6I-075Y108 X6I-105Y062 X6I-105Y150
Power (W) 75 75 105 105
Output voltage range (Vdc) 38~62 54~108 38~62 75~150
Adjustable full-power current range (A) 1.21~1.88 0.70~1.05 1.69~2.50 0.70~1.05
Default output 38~53V/1.40A 54~108V/0.70A 38~50V/2.10A 75~100V/1.05A
Typical efficiency 89.00% 90.00% 91.00% 92.00%
Typical power factor 0.96 0.96 0.97 0.97
Dimensions (L × W × H) mm 129*68*37 129*68*37 154*68*37 154*68*37



Model X6I-150Y062 X6I-150Y214 X6I-200Y062 X6I-200Y286
Power (W) 150 150 200 200
Output voltage range (Vdc) 38~62 107~214 38~62 143~286
Adjustable full-power current range (A) 2.42~3.60 0.70~1.05 3.23~5.00 0.70~1.05
Default output 38~47V/3.15A 107~214V/0.70A 38~41V/4.90A 143~286V/0.70A
Typical efficiency 91.00% 92.00% 92.00% 92.00%
Typical power factor 0.96 0.97 0.97 0.97
Dimensions (L × W × H) mm 174*68*37 174*68*37 194*68*39 194*68*39



Model X6I-240Y062 X6I-240Y343 X6I-320Y457
Power (W) 240 240 320
Output voltage range (Vdc) 38~62 171~343 228~457
Adjustable full-power current range (A) 3.88~5.71 0.70~1.05 0.70~1.10
Default output 38~48V/5.00A 171~343V/0.70A 228~304V/1.05A
Typical efficiency 92.00% 93.50% 94.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 209*68*39 209*68*39 231*98*42
