V6E Under-Voltage Safe Constant Voltage LED Driver V6E

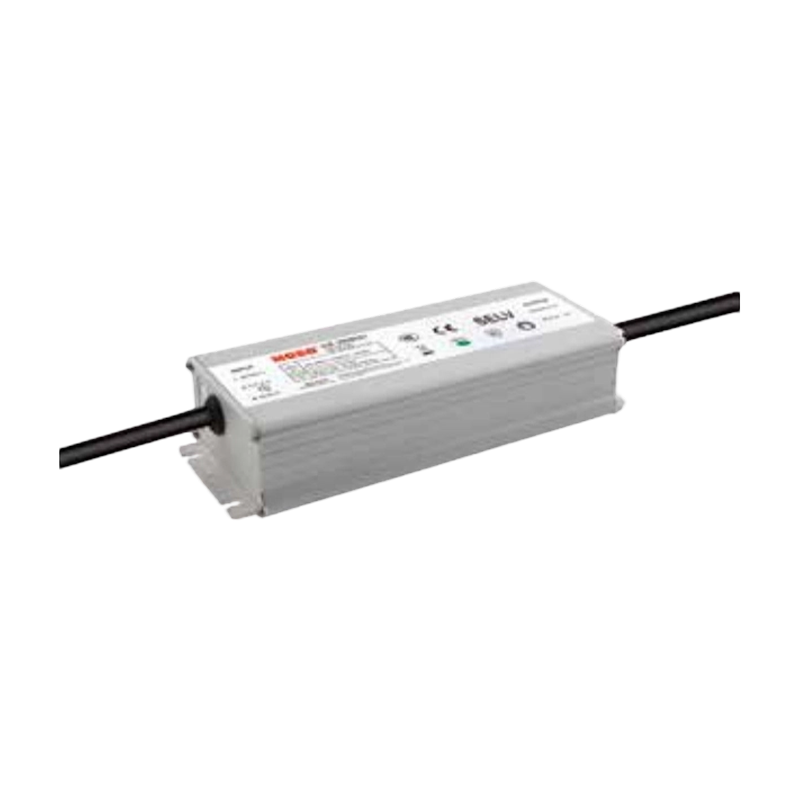

Under-Voltage Safe Constant Voltage LED Driver V6E

Stable voltage control becomes important when LED lighting operates under changing power conditions. Under-Voltage Safe Constant Voltage LED Driver V6E is designed for constant-voltage LED systems, helping maintain consistent lighting performance during voltage fluctuations. It fits landscape lighting, advertising light boxes, commercial displays, and other LED installations requiring dependable power delivery. Key functions cover under-voltage protection, constant-voltage output, and circuit protection to reduce issues caused by unstable input conditions. Custom electrical parameters, housing designs, and application requirements can be supported through OEM and ODM cooperation.

Form Drawing

Product Specification

Model V6E-075B012 V6E-075B024 V6E-075B036 V6E-100B012
Power (W) 75 75 75 100
Output Voltage (Vdc) 12 24 36 12
Output Current Range (A) 0~6.25 0~3.20 0~2.10 0~8.34
Typical Efficiency 86.00% 88.00% 90.00% 89.00%
Typical Power Factor 0.99 0.98 0.98 0.97
Dimensions (L x W x H) mm 136*67*37 136*67*37 136*67*37 148*67*37



Model V6E-100B024 V6E-100B036 V6E-150B012 V6E-150B024
Power (W) 100 100 150 150
Output Voltage (Vdc) 24 36 12 24
Output Current Range (A) 0~4.20 0~2.80 0~12.50 0~6.30
Typical Efficiency 89.00% 90.00% 92.00% 93.00%
Typical Power Factor 0.97 0.97 0.97 0.97
Dimensions (L x W x H) mm 148*67*37 148*67*37 163*67*37 163*67*37



Model V6E-150B036 V6E-150B048 V6E-200B024 V6E-200B036
Power (W) 150 150 200 200
Output Voltage (Vdc) 36 48 24 36
Output Current Range (A) 0~4.17 0~3.12 0~8.40 0~5.60
Typical Efficiency 93.00% 93.00% 93.00% 93.00%
Typical Power Factor 0.97 0.97 0.98 0.98
Dimensions (L x W x H) mm 163*67*37 163*67*37 176*67*37 176*67*37



Model V6E-200B048 V6E-240B024 V6E-240B036 V6E-320B012
Power (W) 200 240 240 320
Output Voltage (Vdc) 48 24 36 12
Output Current Range (A) 0~4.17 0~10.00 0~6.70 0~26.70
Typical Efficiency 93.00% 93.00% 93.00% 92.00%
Typical Power Factor 0.97 0.98 0.98 0.98
Dimensions (L x W x H) mm 176*67*37 194*67*37 194*67*37 225*97*42



Model V6E-320B024 V6E-320B048 V6E-350B024
Power (W) 320 320 350
Output Voltage (Vdc) 24 48 24
Output Current Range (A) 0~13.40 0~6.70 0~14.60
Typical Efficiency 93.00% 93.50% 93.00%
Typical Power Factor 0.97 0.97 0.98
Dimensions (L x W x H) mm 225*97*42 225*97*42 225*97*42



Model V6E-350B036 V6E-350B048 V6E-400B024
Power (W) 350 350 400
Output Voltage (Vdc) 36 48 24
Output Current Range (A) 0~9.80 0~7.30 0~16.70
Typical Efficiency 93.00% 93.50% 93.00%
Typical Power Factor 0.98 0.98 0.98
Dimensions (L x W x H) mm 225*97*42 225*97*42 240*97*42



Model V6E-400B048 V6E-600B024 V6E-600B048
Power (W) 400 600 600
Output Voltage (Vdc) 48 24 48
Output Current Range (A) 0~8.40 (0~12.50)*2 0~12.50
Typical Efficiency 94.00% 93.00% 93.00%
Typical Power Factor 0.98 0.97 0.97
Dimensions (L x W x H) mm 240*97*42 276*144*48 276*144*48
FAQ
  • Q: What product categories do you offer?

    We primarily manufacture outdoor lighting fixtures and aluminum die-casting components.

  • Q: What are your main product categories and most competitive products? What are the annual sales volumes?

    Our core product is street lights, with annual sales of approximately 50,000 units, making it one of our most competitive products in this segment.

  • Q: Is your company positioned as a professional-grade or household-grade product manufacturer? Do you also serve the domestic market?

    We are positioned as a professional-grade product manufacturer, serving both domestic and international markets.

  • Q: What are your main sales markets and their approximate percentage shares? Do you have any major European clients or large retail chain customers? Which major clients do you have in Germany?

    Our current sales are mainly distributed in Central Asia (approximately 50%) and the domestic Chinese market (approximately 30%). Internationally, we collaborate with well-known brands such as Philips, but we have not yet directly entered the EU market and do not currently have any major German retail chain or end customers.

  • Q: If you are not currently in the EU market, do you have plans to enter it? Are you familiar with EU safety standards such as GS, CE, EMC, RoHS, etc.?

    Although we are not yet directly operating in the EU market, we have the intention to enter it and are familiar with relevant safety standards including GS, CE, EMC, and RoHS. We have the technical foundation to meet these requirements.

  • Q: What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

    What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

  • Q: How many owners or shareholders do you have? What is the shareholding structure?

    The company has two shareholders, with shareholding ratios of 60% and 40% respectively.

  • Q: What is your registered capital? In which year did the company begin operating in the lighting products industry?

    The registered capital is RMB 10.8 million. The company has been engaged in aluminum die-casting since 1994 and entered the complete lighting fixture manufacturing sector in 2007.

  • Q: What is the company's land area? How many square meters of factory space are actually in use? How many high-cube containers of finished goods can the warehouse normally accommodate?

    The company covers a land area of 6,667 square meters, with 12,000 square meters of actual usable factory space. Under normal conditions, the finished goods warehouse can accommodate approximately 10 high-cube containers of cargo.

  • Q: Is the factory owned or leased?

    The factory is self-owned property.

  • Q: Have you passed ISO 9001 factory quality system audit?

    Yes, we have obtained ISO 9001 quality management system certification.

  • Q: How many complete assembly lines do you have? How many auxiliary assembly lines? How many packaging lines?

    We currently have 2 complete assembly lines, with auxiliary assembly and packaging processes integrated into the production lines.
