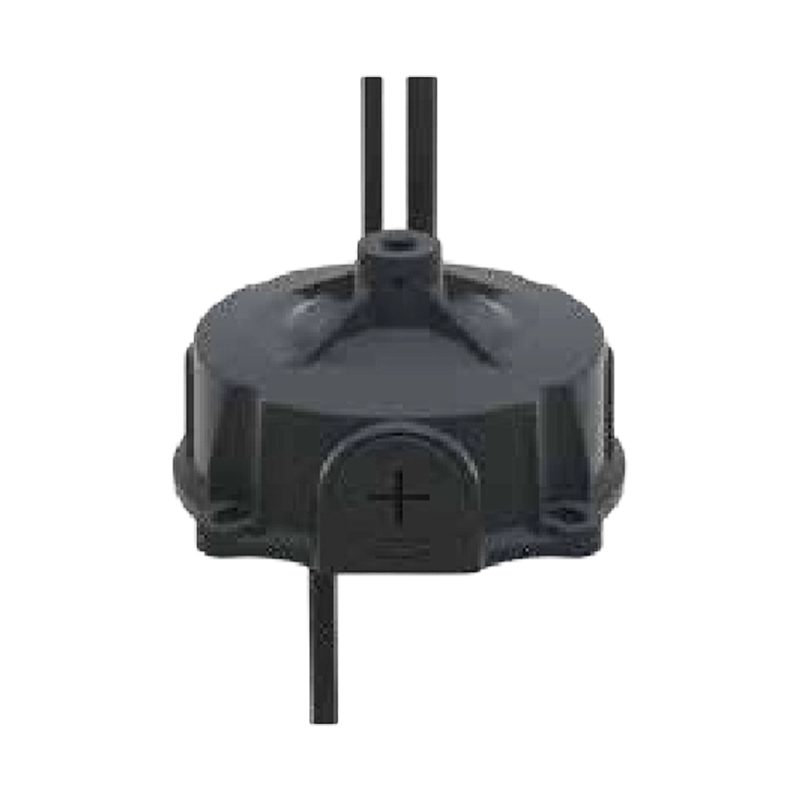

G6T-(III) Weatherproof Non-Isolated LED Driver G6T (III)

Weatherproof Non-Isolated LED Driver G6T (III)

Sealed against harsh outdoor conditions, the Weatherproof Non-Isolated LED Driver G6T-(III) targets industrial lighting installations where dust, moisture, and vibration typically shorten driver lifespan. Core functionality centers on tri-in-one dimming (0-10V, PWM, resistor), giving lighting designers three control options within a single unit rather than forcing them to stock separate SKUs. With IP65 protection and a 5-year warranty, this driver addresses reliability concerns that plague non-isolated designs in tough environments. OEM/ODM customization covers housing color, wattage curves, and connector types.

Form Drawing

Product Specification

Model G6-050Y300ZT(III) G6-100Y300ZT(III) G6-150Y300ZT(III) G6-200Y300ZT(III)
Power (W) 50 100 150 200
Output voltage range (Vdc) 180~300 180~300 180~300 180~300
Adjustable output current range (A) 0.05~0.25 0.10~0.50 0.15~0.74 0.20~0.93
Typical efficiency 95.00% 97.00% 97.00% 97.00%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59 127*59



Model G6-240Y300ZT(III) G6-050V300TE(III) G6-120V300TE(III)
Power (W) 240 50 120
Output voltage range (Vdc) 180~300 180~300 180~300
Adjustable output current range (A) 0.22~1.10 0.13~0.25 0.30~0.56
Typical efficiency 97.00% 95.00% 96.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59



Model G6-150V300TE(III) G6-200V300TE(III) G6-240V300TE(III)
Power (W) 150 200 240
Output voltage range (Vdc) 180~300 180~300 180~300
Adjustable output current range (A) 0.40~0.74 0.50~0.93 0.60~1.10
Typical efficiency 96.00% 96.00% 97.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59
Inquiry Download
