LED Stadium Light
Home / Products / LED Outdoor Lighting / LED Stadium Light / LED Sports Lighting Fixture HS-LQ
Ball-Catching Series LED Sports Lighting Fixture HS-LQ

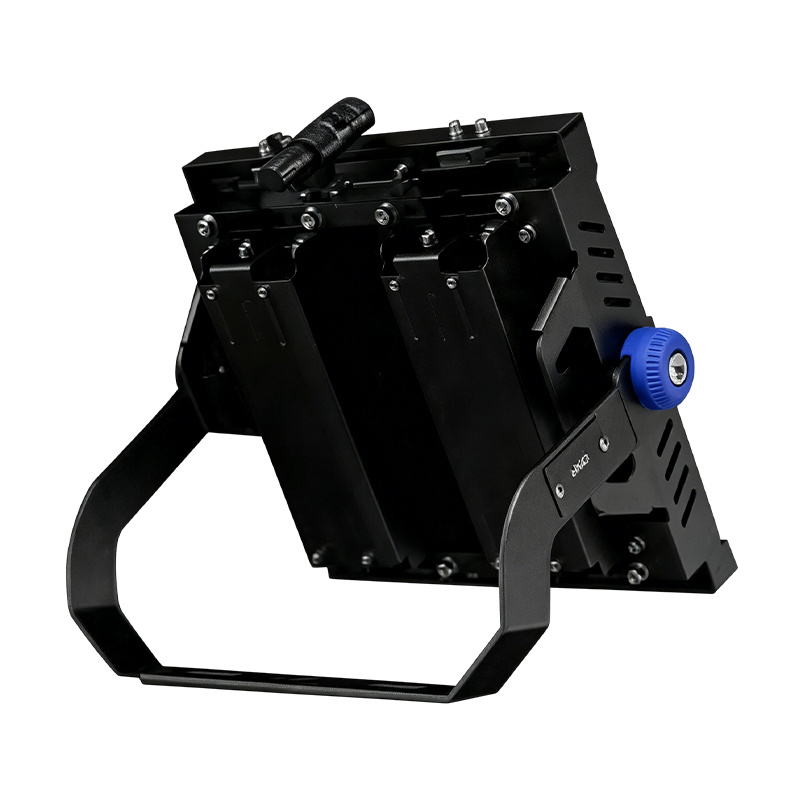

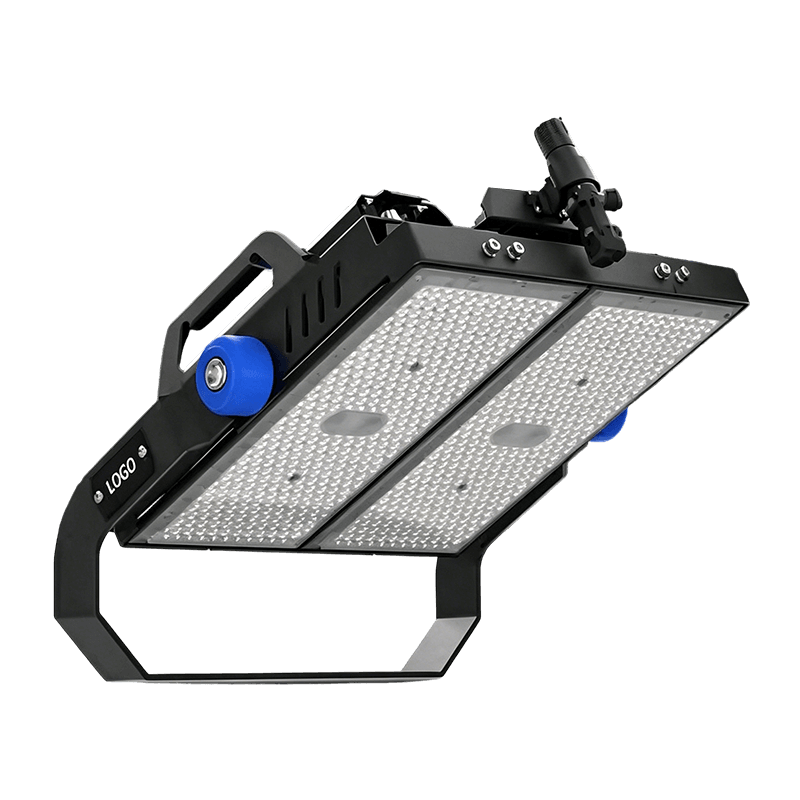

LED Sports Lighting Fixture HS-LQ

LED Sports Lighting Fixture HS-LQ is a sports-oriented lighting product designed for consistent illumination in athletic environments. It is widely used in stadiums, training fields, airports, and large outdoor sports facilities. Its core function is to provide stable lighting with controlled glare and wide coverage for sports performance. Customers purchase it to ensure compliance with sports lighting requirements and improve game visibility. We offer durable materials, flexible beam angles, and stable driver systems. OEM/ODM includes optical adjustment, bracket design, and branding options.

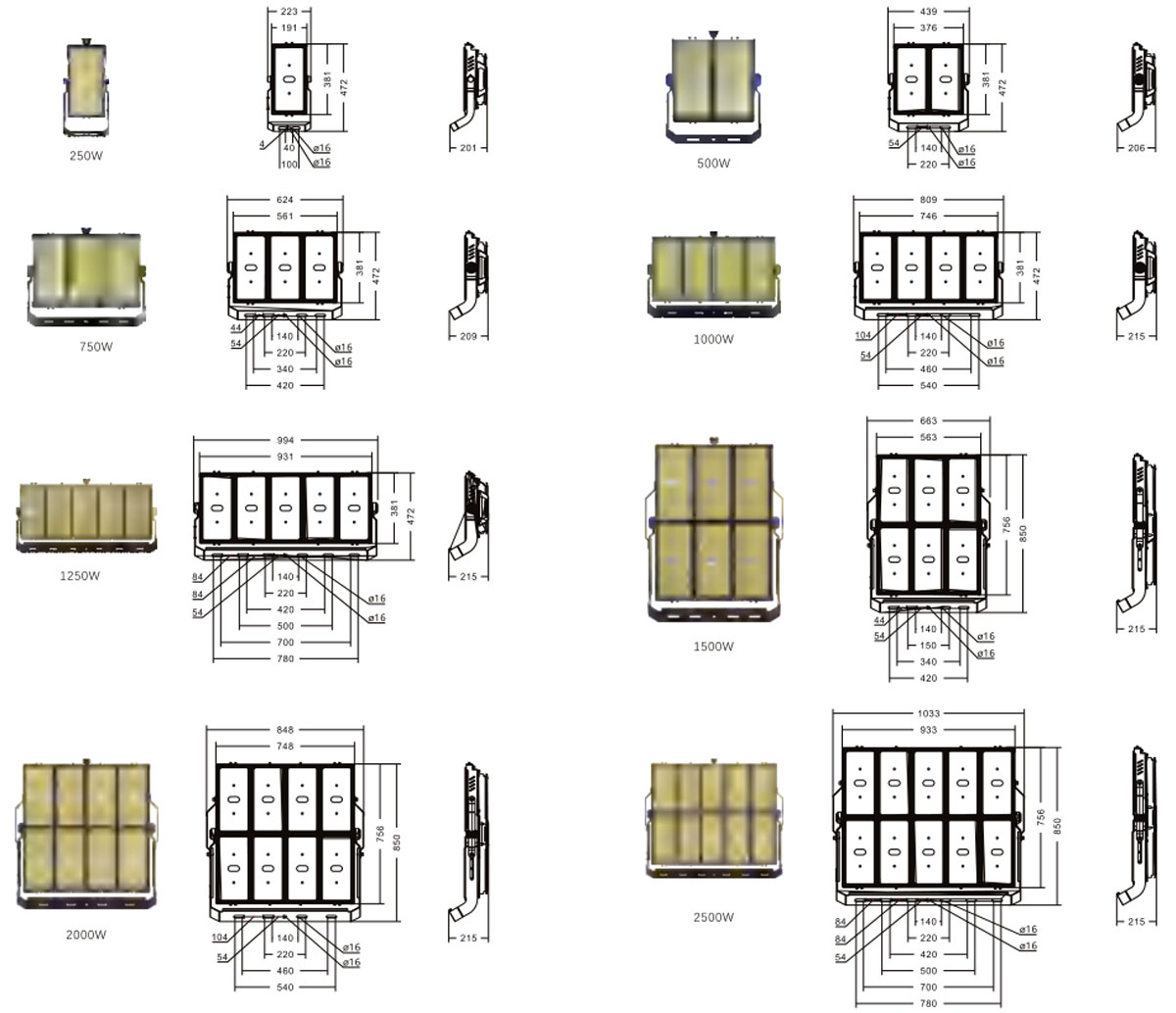

Form Drawing

Product Specification

Input Voltage AC100V-250V50HZ/DC24V
Security level Class I/Class III
LED Brand
Drive electric Brand-name power supply
Control Mode Switch control/PMX512 control



Product Model Product Power Weight Product Dimensions Packaging Dimensions Lens Angle
Lanyun Series 250W 6.28KG 223x472x201mm 330x430x170mm 15°/30°/45°/60°/90°/120
Lanyun Series 500W 11.2KG 439x472x206mm 520x485x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 750W 15.7KG 624x472x209mm 710x485x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 1000W 20.8KG 809x472x215mm 900x485x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 1250W 25.24KG 994x472x215mm 1090x485x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 1500W 31.4KG 865x692x189mm 710x906x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 2000W 40.2KG 865x882x189mm 900x906x180mm 15°/30°/45°/60°/90°/120
Lanyun Series 2500W 49KG 865x1072x189mm 1090x906x180mm 15°/30°/45°/60°/90°/120
Inquiry Download
Related Products
search
We Will Periodically Update Industry Trends.
FAQ
  • Q: What product categories do you offer?

    We primarily manufacture outdoor lighting fixtures and aluminum die-casting components.

  • Q: What are your main product categories and most competitive products? What are the annual sales volumes?

    Our core product is street lights, with annual sales of approximately 50,000 units, making it one of our most competitive products in this segment.

  • Q: Is your company positioned as a professional-grade or household-grade product manufacturer? Do you also serve the domestic market?

    We are positioned as a professional-grade product manufacturer, serving both domestic and international markets.

  • Q: What are your main sales markets and their approximate percentage shares? Do you have any major European clients or large retail chain customers? Which major clients do you have in Germany?

    Our current sales are mainly distributed in Central Asia (approximately 50%) and the domestic Chinese market (approximately 30%). Internationally, we collaborate with well-known brands such as Philips, but we have not yet directly entered the EU market and do not currently have any major German retail chain or end customers.

  • Q: If you are not currently in the EU market, do you have plans to enter it? Are you familiar with EU safety standards such as GS, CE, EMC, RoHS, etc.?

    Although we are not yet directly operating in the EU market, we have the intention to enter it and are familiar with relevant safety standards including GS, CE, EMC, and RoHS. We have the technical foundation to meet these requirements.

  • Q: What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

    What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

  • Q: How many owners or shareholders do you have? What is the shareholding structure?

    The company has two shareholders, with shareholding ratios of 60% and 40% respectively.

  • Q: What is your registered capital? In which year did the company begin operating in the lighting products industry?

    The registered capital is RMB 10.8 million. The company has been engaged in aluminum die-casting since 1994 and entered the complete lighting fixture manufacturing sector in 2007.

  • Q: What is the company's land area? How many square meters of factory space are actually in use? How many high-cube containers of finished goods can the warehouse normally accommodate?

    The company covers a land area of 6,667 square meters, with 12,000 square meters of actual usable factory space. Under normal conditions, the finished goods warehouse can accommodate approximately 10 high-cube containers of cargo.

  • Q: Is the factory owned or leased?

    The factory is self-owned property.

  • Q: Have you passed ISO 9001 factory quality system audit?

    Yes, we have obtained ISO 9001 quality management system certification.

  • Q: How many complete assembly lines do you have? How many auxiliary assembly lines? How many packaging lines?

    We currently have 2 complete assembly lines, with auxiliary assembly and packaging processes integrated into the production lines.
