GG-AC-ZD Outdoor Courtyard Light GG-AC-ZD

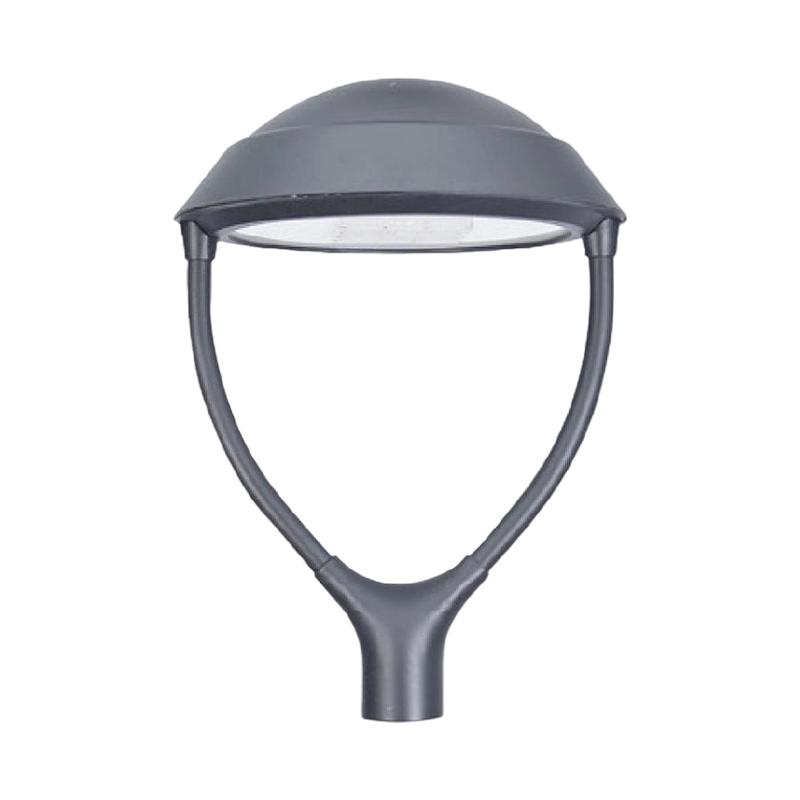

Outdoor Courtyard Light GG-AC-ZD

Outdoor Courtyard Light GG-AC-ZD is a durable courtyard lighting product designed for general outdoor applications. It is widely used in residential courtyards, hotels, gardens, and public outdoor areas. Its core function is to provide stable illumination for safety and nighttime usability. Customers choose it to improve outdoor lighting reliability and reduce maintenance frequency. The structure uses aluminum poles with anti-corrosion powder coating and die-cast aluminum lamp heads for strength and stability. Optical diffusers made of PC/PMMA/PS ensure smooth and uniform lighting, and all screws are 304 stainless steel. OEM/ODM includes structural customization, color options, and performance tuning.

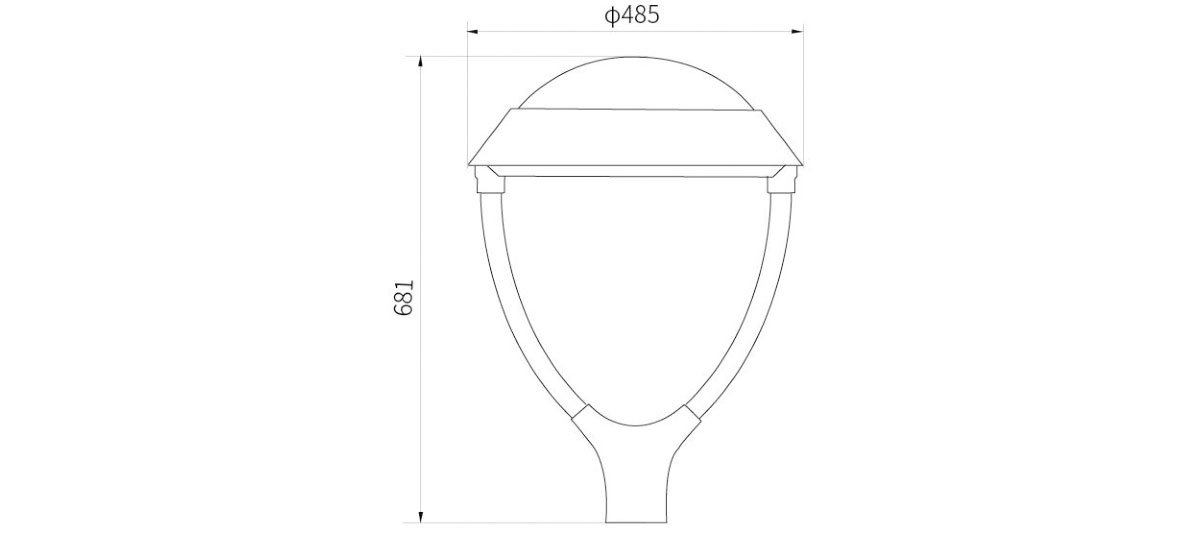

Form Drawing

Product Specification

Model GG-AC-ZD
Rated Power 30W-100W
Input Voltage AC 100-305V
Light Source Type LUMILEDS、CREE
Frequency Range 50/60Hz
Color Temperature 3000K～6500K
Power Factor >0.95
Color Rendering Index ≥Ra70
Operating Temperature -35~70°C
Operating Humidity 10~90%
LED Chip Luminous Efficacy 180lm/W
LED Lifespan >50000H
Waterproof Rating IP65
Installation Pipe Diameter Φ45mm
Installation Height 3~5m
Luminaire Dimensions Φ485×681mm
