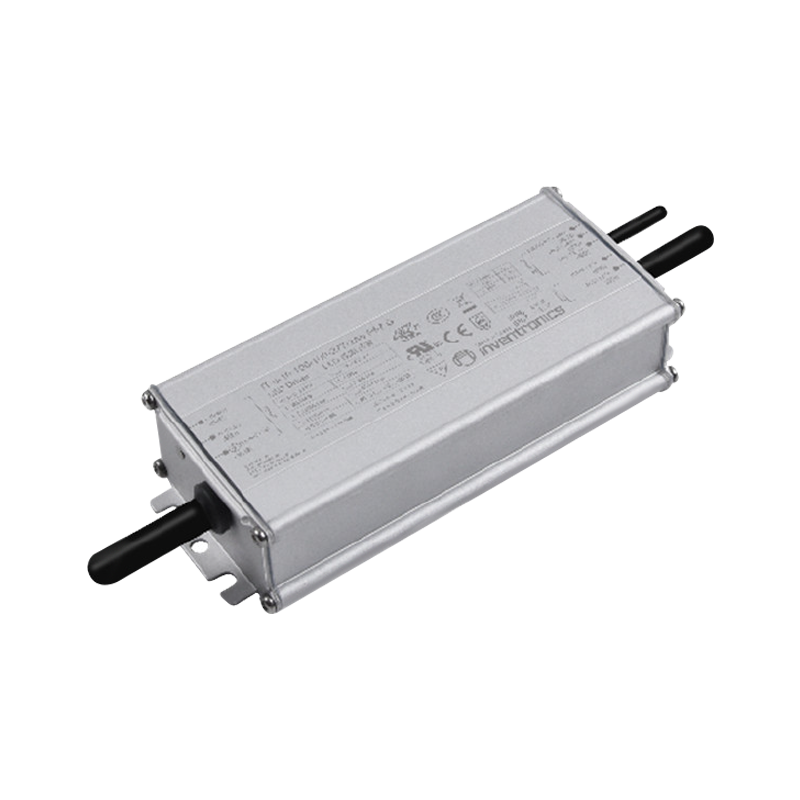

100W Programmable Outdoor LED Driver IT 0-10 100/100-277 P67

100W Programmable Outdoor LED Driver IT 0-10 100/100-277 P67 is a 100W programmable driver product featuring IP66 and IP67 protection ratings, with input voltage covering 90-305Vac and a high power factor. It's designed specifically for road and area lighting applications, including Class I fixtures and Class I, Division 2 hazardous locations. The product's core strength lies in its compact housing design, high efficiency, and effective heat dissipation, which together boost reliability and extend service life — addressing a common concern for buyers deploying drivers in continuous-operation, hard-to-access installations.

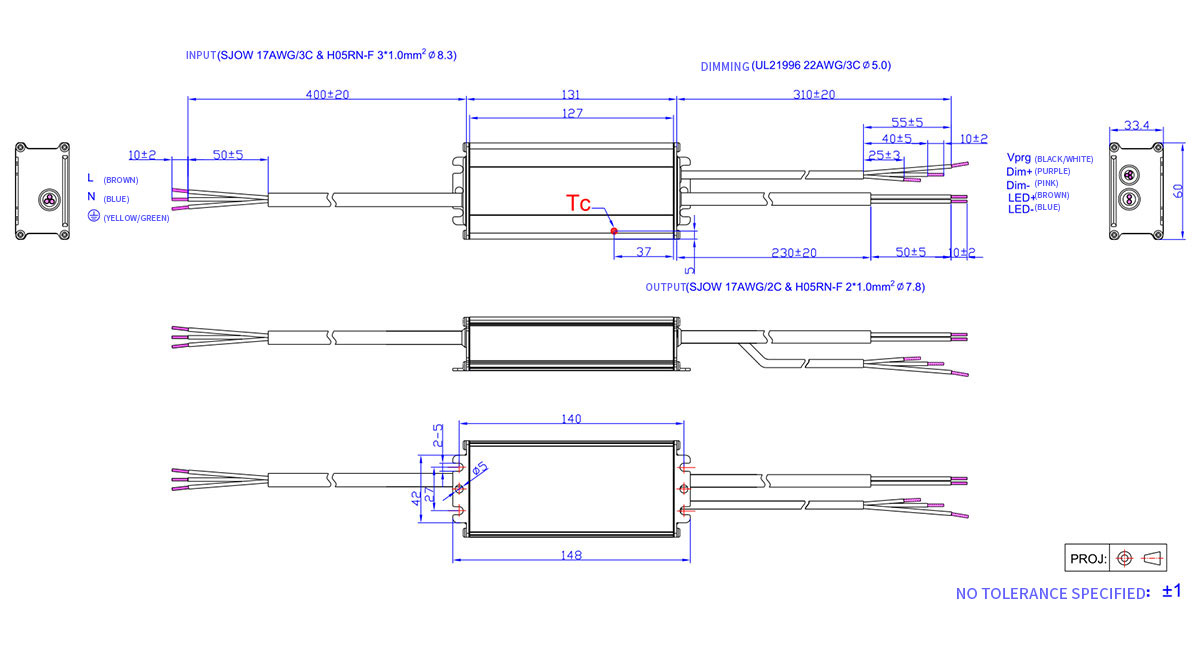

Form Drawing

1-2-B4bq

Product Specification

Model IT 0-10 100/100-277/1A05 P67 y IT 0-10 100/100-277/2A8 P67 y
Adjustable Output Current Range 70-1050 mA 175-2800 mA
Full-Power Output Current Range 700-1050 mA 1750-2800 mA
Minimum Output Current 700mA 2100 mA
Rated Output Voltage Range 48-143 VDC 17-54 VDC
Maximum Output Power 100W 96W
Efficiency 92.50% 91.50%
Power Factor, 120 Vac 0.99 0.99
Power Factor, 230 Vac 0.96 0.96
Dimensions (L x W x H) 131x60x33.4mm 131x60x33.4mm
Dimensions with Mounting Ears 148x60x33.4mm 148x60x33.4mm
IP Rating IP66/IP67 IP66/IP67
Net Weight 562.5 g 562.5 g
