GZD-XQD-3020/3020D Outdoor LED Wall Washer GZD-XQD-3020/3020D

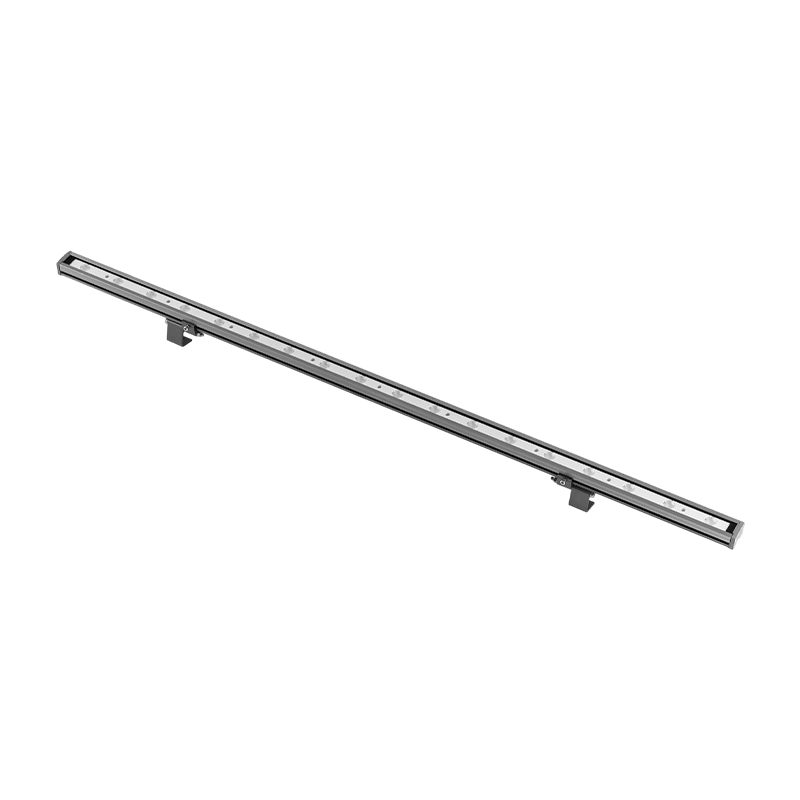

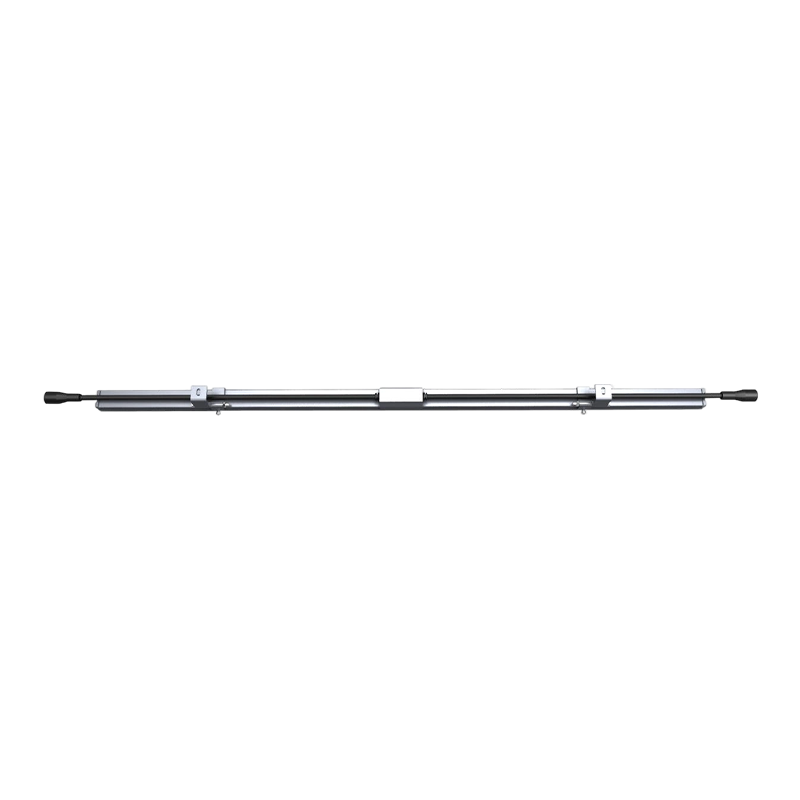

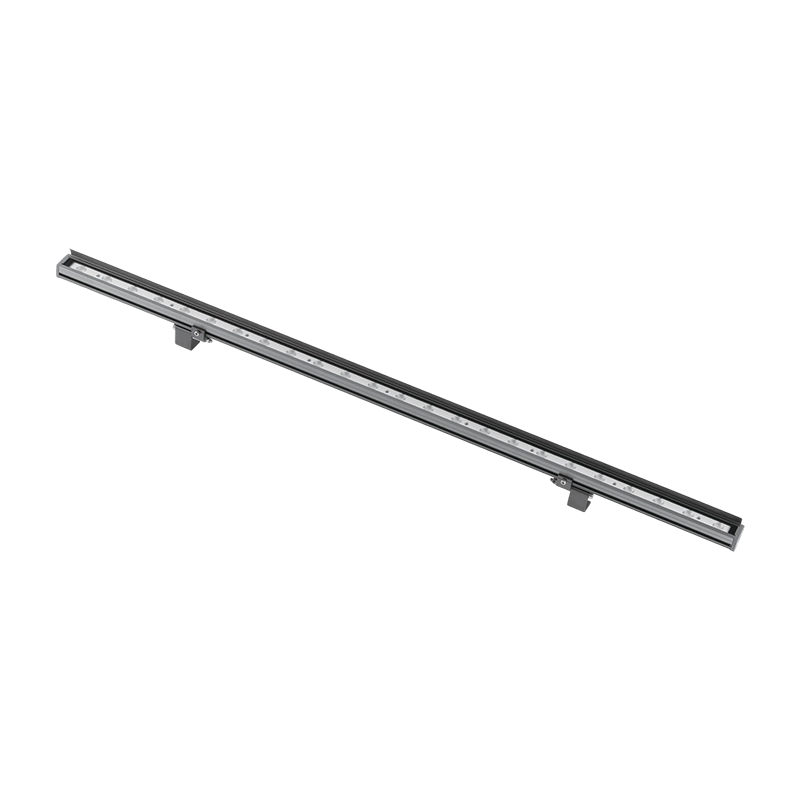

Outdoor LED Wall Washer GZD-XQD-3020/3020D

Outdoor LED Wall Washer GZD-XQD-3020/3020D is a linear outdoor architectural lighting fixture designed for façade illumination and exterior wall highlighting. It is widely used in commercial buildings, hotels, bridges, and urban landscape projects. Its core function is to deliver uniform wall grazing light that enhances architectural texture and nighttime visual impact. Customers purchase it to improve building aesthetics, create branding visibility, and achieve dynamic lighting effects. Compared with standard wall lights, it provides better beam consistency and outdoor durability. We ensure high-grade LED chips, stable waterproof sealing, and precision optical design. OEM/ODM support includes beam angle, color temperature, housing length, and control system customization.

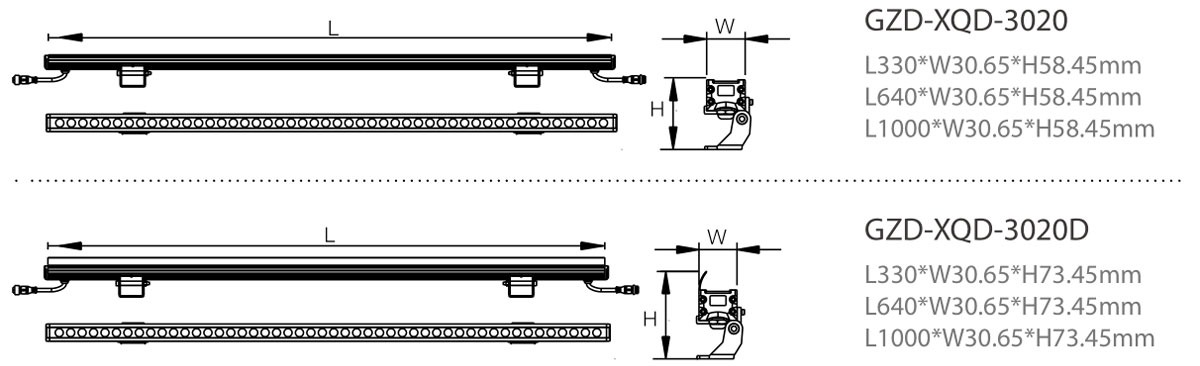

Form Drawing

Product Specification

Item NO. GZD-XQD-3020 GZD-XQD-3020D
Light Source Epileds /Bridgelux /Epistar /Osram /Cree Epileds /Bridgelux /Epistar /Osram /Cree
Input Voltage DC12-24V DC12-24V
Power 12-24W 12-24W
LED Color R/G/BIYW WW R/G/BYW /WW
Beam Angle 10*45°/ 10*65°/ 60°/90°/ 110 10*45°/ 10*65°/60°/90°/ 110
Light Output Ratio(LOR) 80LM/W 80LMW
CCT 1800-6500K 1800-6500K
Control Mode Steady Steady
Environment Temperature -20-45°C -20-45°C
IP Rate IP65 IP65
Inquiry Download
