IT 0-10 200/100-277 P67 200W Ultra-Low Standby Programmable Dimming Driver IT 0-10 200/100-277 P67

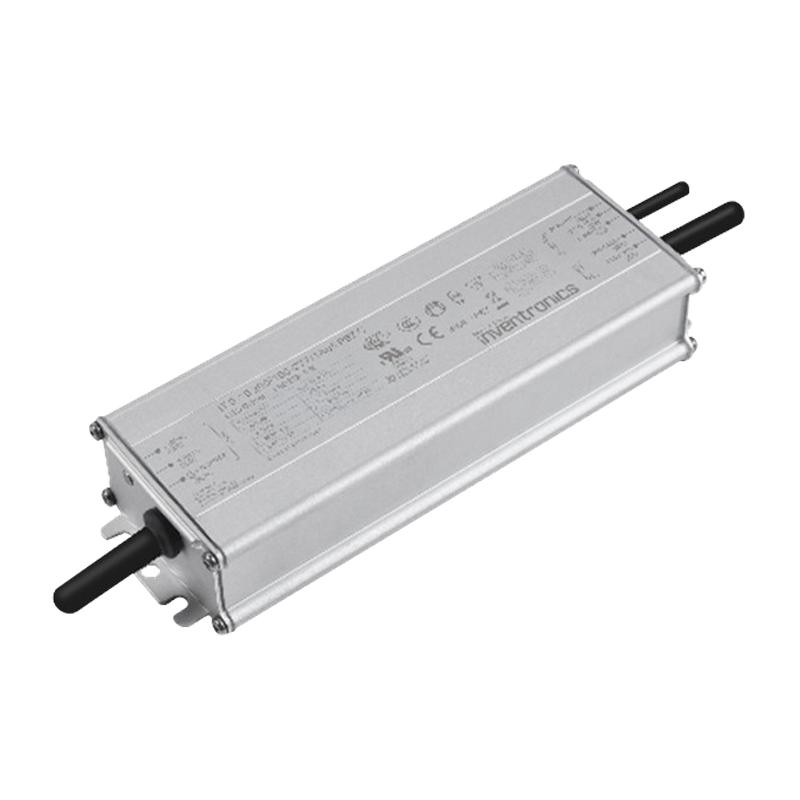

200W Ultra-Low Standby Programmable Dimming Driver IT 0-10 200/100-277 P67

Built for demanding installations, this 200W Ultra-Low Standby Programmable Dimming Driver combines a compact housing with dependable protection. It's applied to Class I, Division 2 hazardous locations, as well as Class I and Class II fixtures, with an IP66/IP67-rated enclosure that withstands dry, damp, and wet environments. Its core function centers on intelligent thermal management: over-temperature protection with automatic recovery once conditions normalize, over-voltage protection that limits output within a defined range, and short-circuit protection that resets automatically without damage. Output power range and beam angle can be customized through OEM/ODM services to match specific project requirements.

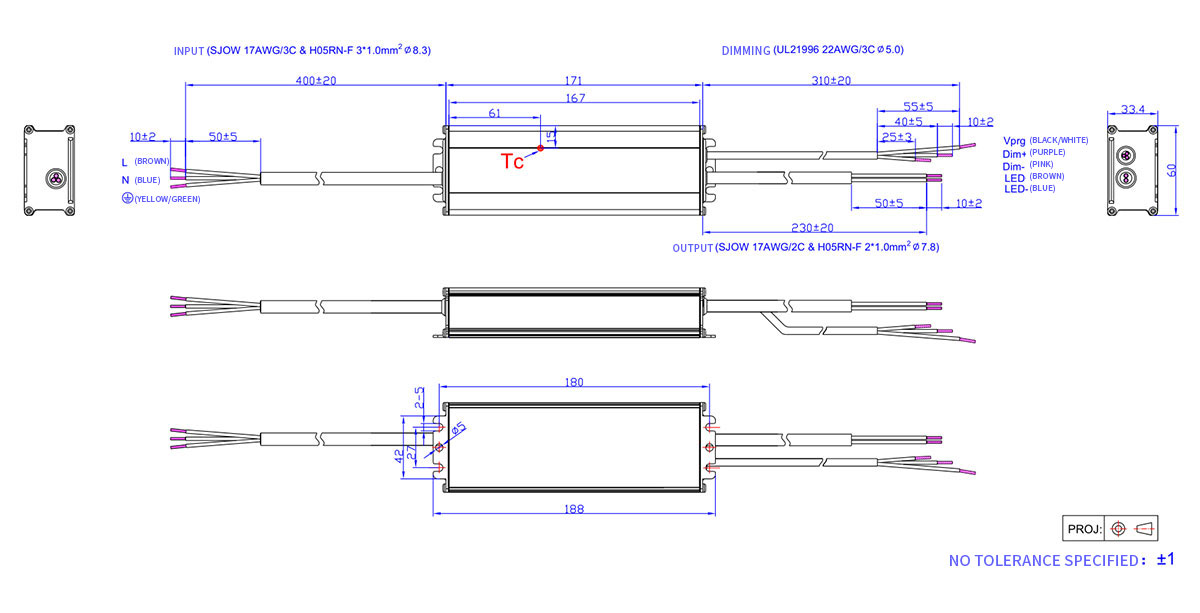

Form Drawing

3-3-fz4P

Product Specification

Specification IT 0-10 200/100-277/A07 P67 y IT 0-10 200/100-277/1A05 P67 y IT 0-10 200/100-277/5A6 P67 y
Adjustable Output Current Range (mA) 53-700 70-1050 350-5600
Full Power Output Current Range (mA) 530-700 700-1050 3500-5600
Output Current Foldback Value (mA) 530 700 4200
Rated Output Voltage Range (Vdc) 142-378 95-286 18-57
Maximum Output Power (W) 200 200 200
Efficiency 94.00% 94.00% 94.00%
Power Factor 入 at 120Vac 0.99 0.99 0.99
Power Factor 入 at 230Vac 0.96 0.96 0.96
