X6E-G 3-in-1 Dimming Programmable Smart Driver X6E-G

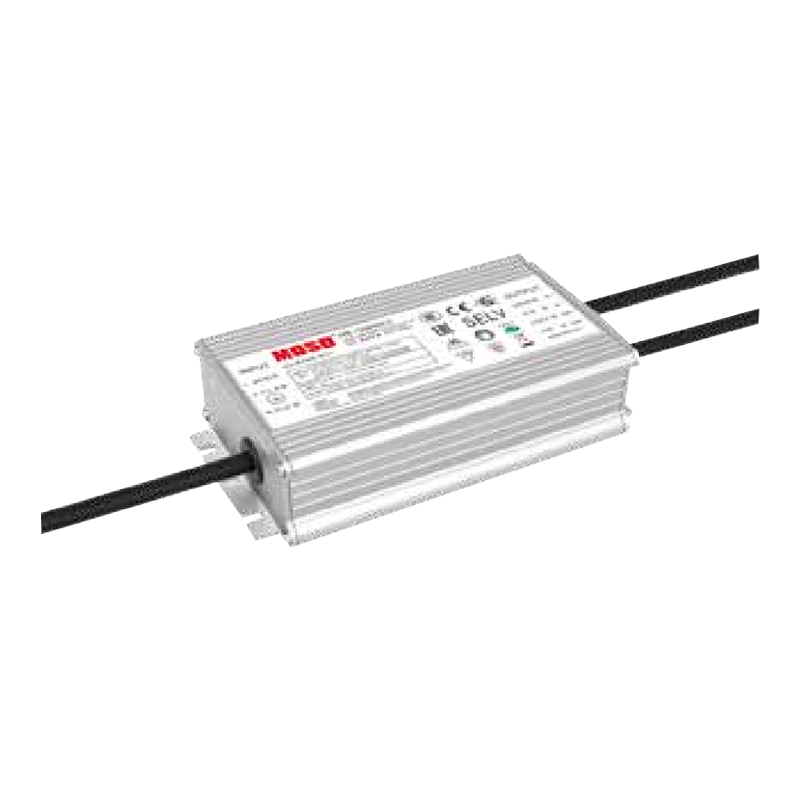

3-in-1 Dimming Programmable Smart Driver X6E-G

The 3-in-1 Dimming Programmable Smart Driver X6E-G is a versatile LED driver built to standardize control across mixed fixture types in road and industrial lighting projects. It is widely applied in municipal road lighting and industrial lighting installations. Its core function is delivering isolated constant-power output from 26W to 320W with built-in three-in-1 dimming (0/1-10V, PWM, timer), so installers can cover multiple projects with one driver family.

Customers choosing this driver are mainly looking to cut the cost and complexity of managing multiple driver types, while gaining reliable, field-configurable performance. Certifications span CE, CB, CQC, SAA, CCC, and EAC, backed by a 5-year warranty.

Form Drawing

Product Specification

Model X6E-026M056-G X6E-040M056-G X6E-050M056-G X6E-050M084-G
Power (W) 26 40 50 50
Output voltage range (Vdc) 28~56 28~56 28~56 42～84
Adjustable full-power current range (A) 0.46～0.75 0.72~1.15 0.90～1.50 0.60～1.05
Default output 28～38V/0.70A 28～56V/0.70A 28～56V/0.70A 42～71V/0.70A
Typical efficiency 0.86 0.88 0.88 0.89
Typical power factor 0.95 0.97 0.97 0.97
Dimensions (L×W×H) mm 105*65*32 105*65*32 118*65*32 118*65*32



Model X6E-060M056-G X6E-060M086-G X6E-075Y056-G X6E-075Y075-G
Power (W) 60 60 75 75
Output voltage range (Vdc) 28~56 43~86 28~56 42~75
Adjustable full-power current range (A) 1.07～1.72 0.70～1.10 1.35~2.15 1.00~1.50
Default output 28~48V/1.25A 42~86V/0.70A 28~36V/1.55A 42~50V/1.50A
Typical efficiency 0.89 0.89 0.91 0.91
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 118*65*32 118*65*32 132*68*35 132*68*35



Model X6E-075Y108-G X6E-100Y056-G X6E-100Y100-G X6E-100Y143-G
Power (W) 75 100 100 100
Output voltage range (Vdc) 54～108 28~56 56~100 72~143
Adjustable full-power current range (A) 0.70～1.05 1.78~2.85 1.00～1.50 0.70～1.05
Default output 54~72V/1.05A 28~49V/2.05A 56～67V/1.50A 72～96V/1.05A
Typical efficiency 0.92 0.91 0.92 0.92
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 132*68*35 138*68*35 138*68*35 138*68*35



Model X6E-150Y056-G X6E-150Y150-G X6E-150Y214-G X6E-200Y056-G
Power (W) 150 150 150 200
Output voltage range (Vdc) 28~56 85~150 115~214 30~56
Adjustable full-power current range (A) 2.70~4.30 1.00～1.50 0.70～1.05 3.57～5.70
Default output 28~32V/3.10A 85～100V/1.50A 115～143V/1.05A 30~48V/4.15A
Typical efficiency 0.925 0.935 0.935 0.93
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 158*68*37 158*68*37 158*68*37 178*68*37



Model X6E-200Y200-G X6E-200Y286-G X6E-240Y056-G X6E-240Y240-G
Power (W) 200 200 240 240
Output voltage range (Vdc) 120～200 156～286 30~56 130～240
Adjustable full-power current range (A) 1.00~1.50 0.70～1.05 4.30~6.85 1.00～1.50
Default output 120～133V/1.50A 156～190V/1.05A 30~48V/5.00A 130～160V/1.50A
Typical efficiency 0.935 0.935 0.935 0.935
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 178*68*37 178*68*37 194*68*37 194*68*37



Model X6E-240Y343-G X6E-320M056-G X6E-320M457-G
Power (W) 240 320 320
Output voltage range (Vdc) 171～343 28~56 228~457
Adjustable full-power current range (A) 0.70～1.05 5.71~7.50 0.70～1.05
Default output 171～228V/1.05A 28~56V/5.0A 228～457V/0.7A
Typical efficiency 0.935 0.94 0.95
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 194*68*37 244*78*42 244*78*42
Inquiry Download
