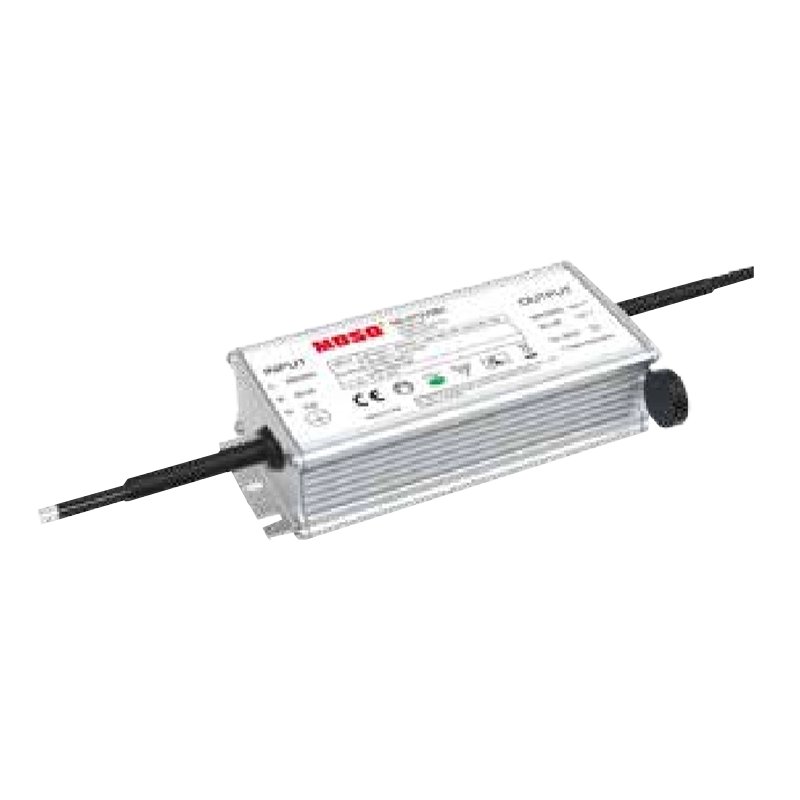

N5 400V Tolerance Non-Isolated LED Driver N5

400V Tolerance Non-Isolated LED Driver N5

400V Tolerance Non-Isolated Driver N5 delivers rugged constant-current power for outdoor and industrial LED fixtures that face unstable grids and harsh environments. Applied to linear high-bay lights, flood lights, wall lights and canopy fixtures. Core function is non-isolated constant-current delivery with potentiometer current adjustment, 6 kV differential and common-mode surge immunity, plus full protection against over-voltage, short-circuit, over-current and over-temperature, all sealed to IP67. These capabilities solve the frequent failure of ordinary drivers under voltage surges, moisture ingress and prolonged thermal stress that shorten fixture life and raise maintenance costs. OEM/ODM support covers custom current set-points, private labeling and mechanical adaptations.

Form Drawing

Product Specification

Model N5-010V260 N5-020V260 N5-030V260 N5-045V260
Power (W) 10 20 30 45
Output voltage range (Vdc) 180~ 260 180~260 180~260 180~260
Adjustable output current range (A) 0.045 0.05~0.10 0.09 ~0.15 0.10 ~0.22
Typical efficiency 92.00% 92.50% 93.00% 94.00%
Typical power factor (PF) 0.95 0.95 0.95 0.95
Dimensions (L × W × H) mm 125*47*26 136*47*26 146*47*26 146*47*26



Model N5-070V260 N5-100V260 N5-150V260
Power (W) 70 100 150
Output voltage range (Vdc) 180~260 180~260 180~260
Adjustable output current range (A) 0.20~0.35 0.25 ~0.50 0.50~0.75
Typical efficiency 95.00% 95.00% 95.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 138*58*33 138*58*33 138*58*33



Model N5-200V260 N5-240V260 N5-300V260
Power (W) 200 240 300
Output voltage range (Vdc) 180~260 180~260 180~260
Adjustable output current range (A) 0.65~0.90 0.75~1.10 1.10~1.50
Typical efficiency 96.00% 96.00% 96.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 141*58*33 141*58*33 181*58*33
