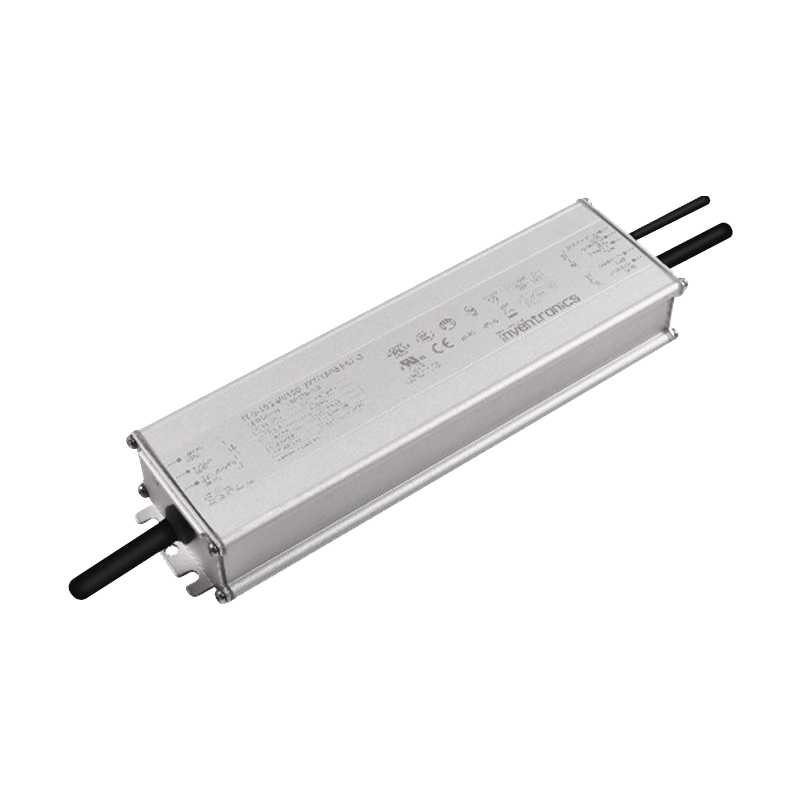

Constant Lumen 240W Programmable Driver IT 0-10 240/100-277 P67

The Constant Lumen 240W Programmable Driver delivers intelligent current management that maintains consistent light output throughout the fixture's lifetime. Applied mainly in road and area lighting, with IP66/IP67 protection for Class I, Division 2 hazardous locations and Class I/II fixtures. Its core function is fully programmable output via Tuner4TRONIC (T4T), offering a wide constant-power current range for precise customization across LED modules — sparing manufacturers from needing separate drivers per module type. OEM/ODM customization available for output power range and dimming configuration.

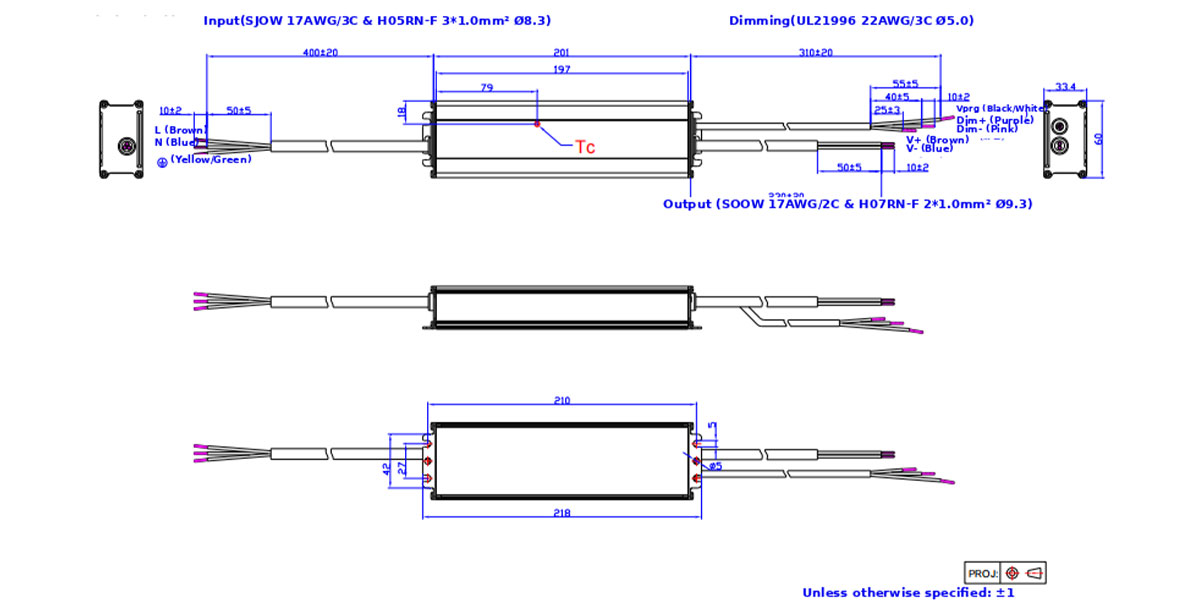

Form Drawing

4-2

Product Specification

Parameter IT 0-10 240/100-277/0A7P67 y IT 0-10 240/100-277/1A05 P67 y IT 0-10 240/100-277/6A7P67 y
Adjustable Output Current Range (mA) 53-700 70-1050 420-6700
Full Power Output Current Range (mA) 530-700 700-1050 4200-6700
Default Output Current (mA) 530 700 4900
Nominal Output Voltage Range (Vdc) 171-453 115-343 18-57
Maximum Output Power (w) 240 240 240
Efficiency 94.50% 94.00% 94.00%
Power Factor λ(120 Vac) 0.99 0.99 0.99
Power Factor λ(230 Vac) 0.96 0.96 0.96
