X6E DALI-2 DALI-2 Timed Dimming LED Driver with NFC X6E

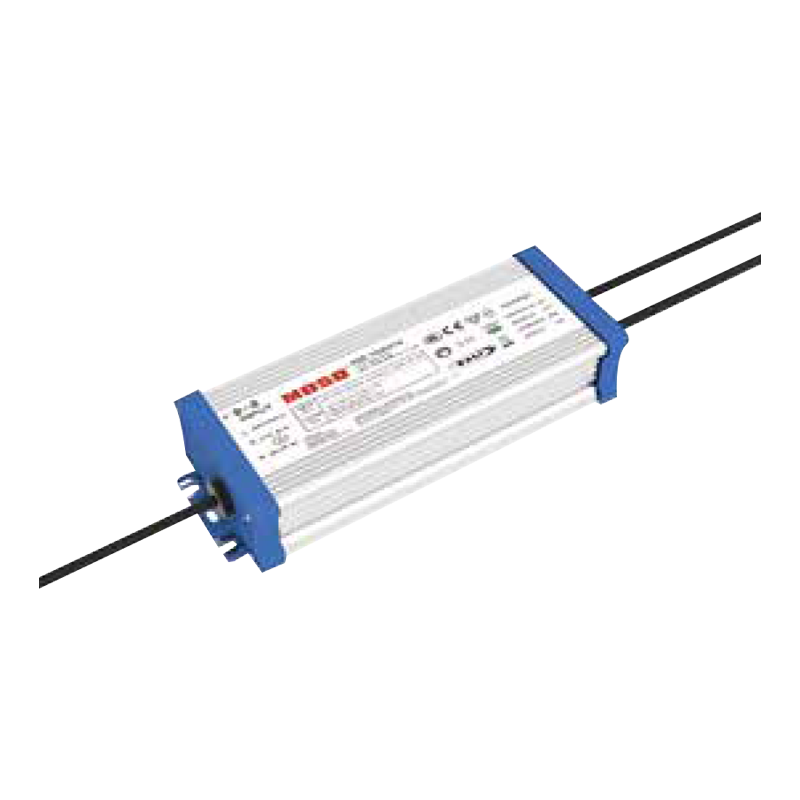

DALI-2 Timed Dimming LED Driver with NFC X6E

The IP67-rated isolated constant-power LED driver X6E DALI-2 that combines NFC programming with DALI-2 control and built-in timed dimming for flexible, intelligent outdoor and industrial lighting.

Designed for road lighting and industrial applications—streetlights, highways, factories and warehouses—it operates across a wide 90–305 Vac input range, delivering full power from 176–305 Vac even under unstable grid conditions. NFC allows quick, contactless current adjustment, while DALI-2 integration and programmable timer functions enable precise lighting schedules without complex external controllers. OEM and ODM customization of parameters, housing, branding and packaging is fully supported.

Form Drawing

Product Specification

Model X6E-075D056 X6E-075D108 X6E-100D056 X6E-100D143
Power (W) 75 75 100 100
Output voltage range (Vdc) 28~56 54～108 28~56 72~143
Adjustable full-power current range (A) 1.35~2.15 0.70～1.05 1.78～ 2.85 0.70~1.05
Default output 28～52V/1.45A 54～108V/0.70A 28~49V/2.05A 72～143V/0.70A
Typical efficiency 88.00% 90.00% 89.00% 90.00%
Typical power factor 0.97 0.96 0.97 0.96
Dimensions (L × W × H) mm 149*72*37 149*72*37 149*72*37 149*72*37



Model X6E-150D056 X6E-150D214 X6E-200D056
Power (W) 150 150 200
Output voltage range (Vdc) 28~56 107～214 28~56
Adjustable full-power current range (A) 2.70~4.30 0.70～1.05 3.57～5.70
Default output 28～48V/3.10A 107～214V/0.70A 28~48V/4.15A
Typical efficiency 89.00% 91.00% 91.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 178*72*39 178*72*39 199*72*39



Model X6E-200D286 X6E-240D056 X6E-240D343
Power (W) 200 240 240
Output voltage range (Vdc) 143～286 28~56 171～343
Adjustable full-power current range (A) 0.70～1.05 4.30～6.85 0.70～1.05
Default output 143～286V/0.70A 28~56V/4.30A 171～ 343V/0.70A
Typical efficiency 92.00% 93.00% 93.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 199*72*39 214*72*39 209*72*39
Inquiry Download
