P6H IP20/IP67 LED Grow Light Driver P6H

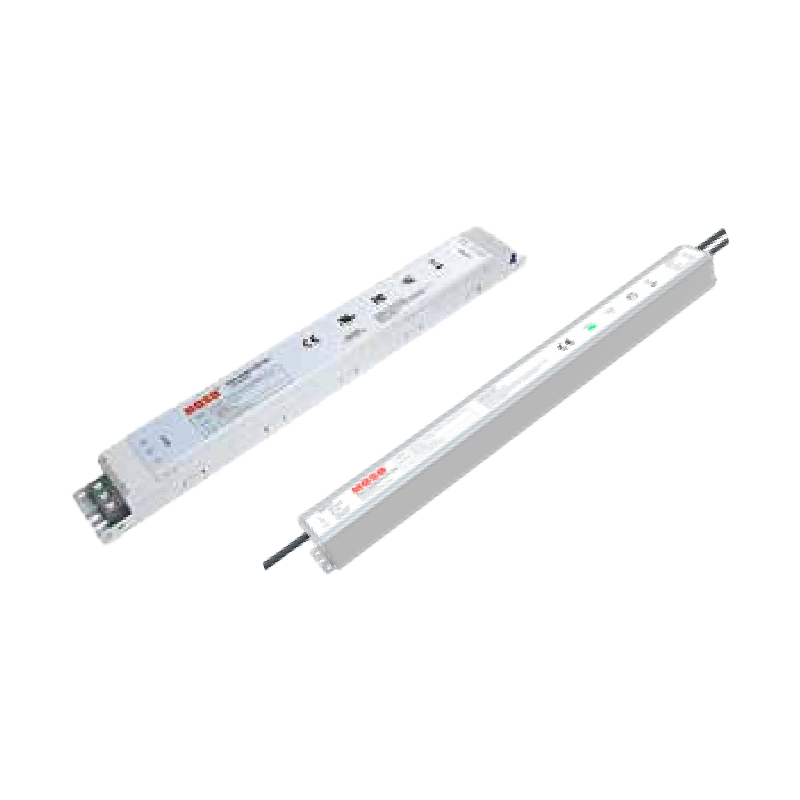

IP20/IP67 LED Grow Light Driver P6H

Plant lighting systems often require flexible dimming, reliable power handling, and protection for different installation environments. The IP20/IP67 LED Grow Light Driver P6H supports 198–440Vac input and is designed for plant lighting and high-power lighting equipment. It is suitable for indoor farms, greenhouse systems, vertical growing facilities, and other controlled lighting applications. Core functions include constant-power drive, 3-in-1 dimming, 0–10V, PWM, resistance dimming, auxiliary 12V output, and dim-off without afterglow. Protection features help address short-circuit, over-voltage, over-temperature, and surge-related concerns. ODM/OEM services support customized specifications and configurations.

Form Drawing

Product Specification

Model P6H-200M360A12H P6H-245M360A12 P6H-360M390A12 P6H-400M500A12H
Power (W) 200 245 360 400
Output Voltage Range (Vdc) 240～360 200～360 200～390 250～500
Adjustable Full-Power Current Range (A) 0.56～0.80 0.68～1.00 0.92～1.20 0.80～1.40
Default Output 240～250V/0.80A 200～245V/1.00A 200～300V/1.20A 250～286V/1.40A
Typical Efficiency 95.00% 94.00% 94.50% 96.00%
Typical Power Factor 0.95 0.99 0.99 0.95
Dimensions (L x W x H) mm 333*43*40 340*43*36 340*43*36 452*43*40



Model P6H-440M550A12H P6H-550M350A12H P6H-660M550A12H
Power (W) 440 550 660
Output Voltage Range (Vdc) 260～550 175～350 260～550
Adjustable Full-Power Current Range (A) 0.80～1.40 1.57～3.00 1.20～2.20
Default Output 260~314V/1.40A 175~204V/2.70A 260~330V/2.00A
Typical Efficiency 96.50% 95.50% 96.50%
Typical Power Factor 0.98 0.95 0.98
Dimensions (L x W x H) mm 465*43*36 452*43*40 465*43*36
Inquiry Download
