Phantom Series High Power LED Stadium Light HS-PH21

High Power LED Stadium Light HS-PH21

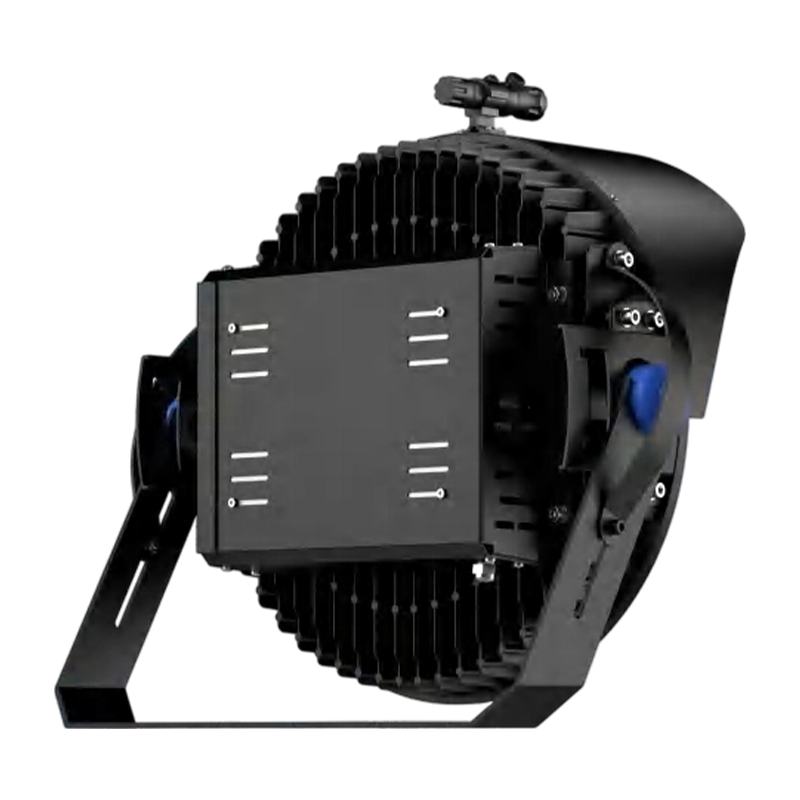

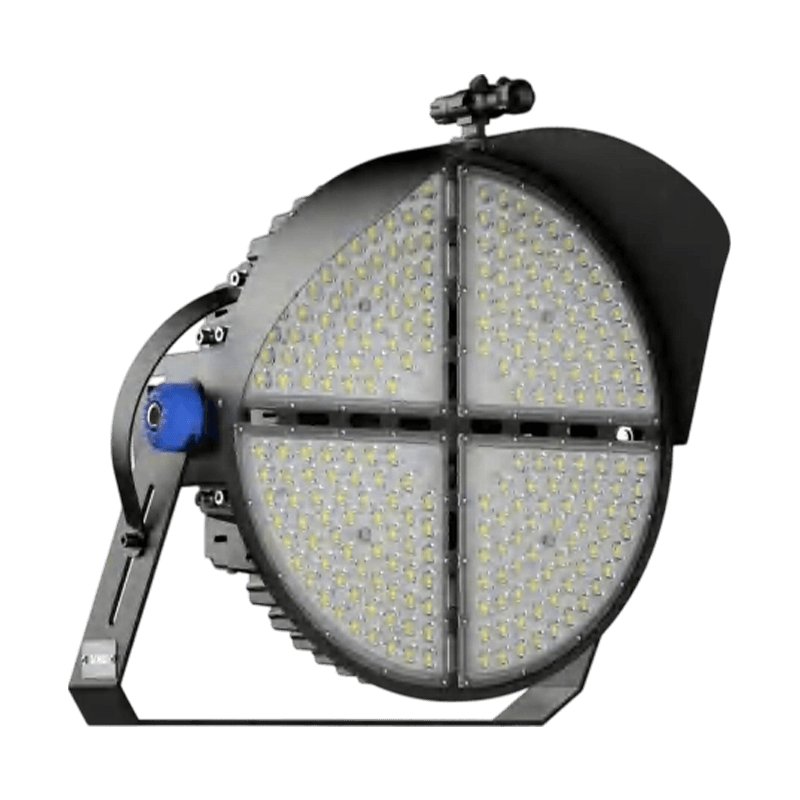

High Power LED Stadium Light HS-PH21 is a high-output sports lighting fixture designed for large-area illumination such as stadiums, airports, and big public squares. It is built with a black powder-coated outer shell for durability and heat resistance. Its core function is to deliver ultra-bright, long-distance lighting with selectable beam angles (10°, 30°, 45°, 60°) for different field requirements. Customers purchase it to achieve professional-level visibility for sports and large events. We provide stable optical performance and strong weather resistance. OEM/ODM includes beam angle configuration, housing structure, mounting system, and branding customization.

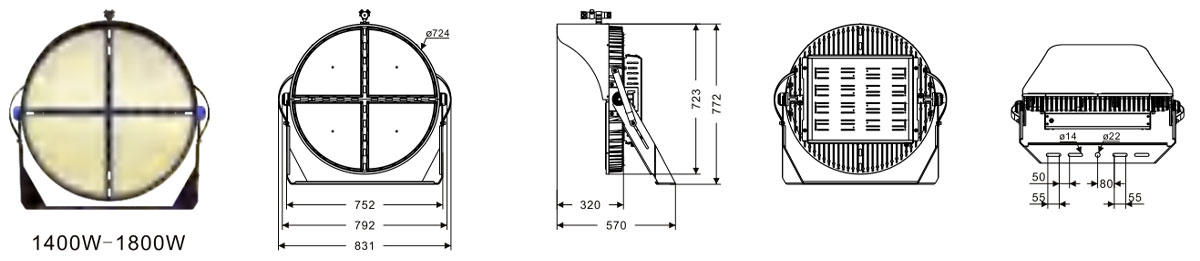

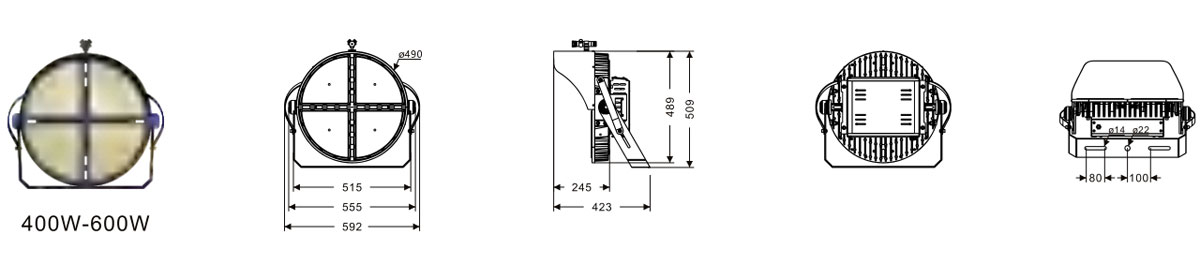

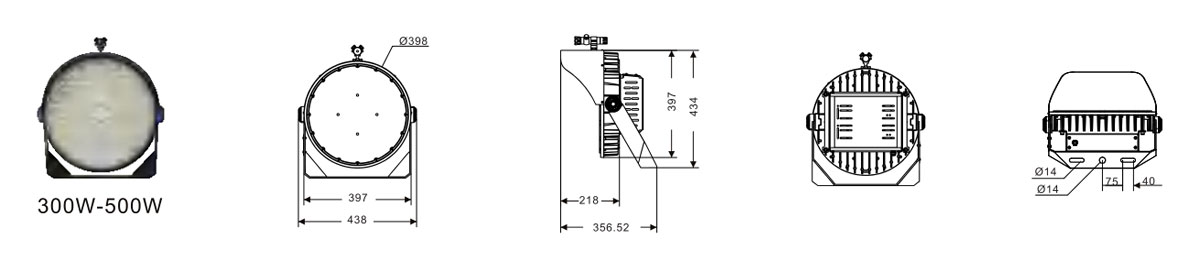

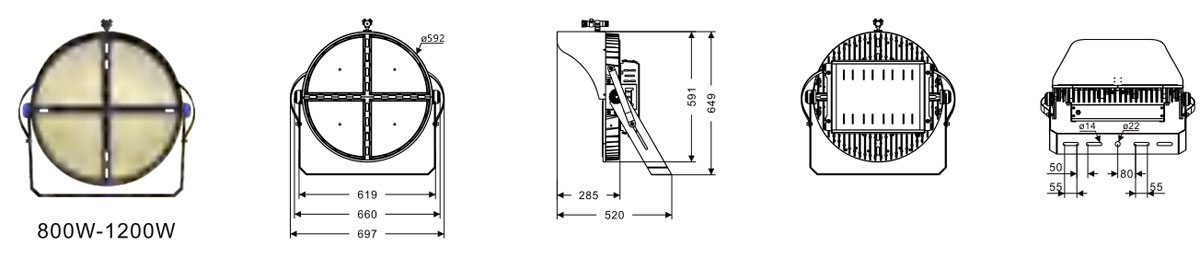

Form Drawing

Product Specification

Input Voltage AC100V-250V50HZ/DC24V
Security level Class I/Class III
LED Brand
Drive electric Brand-name power supply
Control Mode Switch control/PMX512 control



Product Model Product Power Weight Product Dimensions Package Dimensions Lens Angle
Phantom Series 400W–500W–600W 15.2 kg 592 x 509 x 423 mm 615 x 600 x 175 mm 10°/30°/45°/60
Phantom Series 800W–900W–1000W–1200W 22 kg 697 x 649 x 520 mm 767 x 715 x 185 mm 10°/30°/45°/60°
Phantom Series 1400W–1500W–1600W–1700W–1800W 35 kg 831 x 772 x 570 mm 10°/30°/45°/60
