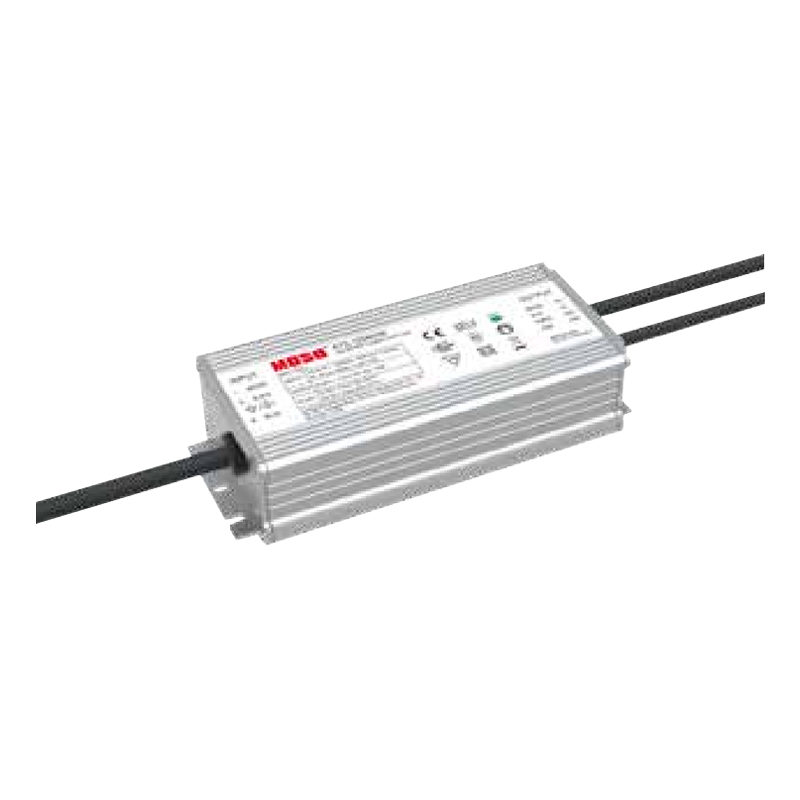

X7S IP67 Programmable Smart Driver X7S

IP67 Programmable Smart Driver X7S

Compatible with both Class I and Class II fixtures, the IP67 Programmable Smart Driver X7S gives specifiers one driver family instead of separate lines for grounded and double-insulated luminaires. It's applied mainly in road lighting and industrial lighting projects.

At its core, the driver runs an isolated constant-power architecture on 90-305Vac input, with offline programming that lets installers set output current ahead of installation rather than adjusting it on the pole. Dimming runs on the same 3-in-1 scheme across the range — 0/1-10V, PWM, and timer-based control — with reverse-logic dimming, light decay compensation, and a working-log function available depending on project needs.

Form Drawing

Product Specification

Model X7S-042M062 X7S-060M062 X7S-075M056 X7S-075M108
Power (W) 42 60 75 75
Output voltage range (Vdc) 32~62 32~62 28~56 54～108
Adjustable full-power current range (A) 0.68 ～1.05 0.97～1.30 1.35~2.15 0.70～1.05
Default output 32～40V/1.05A 32～57V/1.05A 38～48V/1.55A 54～108V/0.70A
Typical efficiency 0.89 0.905 0.905 0.915
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 122*68*35 122*68*35 138*68*35 138*68*35



Model X7S-100M056 X7S-100M143 X7S-150M056 X7S-150M214
Power (W) 100 100 150 150
Output voltage range (Vdc) 28~56 72～143 28~56 107～214
Adjustable full-power current range (A) 1.78～ 2.85 0.70～1.05 2.70~4.30 0.70～1.05
Default output 38～48V/2.05A 75~143V/0.70A 38 ～ 48V/3.10A 107~ 214V/0.70A
Typical efficiency 0.91 0.92 0.925 0.935
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 142*68*37 142*68*37 160*68*37 160*68*37



Model X7S-200M056 X7S-200M286 X7S-240M056 X7S-240M343
Power (W) 200 200 240 240
Output voltage range (Vdc) 28～56 143～286 28~56 171～343
Adjustable full-power current range (A) 3.57～5.70 0.70～1.05 4.30~6.85 0.70～1.05
Default output 38～ 48V/4.15A 143～ 286V/0.70A 38~48V/5.00A 171～ 343V/0.70A
Typical efficiency 0.93 0.94 0.93 0.935
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 182*68*37 182*68*37 194*68*37 194*68*37



Model X7S-320M056 X7S-320M457
Power (W) 320 320
Output voltage range (Vdc) 28~56 228～457
Adjustable full-power current range (A) 5.70～9.14 0.70～1.05
Default output 38～48V/6.70A 228~457V/0.70A
Typical efficiency 0.94 0.95
Typical power factor 0.97 0.97
Dimensions (L × W × H) mm 244*78*42 244*78*42
