X7 Outdoor Athletic Field Light X7

Outdoor Athletic Field Light X7

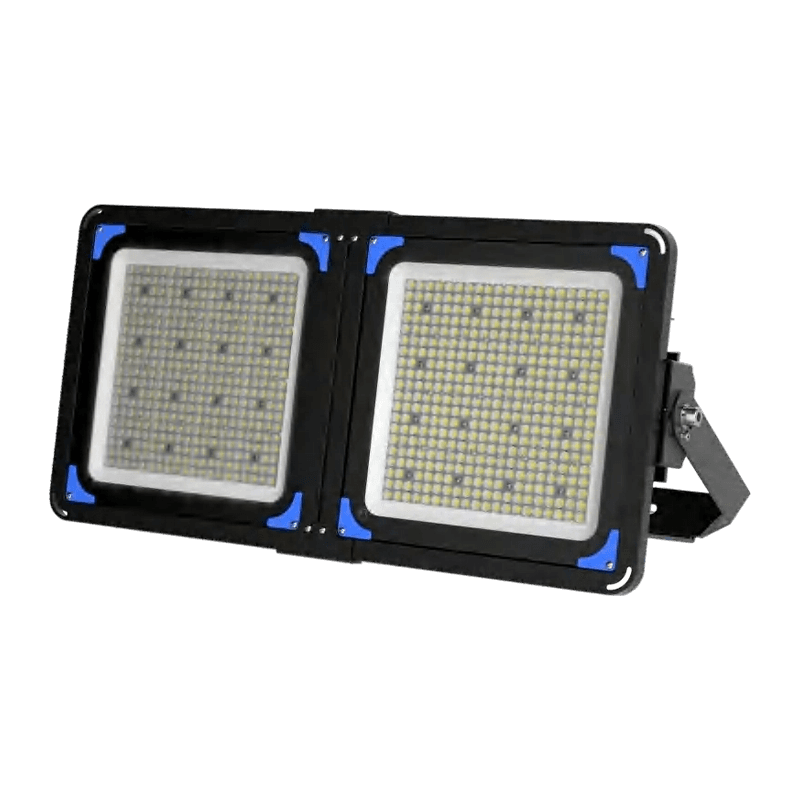

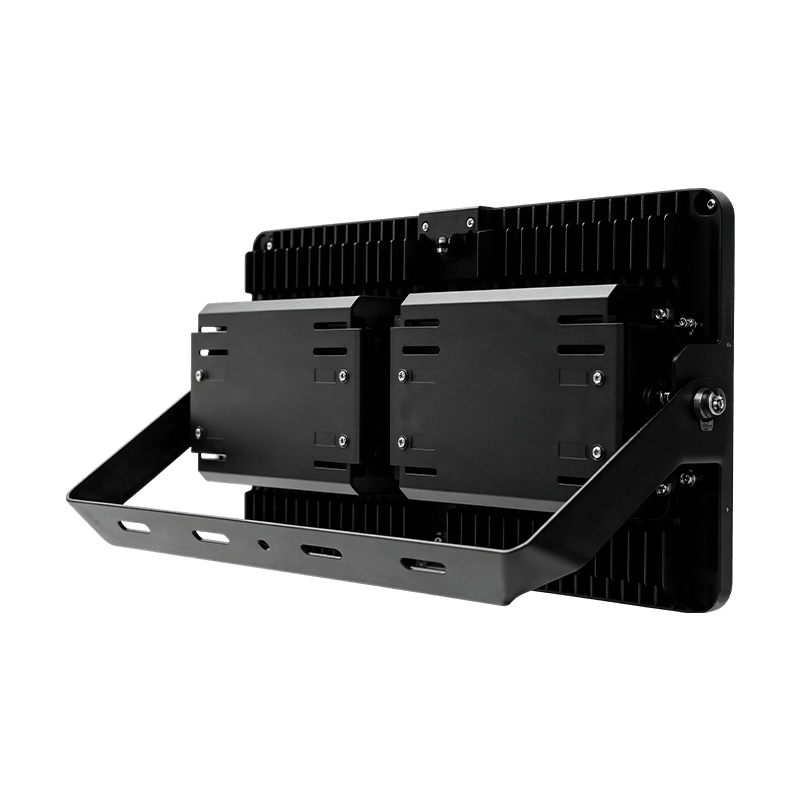

Outdoor Athletic Field Light X7 is a durable lighting product designed for outdoor athletic and multi-purpose sports fields. It is widely used in stadiums, airports, training grounds, and large open venues. Its core function is to provide uniform illumination with adjustable beam angles for different field sizes. Customers choose it to improve sports visibility and ensure safe nighttime use. We provide strong weather resistance and a flexible optical design. OEM/ODM includes beam adjustment, mounting systems, and power options.

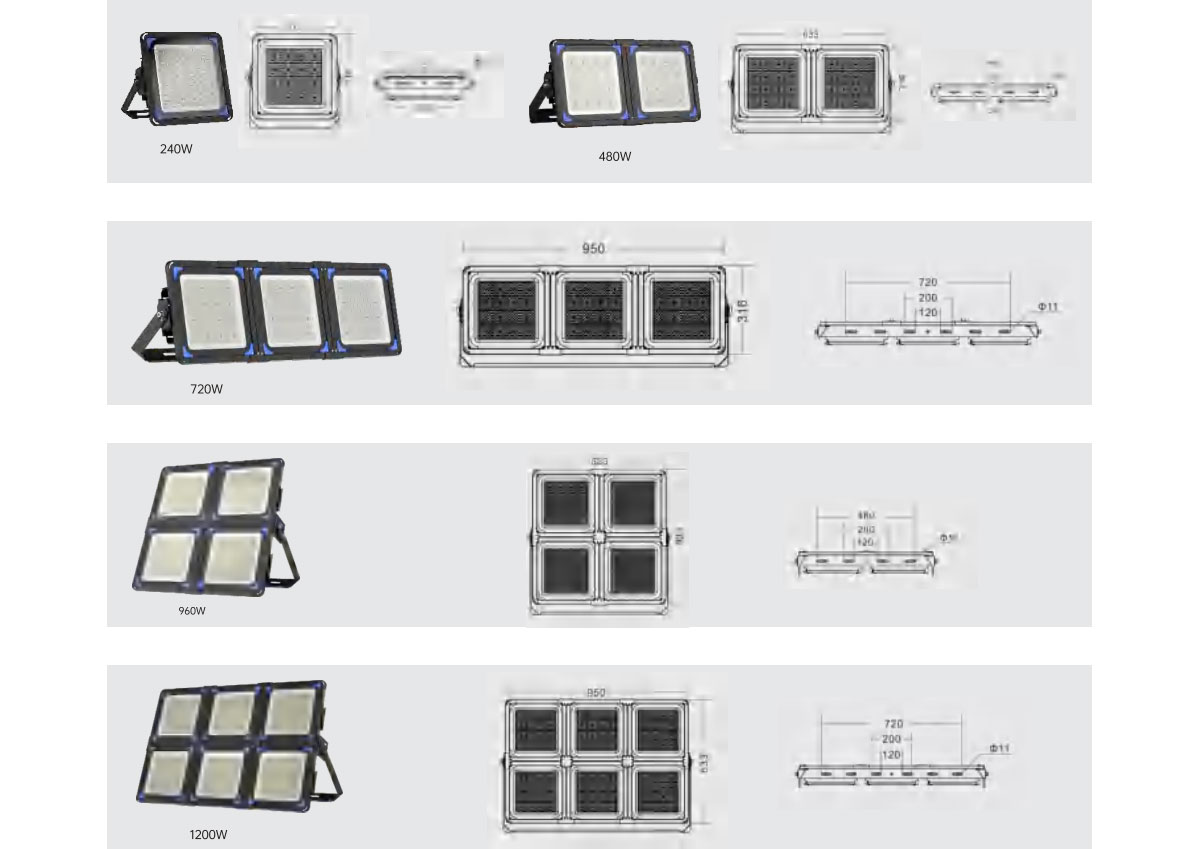

Form Drawing

Product Specification

Input Voltage AC100V-250V50HZ/DC24V
Security level Class I/Class III
LED Brand
Drive electric Brand-name power supply
Control Mode Switch control/PMX512 control





Product Model Product Power Weight Product Dimensions Packaging Dimensions Lens Angle Protection Rating
X7 240W 4.2KG 336x350x97mm 360x400x110mm 25°/55°/90°/120°/T2/T3/T4 IP66
X7 480W 8.4KG 654x360x100mm 690x400x110mm 25°/55°/90°/120°/T2/T3/T4 IP66
X7 720W 12.4KG 970x360x100mm 1010x400x110mm 25°/55°/90°/120°/T2/T3/T4 IP66
X7 960W 16.8KG 656x680x100mm 720x690x110mm 25°/55°/90°/120°/T2/T3/T4 IP66
X7 1200W 25.2KG 972x680x100mm 1010x720x110mm 25°/55°/90°/120°/T2/T3/T4 IP66
FAQ
  • Q: What product categories do you offer?

    We primarily manufacture outdoor lighting fixtures and aluminum die-casting components.

  • Q: What are your main product categories and most competitive products? What are the annual sales volumes?

    Our core product is street lights, with annual sales of approximately 50,000 units, making it one of our most competitive products in this segment.

  • Q: Is your company positioned as a professional-grade or household-grade product manufacturer? Do you also serve the domestic market?

    We are positioned as a professional-grade product manufacturer, serving both domestic and international markets.

  • Q: What are your main sales markets and their approximate percentage shares? Do you have any major European clients or large retail chain customers? Which major clients do you have in Germany?

    Our current sales are mainly distributed in Central Asia (approximately 50%) and the domestic Chinese market (approximately 30%). Internationally, we collaborate with well-known brands such as Philips, but we have not yet directly entered the EU market and do not currently have any major German retail chain or end customers.

  • Q: If you are not currently in the EU market, do you have plans to enter it? Are you familiar with EU safety standards such as GS, CE, EMC, RoHS, etc.?

    Although we are not yet directly operating in the EU market, we have the intention to enter it and are familiar with relevant safety standards including GS, CE, EMC, and RoHS. We have the technical foundation to meet these requirements.

  • Q: What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

    What was your average annual output value over the past two years? What were the total annual sales volumes of complete fixtures in 2022 and 2023 (average per year)?

  • Q: How many owners or shareholders do you have? What is the shareholding structure?

    The company has two shareholders, with shareholding ratios of 60% and 40% respectively.

  • Q: What is your registered capital? In which year did the company begin operating in the lighting products industry?

    The registered capital is RMB 10.8 million. The company has been engaged in aluminum die-casting since 1994 and entered the complete lighting fixture manufacturing sector in 2007.

  • Q: What is the company's land area? How many square meters of factory space are actually in use? How many high-cube containers of finished goods can the warehouse normally accommodate?

    The company covers a land area of 6,667 square meters, with 12,000 square meters of actual usable factory space. Under normal conditions, the finished goods warehouse can accommodate approximately 10 high-cube containers of cargo.

  • Q: Is the factory owned or leased?

    The factory is self-owned property.

  • Q: Have you passed ISO 9001 factory quality system audit?

    Yes, we have obtained ISO 9001 quality management system certification.

  • Q: How many complete assembly lines do you have? How many auxiliary assembly lines? How many packaging lines?

    We currently have 2 complete assembly lines, with auxiliary assembly and packaging processes integrated into the production lines.
