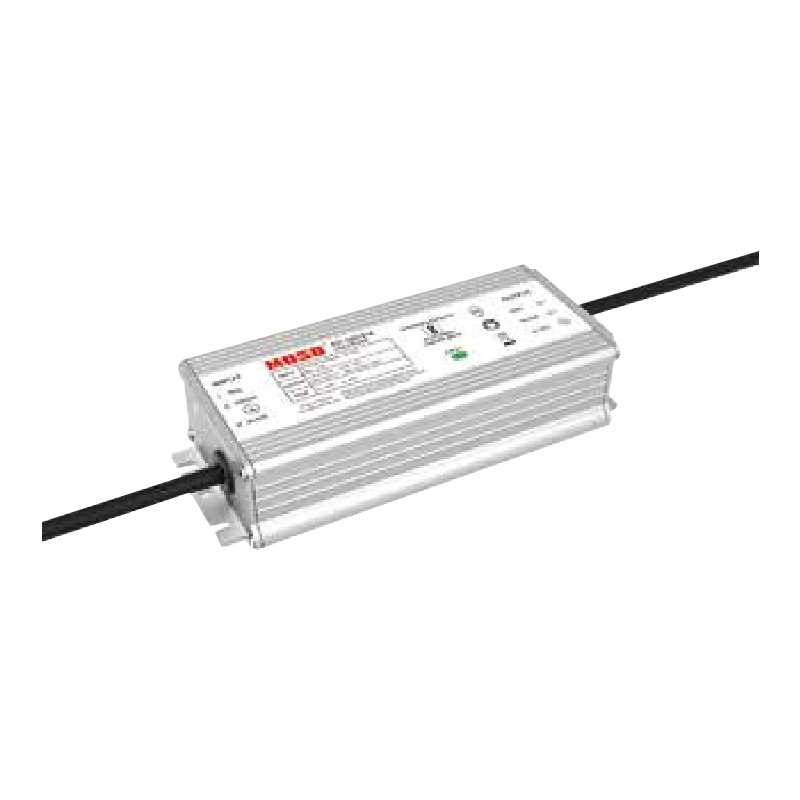

X7I Isolated Smart LED Driver with Selectable Wattage X7I

Isolated Smart LED Driver with Selectable Wattage X7I

Focusing on simple site adjustment, the Selectable Output Wattage Isolated Smart Driver X7I provides reliable power for LED installations. Road lighting and industrial projects represent the key usage areas. Wide input acceptance of 108–305 Vac with full-power operation down to 140 Vac supports varying grid conditions, while isolated constant-power architecture paired with potentiometer-adjustable output current lets installers set wattage directly on site. The design solves mismatched driver power, complicated commissioning and weak surge immunity that often shorten fixture life. Through OEM/ODM services, manufacturers tailor labels, wattage options and mechanical details while retaining proven outdoor performance.

Form Drawing

Product Specification

Model X7I-105V150 X7I-150V214 X7I-200V286 X7I-240V343
Power (W) 105 150 200 240
Output voltage range (Vdc) 75~150 115~214 156~286 171~343
Adjustable full-power current range (A) 0.70~1.05 0.70~1.05 0.70~1.05 0.70~1.05
Default output 75~150V/0.70A 115~214V/0.70A 156~286V/0.70A 171~343V/0.70A
Typical efficiency 90.00% 92.00% 92.50% 92.50%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 134*68*35 163*68*37 176*68*37 189*68*37
Inquiry Download
