LED Programmable Driver
Home / Products / LED Programmable Driver / Low Standby Programmable LED Driver U6M
U6M Low Standby Programmable LED Driver U6M

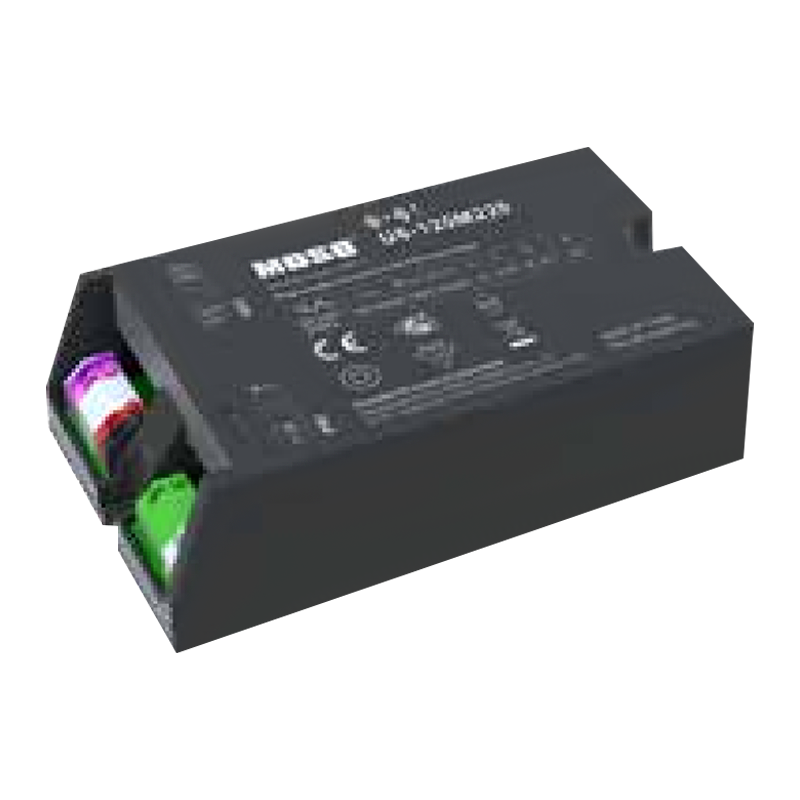

Low Standby Programmable LED Driver U6M

Low Standby Power Standalone Programmable Driver U6M provides efficient offline programming for modern LED luminaires. Applied to road lighting and urban lighting installations, its core functions are isolated constant-power design from 176–264 Vac, NFC-based current adjustment, and three-in-one dimming (0/1-10 V, PWM and time control) while keeping standby consumption under 0.5 W.

The driver solves frequent issues of high idle power, difficult field adjustment and vulnerability to voltage fluctuations in outdoor environments. IP20 rating and 5-to-7-year warranty add long-term confidence. Through OEM/ODM arrangements, producers can output specifications and interface details to accelerate product differentiation and market entry.

Form Drawing

Product Specification

Model U6-026M048 U6-040M060 U6-060M090 U6-080M120
Power (W) 26 40 60 80
Output voltage range (Vdc) 20~48 28~60 38~90 35~120
Adjustable full-power current range (A) 0.55~1.05 0.67~1.05 0.67~1.05 0.67~1.05
Default output 20~48V/0.70A 28~60V/0.70A 38~90V/0.70A 35~115V/0.70A
Typical efficiency 89.00% 90.00% 90.50% 91.50%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 133*77*40 133*77*40 133*77*40 133*77*40



Model U6-120M220 U6-165M270 U6-200M300
Power (W) 120 165 200
Output voltage range (Vdc) 75~220 115~270 143~300
Adjustable full-power current range (A) 0.55~1.05 0.62~1.05 0.67~1.05
Default output 75~220V/0.70A 115~270V/0.70A 143~300V/0.70A
Typical efficiency 92.50% 93.00% 94.00%
Typical power factor 0.98 0.98 0.98
Dimensions (L × W × H) mm 133*77*40 171*101*41 171*101*41
