U5 Multi-Method Programmable Smart LED Driver U5

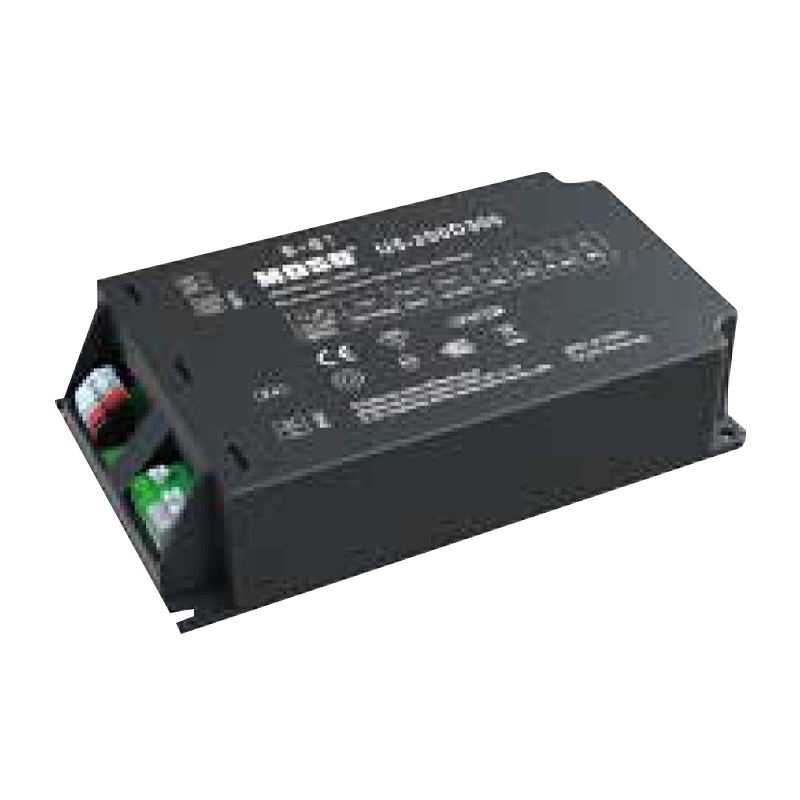

Multi-Method Programmable Smart LED Driver U5

Three Programming Methods Smart LED Driver U5 offers flexible current setting for professional LED systems. Applied to road lighting and urban illumination projects, its core functions are isolated constant-power output across 176–305 Vac, three distinct programming options (NFC for D version, wire programming for M version, potentiometer for V version).

This approach solves common problems of limited adjustability, complex commissioning and inadequate surge protection in outdoor fixtures. Standby power stays below 0.5 W with a 5-to-7-year warranty. Flexible OEM/ODM services allow manufacturers to select versions and current ranges that match specific project needs.

Form Drawing

Product Specification

Model U5-026Y048 U5-040Y060 U5-060Y090 U5-080Y120
Power (W) 26 40 60 80
Output voltage range (Vdc) 20~48 28～60 38～90 35～120
Adjustable full-power current range (A) 0.55～1.05 0.67～1.05 0.67～1.05 0.67～1.05
Default output 20～37V/0.70A 28~57V/0.70A 38～86V/0.70A 35～114V/0.70A
Typical efficiency 89.00% 91.00% 90.00% 90.50%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 133*77*40 133*77*40 133*77*40 133*77*40



Model U5-120Y220 U5-165Y270 U5-200Y300
Power (W) 120 165 200
Output voltage range (Vdc) 75~220 115～270 143～300
Adjustable full-power current range (A) 0.55～1.05 0.62～1.05 0.67～1.05
Default output 75～171V/0.70A 115～ 236V/0.70A 143～286V/0.70A
Typical efficiency 91.50% 94.00% 94.00%
Typical power factor 0.98 0.97 0.97
Dimensions (L × W × H) mm 133*77*40 171*101*41 171*101*41
