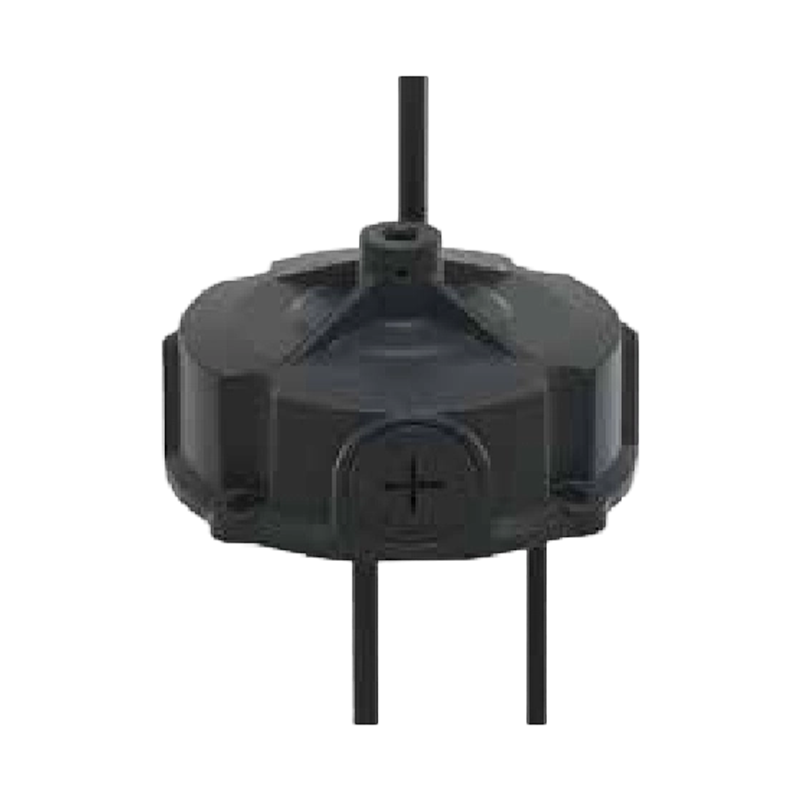

G6T-(II) Non-Isolated Round Smart LED Driver G6T (II)

Non-Isolated Round Smart LED Driver G6T (II)

The Non-Isolated Round Smart Driver G6T-(II) brings flexible dimming and configuration into a weatherproof round form factor suited to tight fixture housings. It's well suited for application in industrial lighting projects where fixtures demand compact drivers without sacrificing control options. Its core functionality centers on tri-in-one dimming support alongside dip-switch power, color temperature, and beam angle adjustment—all accessible without opening the fixture. An optional no-afterglow dimming-off feature removes the faint residual light that frustrates end users in commercial and industrial settings. Because fixture makers frequently need branded, application-specific variants, OEM/ODM services are available for wattage, color temperature range, and housing finish.

Form Drawing

Product Specification

Model G6-080Y260ZT(II) G6-120Y260ZT(II) G6-160Y260ZT(II) G6-200Y260ZT(II)
Power (W) 80 120 160 200
Output voltage range (Vdc) 180~260 180~260 180~260 180~260
Adjustable output current range (A) 0.20~0.37 0.30~0.56 0.40~0.74 0.50~0.93
Typical efficiency 94.00% 95.00% 95.00% 95.50%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59 127*59



Model G6-240Y260ZT(II) G6-320Y260ZT(II) G6-500Y260ZT(II)
Power (W) 240 320 500
Output voltage range (Vdc) 180~ 260 180~260 180~260
Adjustable output current range (A) 0.60~1.10 0.75~1.50 1.30~2.35
Typical efficiency 96.00% 96.00% 96.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 146*62 178*66
Inquiry Download
