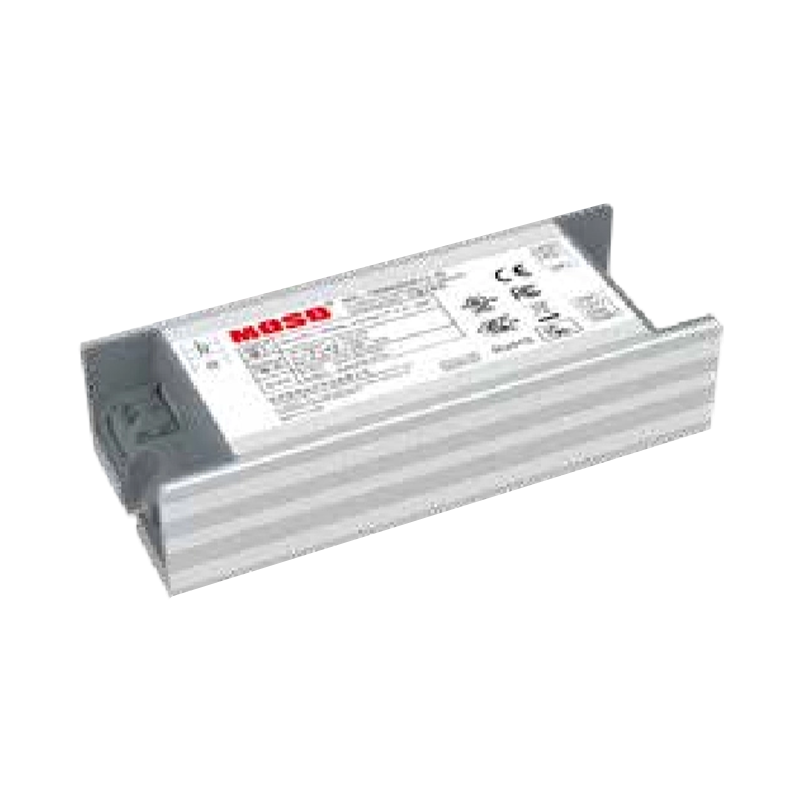

N7L-(II) Offline Configurable Smart LED Driver N7L (II)

Offline Configurable Smart LED Driver N7L (II)

Offline Configurable LED Smart Driver N7L-(II) is a non-isolated smart LED driver built around constant current output, accepting a wide 90-305Vac input for stable performance across unpredictable grids. It serves linear high-bay lamps, floodlights, wall lights, and shoe-cabinet fixtures that need dependable long-term operation in commercial and outdoor settings. Its core function centers on offline programmability: output power is set via DIP-code switches, and photocontrol parameters plus dimming behavior are field-programmable, complemented by tri-in-one dimming (0-10V, PWM, timed dimming) with dimm-to-off control. OEM/ODM services are available, allowing fixture makers to customize power ratings, connectors, or programming presets to match their own product lines.

Form Drawing

Product Specification

Model N7L-080Y300Z(I) N7L-100Y300Z(II) N7L-150Y300Z(II) N7L-200Y300Z(I)
Power (W) 80 100 150 200
Output voltage range (Vdc) 180~300 180~300 180~300 180~300
Adjustable output current range (A) 0.10~0.37 0.12~0.56 0.15~0.74 0.20~0.93
Typical efficiency 95.00% 97.00% 97.00% 97.00%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 106*56*33 121*55*33 121*55*33 136*55*33



N7L-240Y300Z(II) N7L-320Y300Z(II) N7L-400Y300Z(II)
240 320 400
180~300 180~300 180~300
0.22~1.10 0.30~1.50 0.36~1.80
97.00% 97.00% 97.00%
0.97 0.97 0.97
136*55*33 177*55*33 225*55*33
Inquiry Download
