X6 Offline-Config Smart Stadium LED Driver X6

Offline-Config Smart Stadium LED Driver X6

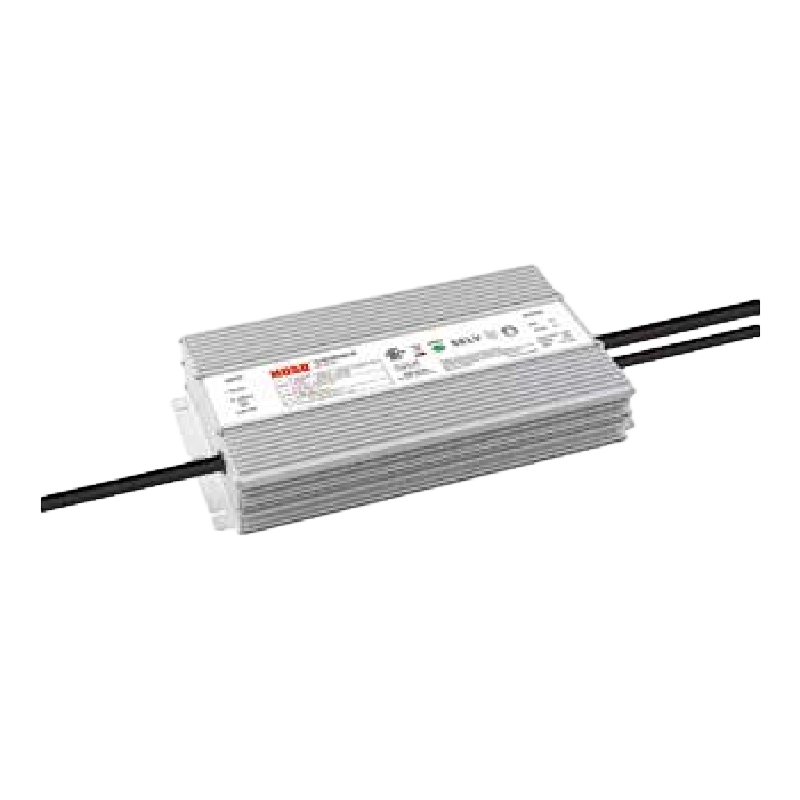

Configured without network connection, the Offline-Config Smart Stadium LED Driver X6 provides constant-current output with wide input voltage support and selectable DMX or DALI control for address setting and residual-light-free dimming. It is designed for stadium and sports venue lighting projects that need straightforward on-site setup. Core functions include low ripple, high power factor, surge protection, and safeguards against undervoltage, short-circuit, overvoltage, and overtemperature. These traits help simplify installation in areas without reliable connectivity, reduce residual glow, and improve reliability under outdoor conditions. ODM and OEM services support customization of interfaces, parameters, design, and branding.

Form Drawing

Product Specification

Model X6-480M060A12 X6-480M268A12 X6-600M056A12 X6-600M060A12
Power (W) 480 480 600 600
Output Voltage Range (Vdc) 30～60 134～268 27～56 30～60
Adjustable Full-Power Current Range (A) 8.00～10.00 1.80～2.40 10.71～12.50 10.00～12.50
Default Output 30～58V/8.20A 134～218V/2.20A 27～53V/11.20A 30～54V/11.20A
Typical Efficiency 93.50% 93.50% 93.00% 93.00%
Typical Power Factor 0.95 0.95 0.96 0.96
Dimensions (L x W x H) mm 276*125*40 276*125*40 276*144*48 276*144*48



Model X6-600M134A12 X6-600M268A12 X6-600M428A12 X6-680M056A12
Power (W) 600 600 600 680
Output Voltage Range (Vdc) 67～134 108～268 240～428 38～56
Adjustable Full-Power Current Range (A) 4.48～5.60 2.24～2.80 1.40～1.75 12.15～15.00
Default Output 67～107V/5.60A 108～214V/2.80A 240～428V/1.40A 38～45V/15.00A
Typical Efficiency 94.00% 94.50% 94.50% 94.00%
Typical Power Factor 0.95 0.96 0.96 0.96
Dimensions (L x W x H) mm 276*144*48 276*144*48 276*144*48 281*135*48
