GZD-XQD-3226/3226D Architectural LED Wall Washer GZD-XQD-3226/3226D

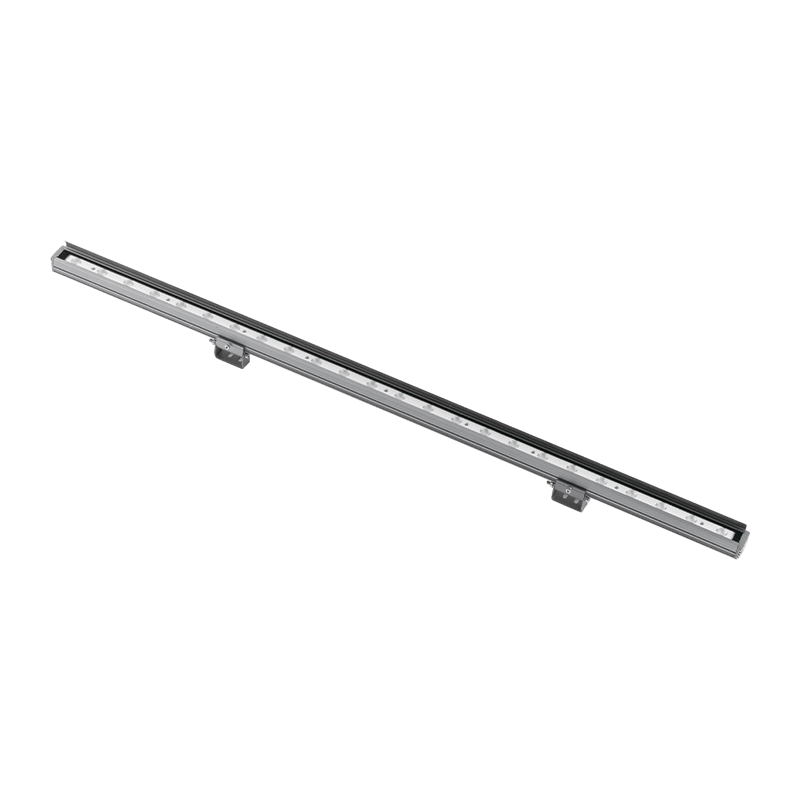

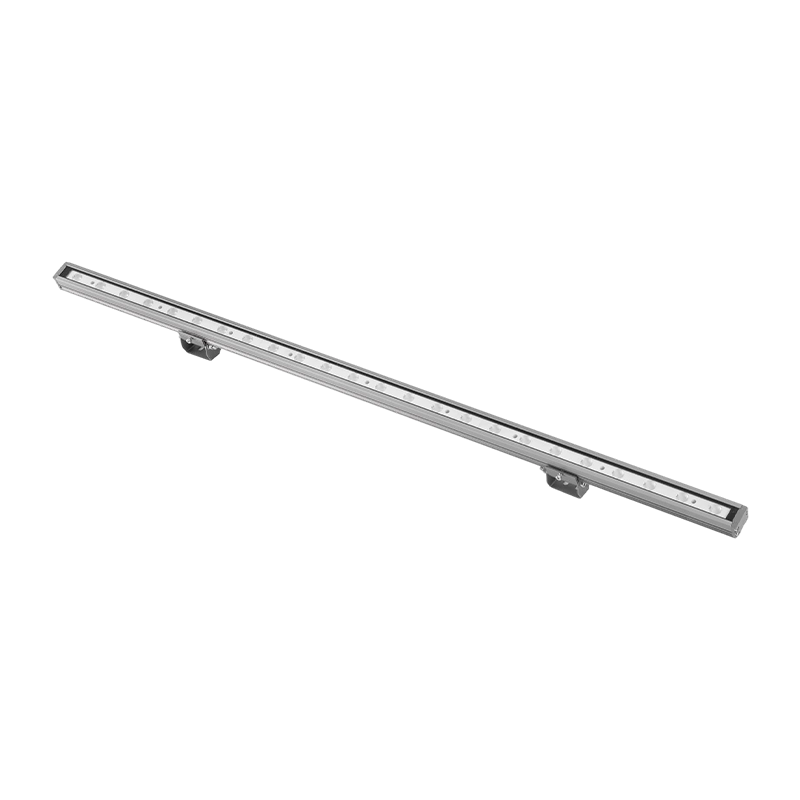

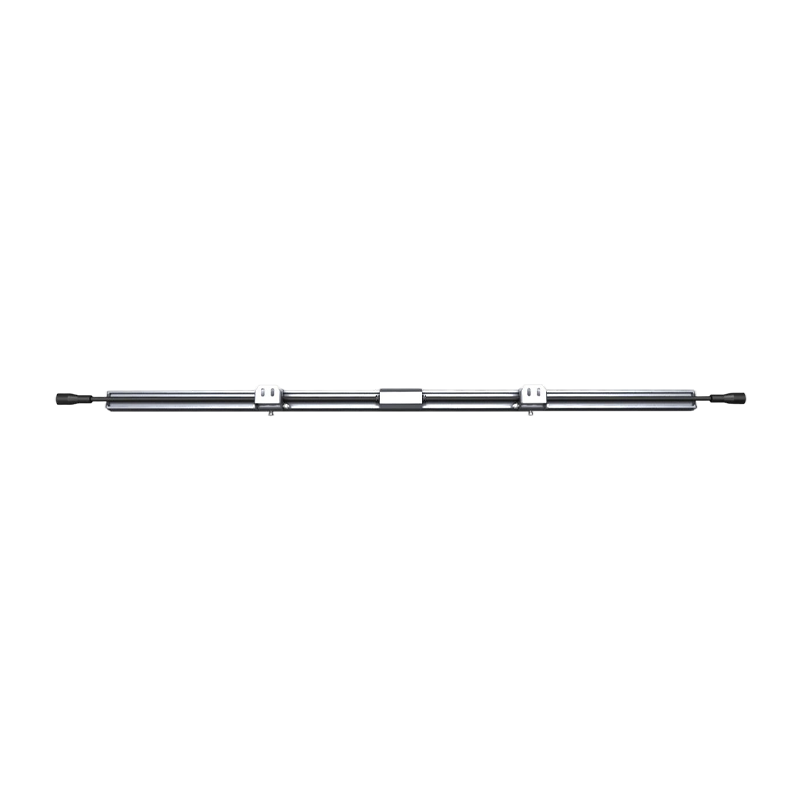

Architectural LED Wall Washer GZD-XQD-3226/3226D

Architectural LED Wall Washer GZD-XQD-3226/3226D is a professional façade lighting solution designed for architectural contouring and decorative building illumination. It is commonly applied in cultural buildings, museums, commercial complexes, and landmark structures. The core function is to highlight architectural lines and create visual depth through controlled lighting distribution. Clients choose it to enhance cityscape identity and increase project visual value. It offers superior optical accuracy and low glare performance compared to conventional flood lighting. We provide strict quality control, durable aluminum housing, and stable light output. OEM/ODM services include customized lengths, RGB options, and smart dimming integration.

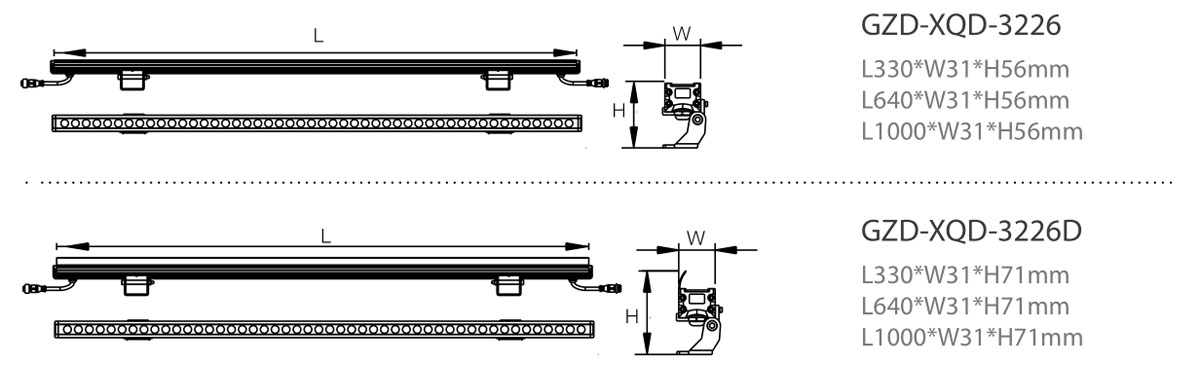

Form Drawing

Product Specification

Item NO. GZD-XQD-3226 GZD-XQD-3226D
Light Source Epileds /Bridgelux /Epistar /Osram /Cree Epileds /Bridgelux /Epistar /Osram /Cree
Input Voltage DC12-24V DC12-24V
Power 12-24W 12-24W
LED Color R/G/B/YW /WW R/G/BY/W WW
Beam Angle 10*45/ 10*65°/60°/90°/110° 10*65° /45°/60° /90°/110
Light Output Ratio(LOR) 80LM/W 80LM/W
CCT 1800-6500K 1800-6500K
Control Mode Steady Steady
Environment Temperature -20-45°C -20-45°C
IP Rate IP65 IP65
Inquiry Download
