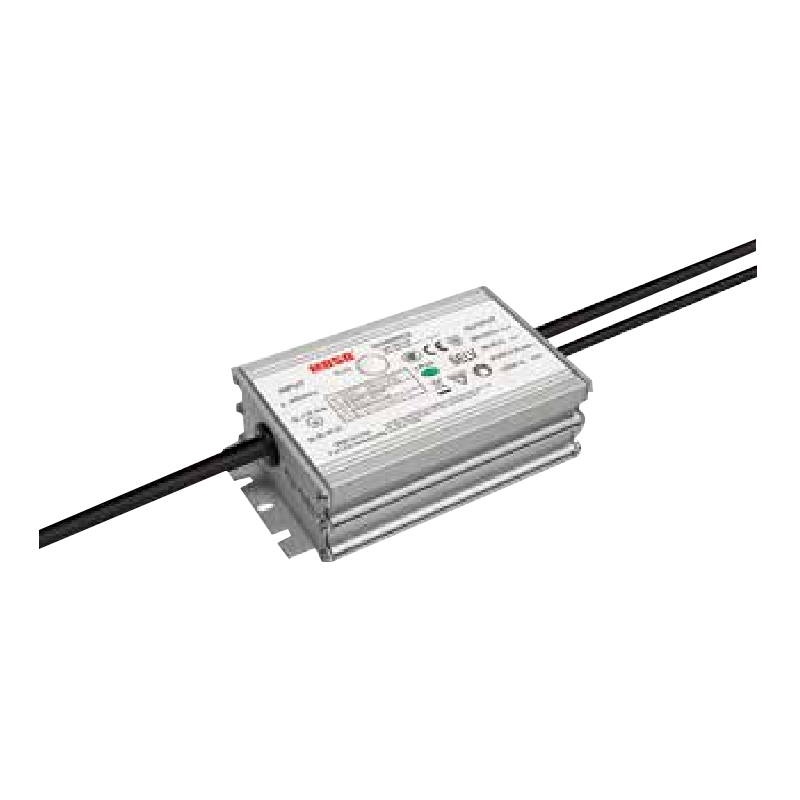

X6L Outdoor Programmable LED Driver X6L

Outdoor Programmable LED Driver X6L

Outdoor Rated LED Programmable Driver X6L combines flexible dimming with rugged construction. Landscape lighting, road lighting and industrial illumination define the main application fields. Broad 90–305 Vac input range, optional flicker-free constant-power delivery, potentiometer current setting, three-in-one dimming (0-10 V / PWM / resistor), optional 1-10 V inverse logic and continuous dimming without full shut-off keep standby power below 0.5 W. OEM/ODM collaboration allows rapid adaptation of branding, dimming profiles and current ranges so producers meet diverse project needs with minimal redesign.

Form Drawing

Product Specification

Model X6-026Y052 X6-036Y052 X6-042Y052 X6-060Y052
Power (W) 26 36 42 60
Output voltage range (Vdc) 28~52 28~52 28~52 28~52
Adjustable full-power current range (A) 0.25~0.50 0.40~0.80 0.47 ~0.94 0.67~1.34
Default output 28~52V/0.50A 28~45V/0.80A 28~45V/0.94A 28~ 45V/1.20A
Typical efficiency 88.00% 88.00% 89.00% 89.00%
Typical power factor 0.97 0.97 0.96 0.97
Dimensions (L × W × H) mm 119*65*34 119*65*34 132*65*34 132*65*34



Model X6-026Y052L X6-026Y086L X6-036Y052L X6-042Y052L
Power (W) 26 26 36 42
Output voltage range (Vdc) 28~52 50~86 28~52 28~52
Adjustable full-power current range (A) 0.25~0.50 0.23~0.46 0.70~0.80 0.80~0.94
Default output 28~52V/0.50A 50~ 57V/0.46A 28~45V/0.80A 28~45V/0.94A
Typical efficiency 87.00% 91.50% 88.00% 88.00%
Typical power factor 0.96 0.97 0.96 0.96
Dimensions (L × W × H) mm 119*65*34 119*65*34 119*65*34 119*65*34



Model X6-042Y086L X6-060Y052L X6-060Y086L
Power (W) 42 60 60
Output voltage range (Vdc) 50~86 28~52 50~86
Adjustable full-power current range (A) 0.37~0.74 1.15~1.34 0.52~1.05
Default output 50~ 57V/0.74A 28~45V/1.34A 50~57V/1.05A
Typical efficiency 91.50% 88.00% 92.00%
Typical power factor 0.97 0.96 0.97
Dimensions (L × W × H) mm 119*65*34 119*65*34 119*65*34
