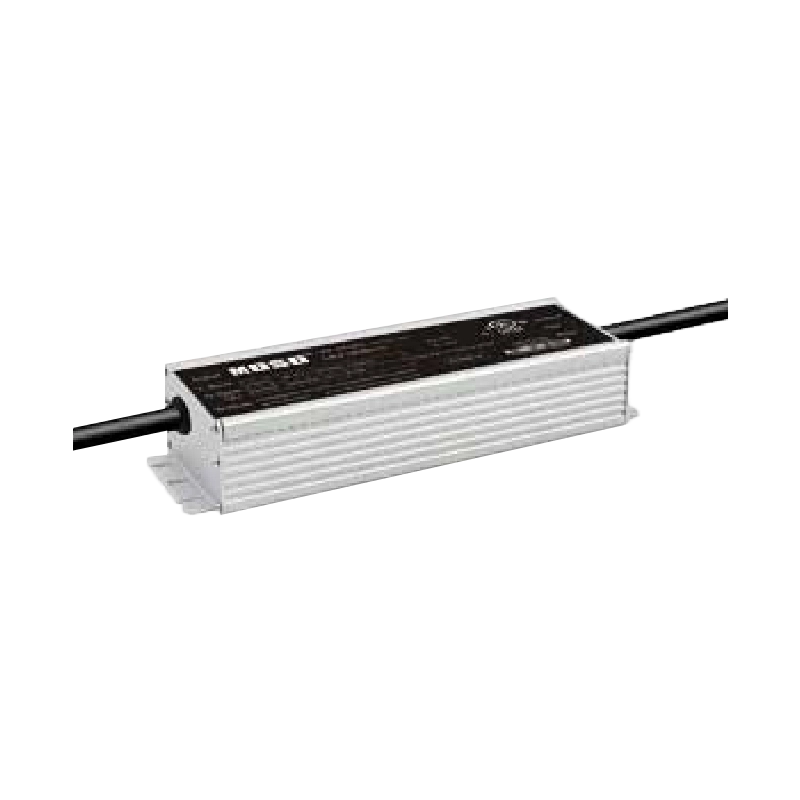

V1(LSV) Tiered Surge-Protection Constant Voltage Driver V1(LSV)

Tiered Surge-Protection Constant Voltage Driver V1(LSV)

Tiered Surge-Protection Constant Voltage Driver V1(LSV) is an isolated constant-voltage LED driver designed for stable lighting power under a wide 90–305Vac input range. It is suitable for landscape lighting and advertising light boxes where consistent output and surge resistance matter. Core functions include power factor above 0.96, surge protection, and safeguards against output short circuit, overvoltage, overload, and overtemperature. Different power ranges provide dedicated differential-mode and common-mode surge protection levels. ODM/OEM services are available for customized electrical configurations, housing requirements, and project-based lighting solutions.

Form Drawing

Product Specification

Model LSV-035B012 LSV-035B024 LSV-035B036 LSV-035B048
Power (W) 35 35 35 35
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～2.90 0～1.46 0～0.97 0～0.73
Typical Efficiency 85.00% 87.00% 87.00% 88.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 199*43*34 199*43*34 199*43*34 199*43*34



Model LSV-050B012 LSV-050B024 LSV-050B036 LSV-050B048
Power (W) 50 50 50 50
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～4.17 0～2.08 0～1.39 0～1.04
Typical Efficiency 85.00% 88.00% 89.00% 89.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 199*43*34 199*43*34 199*43*34 199*43*34



Model LSV-075B012 LSV-075B024 LSV-075B036 LSV-075B048
Power (W) 75 75 75 75
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～6.25 0～3.13 0～2.08 0～1.56
Typical Efficiency 87.00% 87.00% 87.00% 87.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 164*68*39 164*68*39 164*68*39 164*68*39



Model LSV-100B012 LSV-100B024 LSV-100B036 LSV-100B048
Power (W) 100 100 100 100
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～8.33 0～4.17 0～2.78 0～2.08
Typical Efficiency 91.00% 91.00% 92.00% 92.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 178*68*42 178*68*42 178*68*39 178*68*39



Model LSV-150B012 LSV-150B024 LSV-150B036 LSV-150B048
Power (W) 150 150 150 150
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～12.5 0～6.25 0～4.17 0～3.13
Typical Efficiency 90.00% 91.00% 91.00% 91.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 207*68*42 207*68*42 207*68*42 207*68*42



Model LSV-200B012 LSV-200B024 LSV-200B036 LSV-200B048
Power (W) 200 200 200 200
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～16.67 0～8.33 0～5.56 0～4.17
Typical Efficiency 91.00% 92.00% 92.00% 92.00%
Typical Power Factor 0.96 0.96 0.96 0.96
Dimensions (L x W x H) mm 232*68*44 232*68*44 247*68*44 247*68*44



Model LSV-320B012 LSV-320B024 LSV-320B036 LSV-320B048
Power (W) 264 320 320 320
Output Voltage (Vdc) 12 24 36 48
Output Current Range (A) 0～22.00 0～13.33 0～8.90 0～6.67
Typical Efficiency 91.00% 92.00% 92.00% 92.00%
Typical Power Factor 0.96 0.96 0.97 0.97
Dimensions (L x W x H) mm 231*98*42 231*98*42 231*98*42 231*98*42
