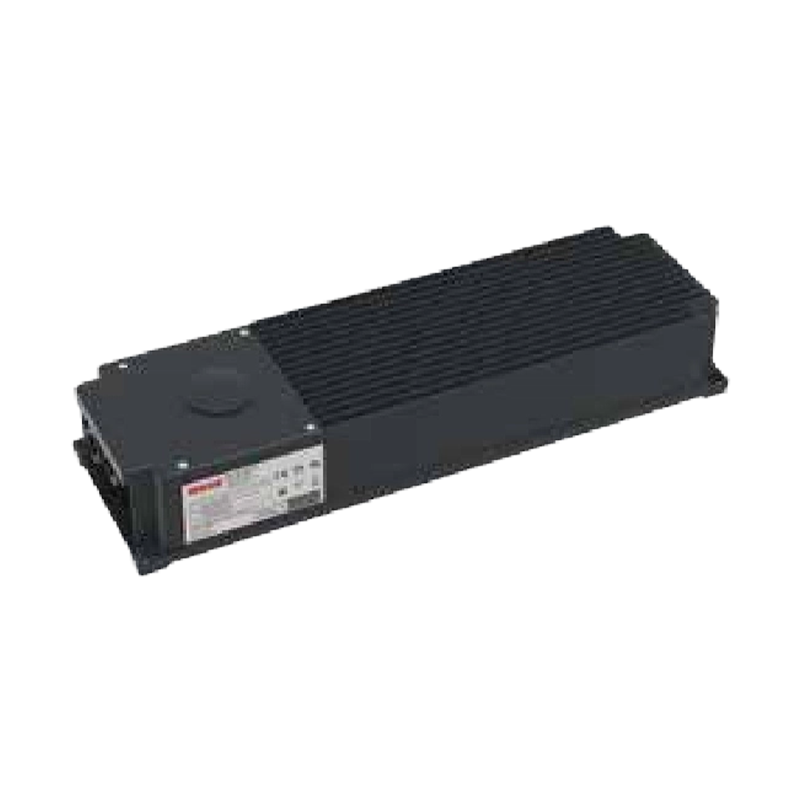

S7 Ultra-Low Standby Sports Lighting Driver S7

Ultra-Low Standby Sports Lighting Driver S7

Focusing on energy efficiency during idle periods, the Ultra-Low Standby Sports Lighting Driver S7 delivers constant-current performance with minimal power draw when lights are off. This driver is intended for sports venues and stadium lighting systems that remain powered for extended periods yet require reduced standby consumption.
Core functions include residual-light-free dimming, low output ripple, high power factor, surge protection, and safeguards against undervoltage, short-circuit, overvoltage, and overtemperature, along with an outdoor-ready enclosure rating and multi-year warranty. ODM and OEM services are available for customized interfaces, electrical parameters, mechanical design, and branding.

Form Drawing

Product Specification

Model S7-680Y500 S7-880Y500 S7-1K2Y500
Power (W) 680 880 1200(600W×2)
Output Voltage Range (Vdc) 200～500 200～500 200～500
Adjustable Full-Power Current Range (A) 1.36～2.60 1.76～3.40 (1.20～2.30)*2
Default Output 2.60A 3.40A 2.30A *2
Typical Efficiency 97.00% 97.00% 97.00%
Typical Power Factor 0.97 0.97 0.97
Dimensions (L x W x H) mm 335*144*59 400*150*81 400*150*81



Model S7-1K8Y500 S7-2K1Y500
Power (W) 1800(600W×3) 2100(700W×3)
Output Voltage Range (Vdc) 200～500 200～500
Adjustable Full-Power Current Range (A) (1.20～2.30)*3 (1.40～2.70)*3
Default Output 2.30A *3 2.70A *3
Typical Efficiency 97.00% 97.00%
Typical Power Factor 0.97 0.97
Dimensions (L x W x H) mm 500*150*81 500*150*81
