G6H Wide Voltage Round Programmable LED Driver G6H

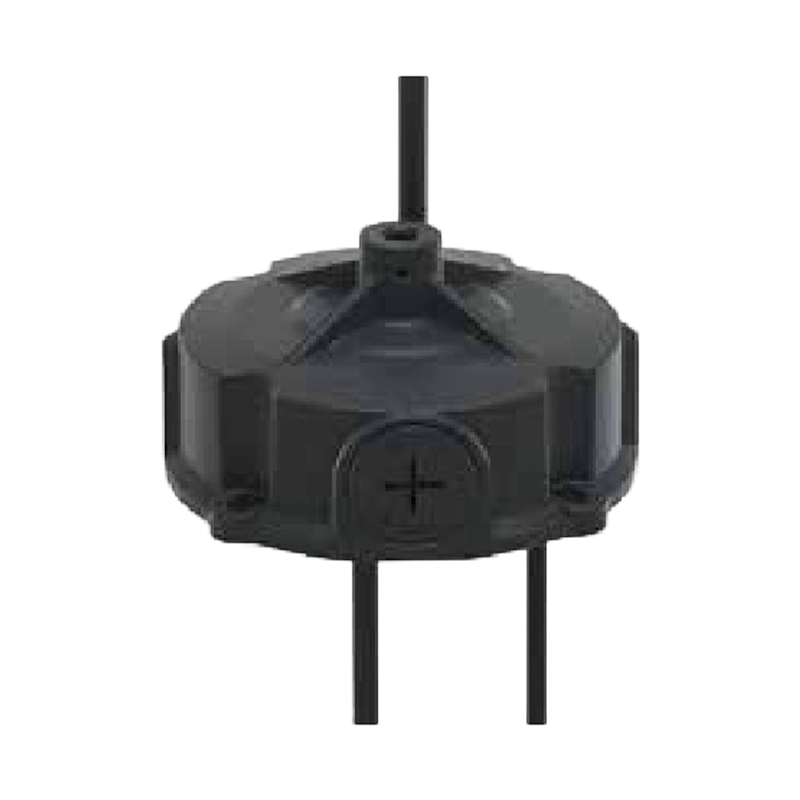

Wide Voltage Round Programmable LED Driver G6H

The Wide Voltage Range Round Programmable Driver G6H is designed to hold up where power quality can't be guaranteed. It applies well to industrial environments running on non-standard or unstable power grids. Its core function is a broad 198-528Vac input tolerance, which solves a recurring problem exporters and contractors face when a single market requires multiple region-specific driver models. Tri-in-one dimming — 0-10V, PWM, resistor — and potentiometer-based current adjustment give installers on-site control without specialized tools, while a dimming-off mode conserves energy during inactive periods. OEM/ODM arrangements extend to voltage calibration, wattage tiers, and housing customization for brands targeting high-voltage or unstable grid markets.

Form Drawing

Product Specification

Model G6H-120M260A12 G6H-160M260A12 G6H-200M260A12
Power (W) 120 160 200
Output voltage range (Vdc) 180～260 180～260 180～260
Adjustable output current range (A) 0.30～0.56 0.40～0.74 0.50～0.93
Typical efficiency 94.00% 95.00% 95.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (φ × H) mm 127*59 127*59 127*59



Model G6H-240M260A12 G6H-320M260A12
Power (W) 240 320
Output voltage range (Vdc) 180～260 180～260
Adjustable output current range (A) 0.60～1.10 0.80～1.48
Typical efficiency 95.00% 96.00%
Typical power factor (PF) 0.97 0.97
Dimensions (φ × H) mm 127*59 146*62
Inquiry Download
