S6 880W Wide-Range Dimming Stadium Driver S6 880W

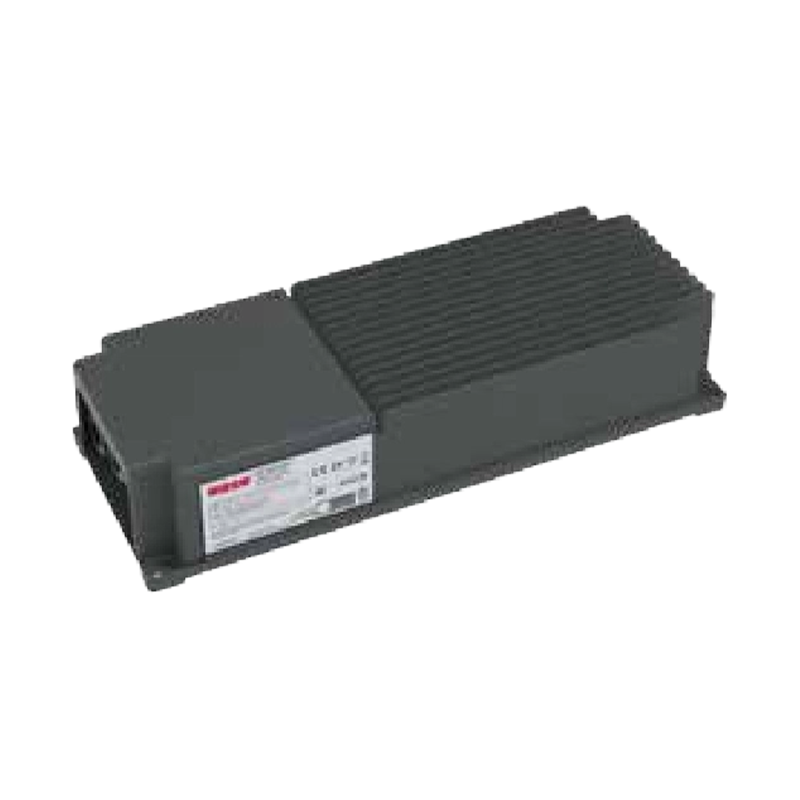

Wide-Range Dimming Stadium Driver S6 880W

The Wide-Range Dimming Stadium Driver S6 880W is a non-isolated constant-current LED driver engineered for large-scale lighting systems. This driver is designed for stadium and sports venue lighting applications, where stable performance under varying load and environmental conditions is required. Core functions include ultra-low output ripple below 2%, high power factor above 0.97 at full load, low total harmonic distortion, and robust surge protection rated at 10 kV differential and common mode. These features help address common challenges in stadium lighting such as residual glow during dimming, limited dimming range, and vulnerability to electrical surges or harsh outdoor conditions.

Form Drawing

Product Specification

Model S6-880D440 S6-880R440
Power (W) 880 880
Output Voltage Range (Vdc) 190～440 190～440
Adjustable Full-Power Current Range (A) 2.00～3.60 2.00～3.60
Default Output 190～352V/2.50A 190～352V/2.50A
Typical Efficiency 96.50% 96.50%
Typical Power Factor 0.96 0.96
Dimensions (L*W*H) mm 400*150*81 400*150*81
Inquiry Download
