LED Wall Washer
Home / Products / LED Facade Lighting / LED Wall Washer / Linear Facade Wall Washer GZD-XQD-5643/5643D

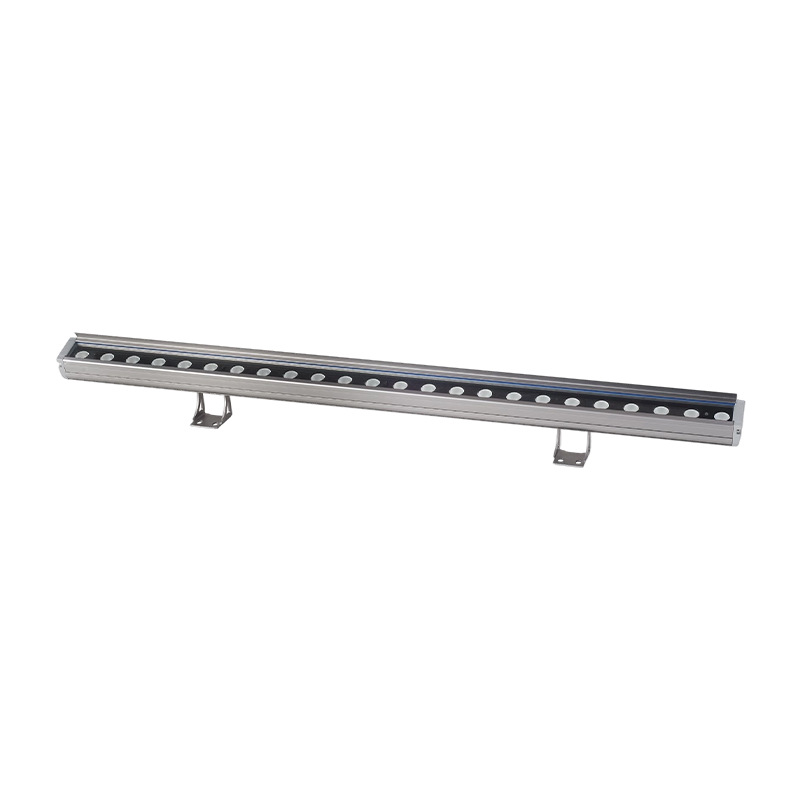

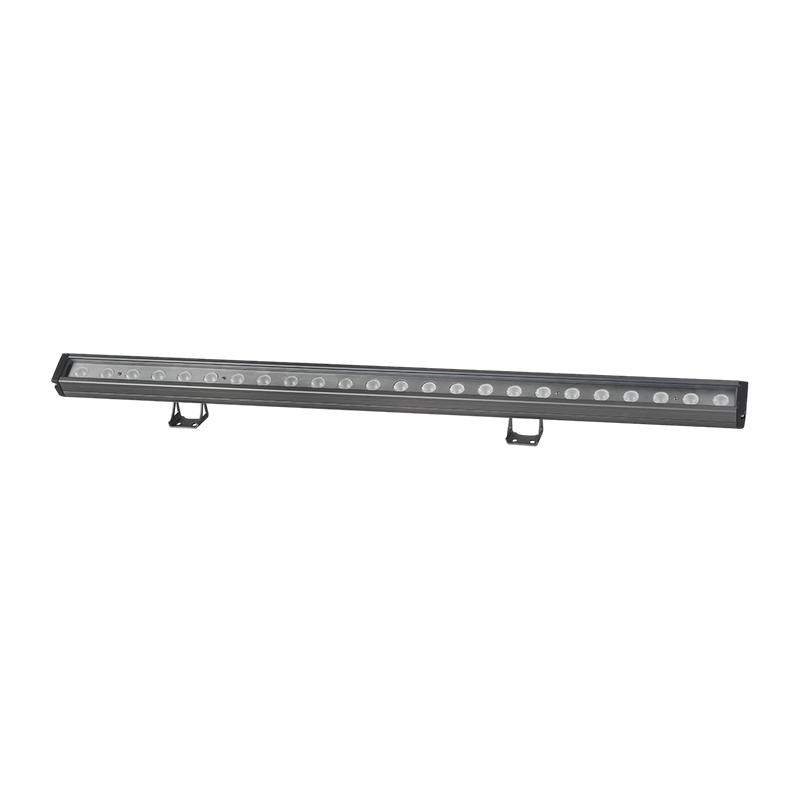

GZD-XQD-5643/5643D Linear Facade Wall Washer GZD-XQD-5643/5643D

Linear Facade Wall Washer GZD-XQD-5643/5643D

Linear Facade Wall Washer GZD-XQD-5643/5643D is a linear architectural lighting system designed for continuous façade washing and structural outlining. It is widely used in skyscrapers, shopping malls, bridges, and urban decorative lighting projects. Its core function is to produce seamless linear illumination that enhances building geometry and nighttime aesthetics. Customers purchase it to achieve modern visual effects and uniform lighting distribution across large surfaces. It performs better than segmented fixtures by eliminating dark gaps and ensuring visual continuity. We provide precision extrusion aluminum housings, high-efficiency LEDs, and stable optical lenses. OEM/ODM includes custom lengths, mounting systems, and smart lighting control.

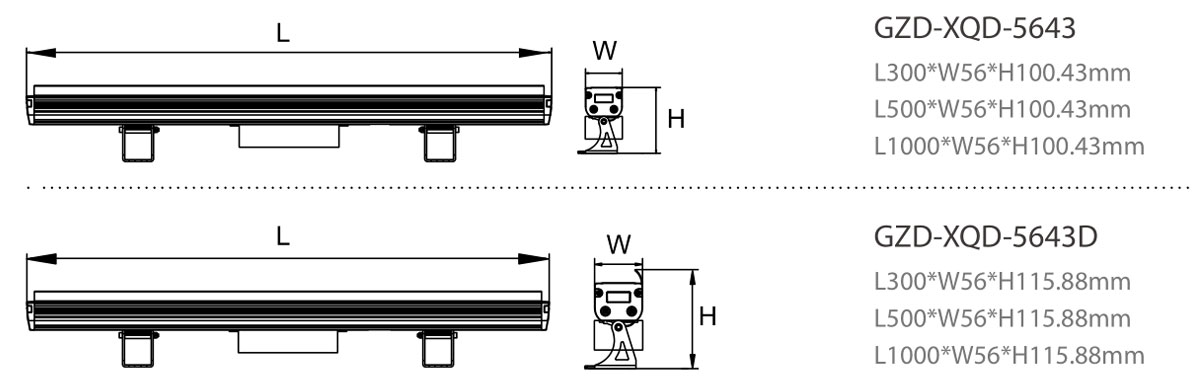

Form Drawing

Product Specification

Item NO. GZD-XQD-5643 GZD-XQD-5643D
Light Source Epileds /Bridgelux /Epistar /Osram /Cree Epileds /Bridgelux /Epistar /Osram /Cree
Input Voltage DC12-24V /AC85-265V DC12-24V /AC85-265V
Power 36-64W 36-64W
LED Color R /G /B/Y/W/WW/RGB/RGBW R /G /B/Y/W /WW/RGB/RGBW
Beam Angle 10*45/ 10*65/60°/90°/110° 10*45/ 10*65°/ 60°/90°/110°
Light Output Ratio(LOR) 70LM/W 70LM/W
CCT 1800-6500K 1800-6500K
Control Mode DMX512 /steady DMX512/steady
Environment Temperature -20-45°C -20-45°C
IP Rate IP65 IP65
Inquiry Download
