LED Wall Washer
Home / Products / LED Facade Lighting / LED Wall Washer / Waterproof LED Wall Washer GZD-XQD-3233/3233D
GZD-XQD-3233/3233D Waterproof LED Wall Washer GZD-XQD-3233/3233D

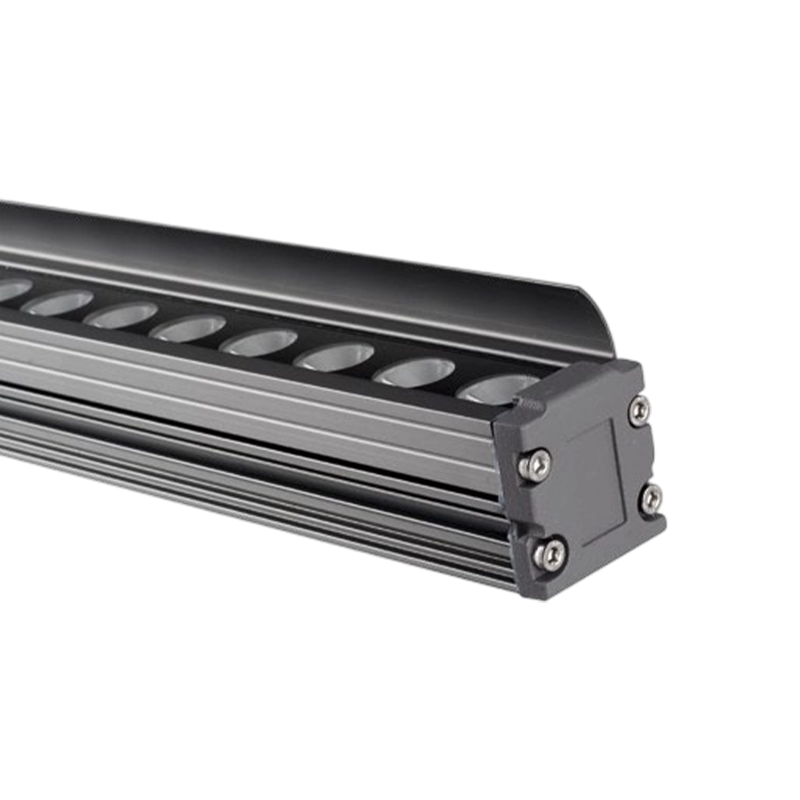

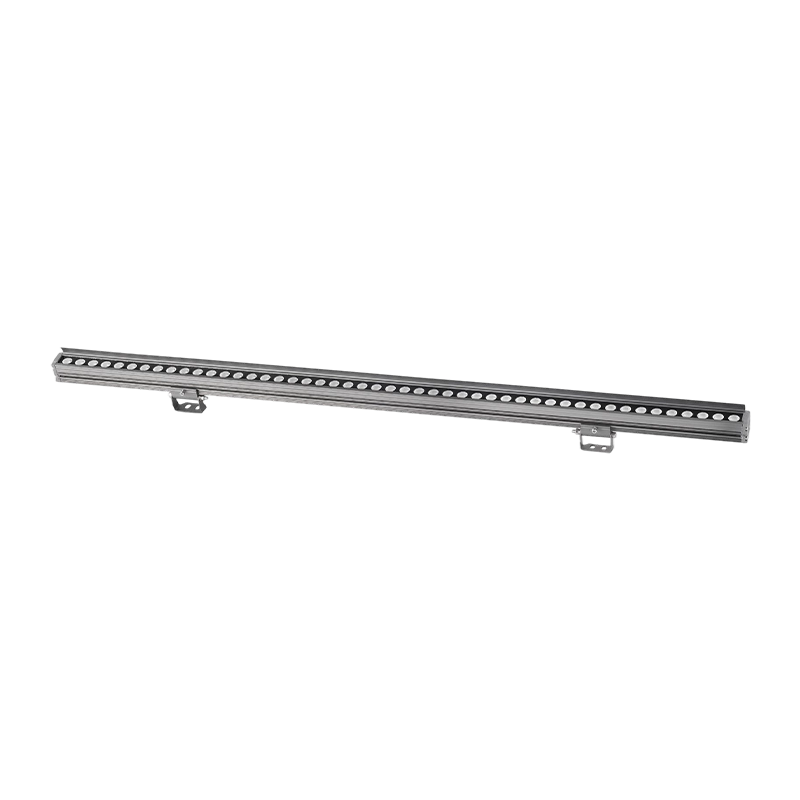

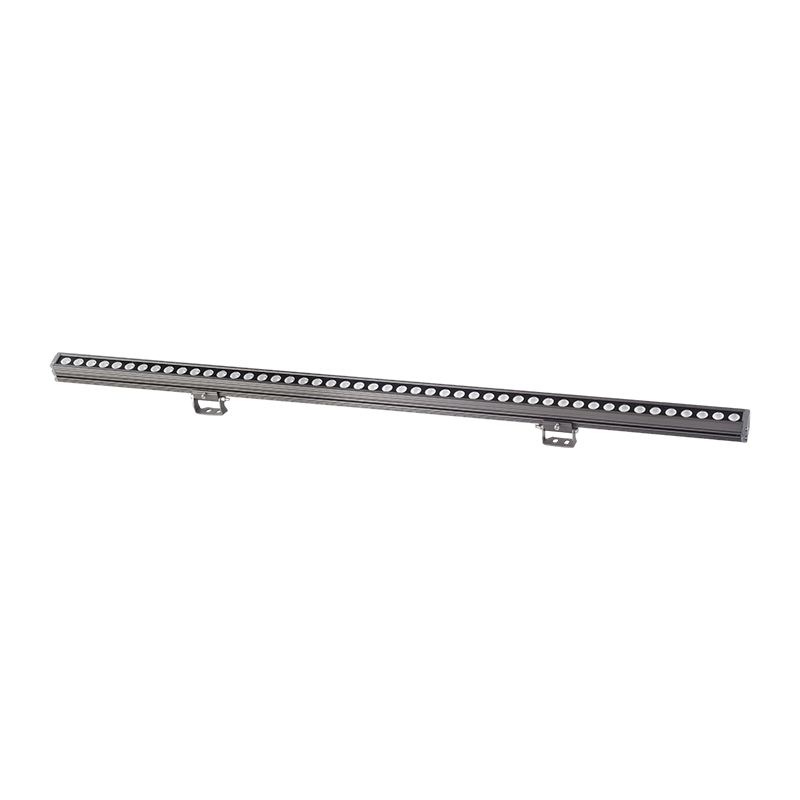

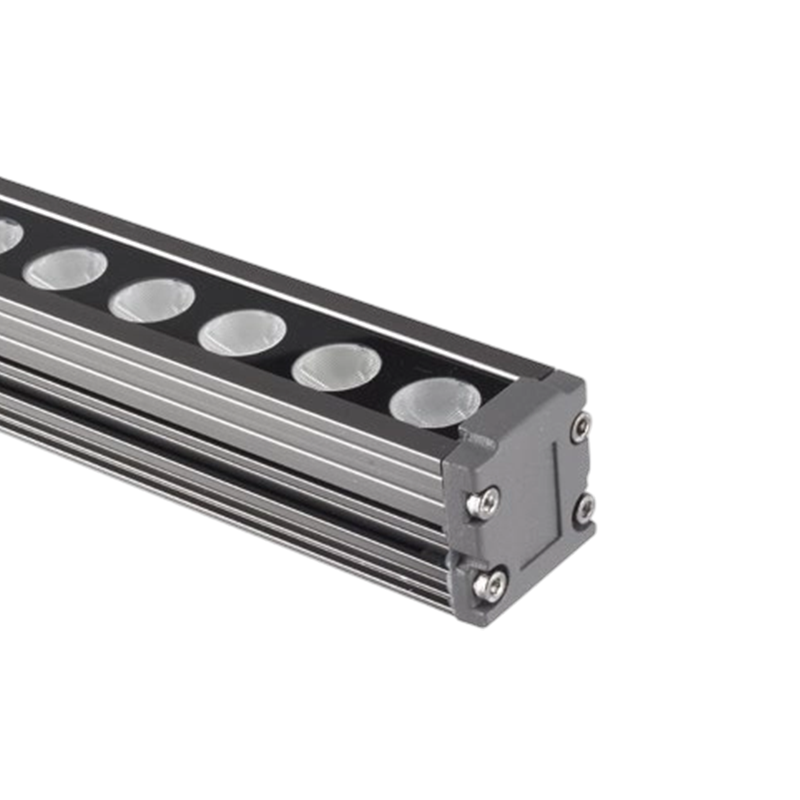

Waterproof LED Wall Washer GZD-XQD-3233/3233D

Waterproof LED Wall Washer GZD-XQD-3233/3233D is a fully sealed outdoor lighting fixture designed for harsh weather façade applications. It is commonly used in coastal buildings, outdoor bridges, tunnels, and humid environments. Its core function is to provide stable wall-lighting performance in rain, dust, and temperature fluctuations. Customers choose it to ensure long-term reliability and reduce maintenance in extreme conditions. Compared to standard models, it features enhanced IP protection and corrosion resistance. We offer rigorous waterproof testing, high-strength sealing technology, and anti-UV materials. OEM/ODM customization includes IP rating upgrades, housing materials, and light control systems.

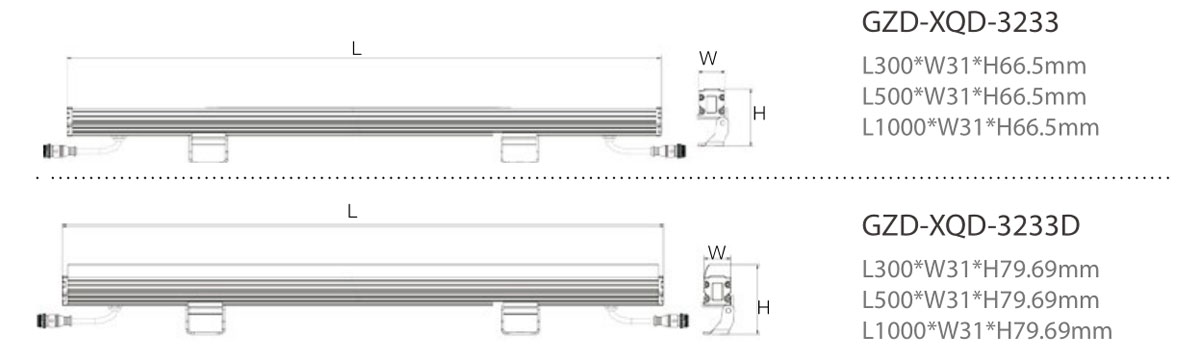

Form Drawing

Product Specification

Item NO. GZD-XQD-3233 GZD-XQD-3233D
Light Source Epileds /Bridgelux /Epistar /Osram /Cree Epileds /Bridgelux /Epistar /Osram /Cree
Input Voltage DC12-24V DC12-24V
Power 8-15W 8-15W
LED Color R /G /B/Y/W /WW/RGB/RGBW R /G /B/Y/W /WW /RGB /RGBW
Beam Angle 10*45°/ 10*65°/ 60°/90°/ 110° 10*45°/ 10*65°/ 60°/90°/ 110°
Light Output Ratio(LOR) 70LM/W 70LM/W
CCT 1800-6500K 1800-6500K
Control Mode DMX512 /steady DMX512 /steady
Environment Temperature -20-45°C -20-45°C
IP Rate IP65 IP65
Inquiry Download
