IT 0-10 150/100-277 P67 150W Multi-Dimming Programmable Driver IT 0-10 150/100-277 P67

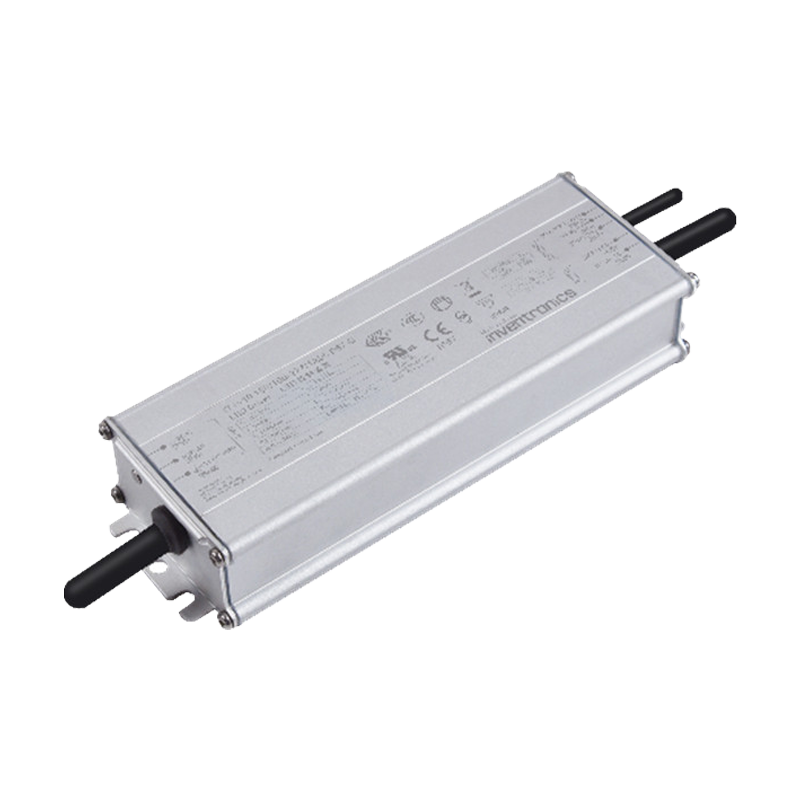

150W Multi-Dimming Programmable Driver IT 0-10 150/100-277 P67

Dimming flexibility sits at the core of this 150W Multi-Dimming Programmable Driver, with isolated control options covering 1(0)-5V, 1(0)-10V, PWM, resistor, and timer inputs, giving fixture manufacturers room to match different control systems without redesigning their control interface.

It's applied mainly in road and area lighting projects, with IP66/IP67 protection suited to UL dry, damp, and wet locations, Class I, Division 2 hazardous locations in North America. Standby power drops to 0.5W or below once dimming shuts off, and the dimming curve itself can be adjusted for specific luminaire behavior — solving the common problem of drivers that waste energy in standby mode or force one-size-fits-all dimming behavior across different fixture designs.

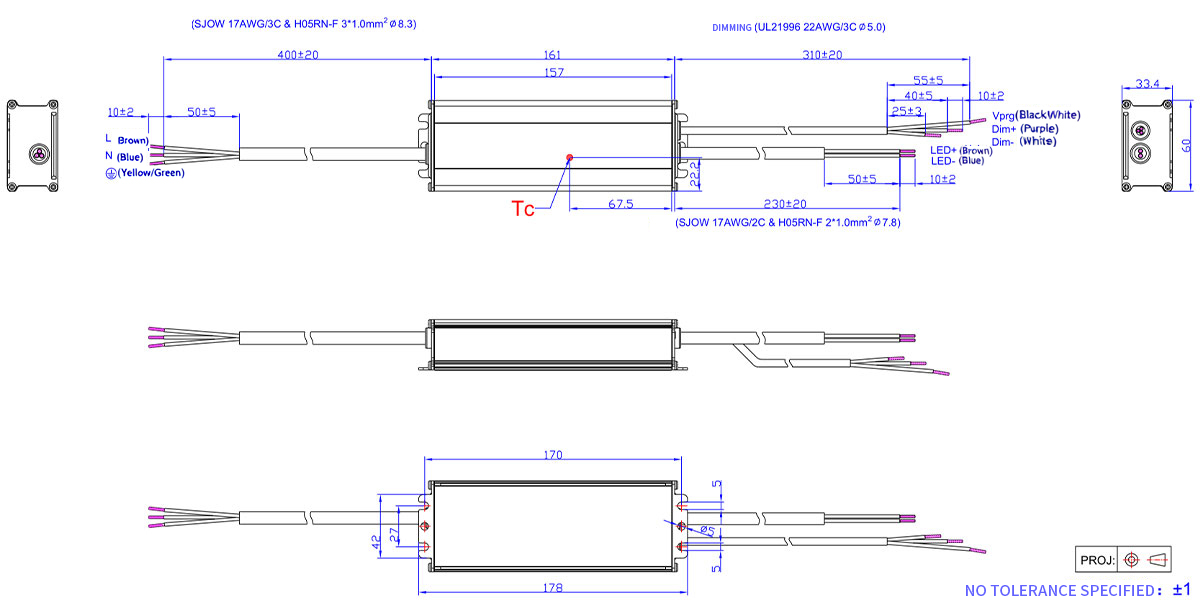

Form Drawing

2-2-wCiQ

Product Specification

Specification IT 0-10 150/100-277/0A7 P67 y IT 0-10 150/100-277/1A05 P67 y IT 0-10 150/100-277/4A2 P67 y
Adjustable Output Current Range 53-700 mA 70-1050 mA 268-4200 mA
FullPower Output Current Range 530-700 mA 700-1050 mA 2680-4200 mA
Minimum Output Current 530 mA 700 mA 3150 mA
Rated Output Voltage Range 107-284 VDC 72-214 VDC 18-56VDC
Maximum Output Power 150 W 150 W 150 W
Efficiency 94.50% 94.00% 92.50%
Power Factor at 120 Vac 0.99 0.99 0.99
Power Factor at 230 Vac 0.96 0.96 0.96
