X6S(XCP) Class II Isolated Programmable Smart Driver X6S(XCP)

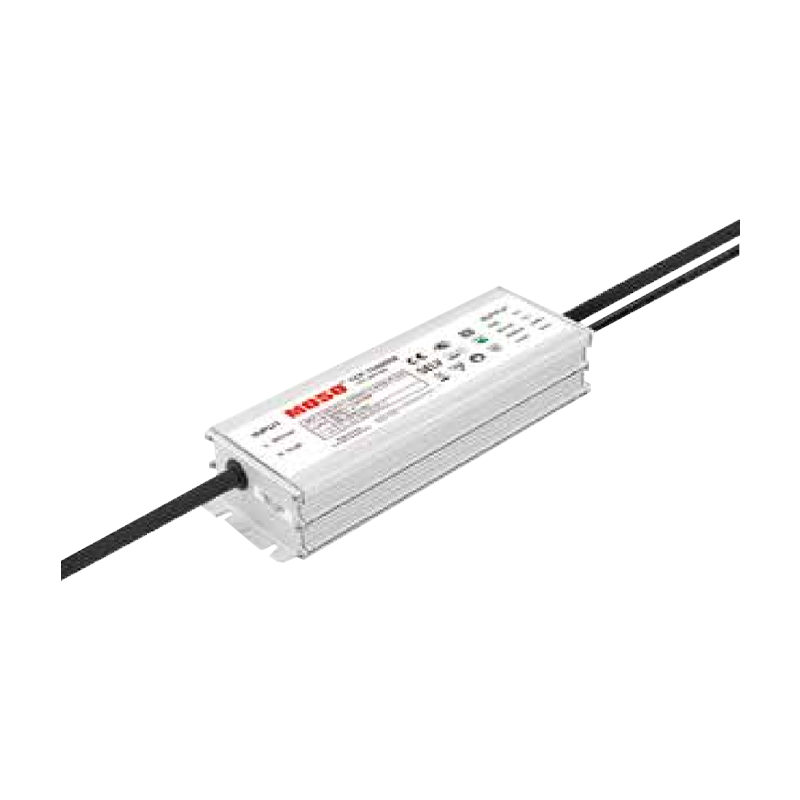

Class II Isolated Programmable Smart Driver X6S(XCP)

Class II isolation removes the need for a protective earth connection, simplifying installation for the Class II Isolated Programmable Smart Driver X6S(XCP) across road and industrial lighting projects where grounding can be inconsistent or unreliable.

It's applied mainly in road lighting and industrial lighting projects. At its core, the driver runs an isolated constant-power architecture with Class II design, paired with offline programmable current adjustment and 3-in-1 dimming (0/1-10V, PWM, timer-based control). An IP67 rating supports long-term outdoor exposure, and the driver is rated for a 100,000-hour operating life, making it well suited to fixtures that see limited maintenance access.

Form Drawing

Product Specification

Model XCP-042M062 XCP-060M062 XCP-075Y041 XCP-075Y062
Power (W) 42 60 75 75
Output voltage range (Vdc) 32~62 32~62 20~41 38~62
Adjustable full-power current range (A) 0.68～1.05 0.97～1.30 1.83~2.67 1.21～ 1.88
Default output 32～43V/0.97A 32～62V/0.97A 20～36V/2.10A 38~53V/1.40A
Typical efficiency 0.88 0.885 0.88 0.89
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 116*64*33 116*64*33 129*68*37 129*68*37



Model XCP-075Y108 XCP-105Y041 XCP-105Y062 XCP-105Y150
Power (W) 75 105 105 105
Output voltage range (Vdc) 54～108 20~41 38~62 75~150
Adjustable full-power current range (A) 0.70~1.05 2.56～3.50 1.69~2.50 0.70～1.05
Default output 54～108V/0.70A 20～37V/2.80A 38～50V/2.10A 75~100V/1.05A
Typical efficiency 0.9 0.9 0.91 0.92
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 129*68*37 154*68*37 154*68*37 154*68*37



Model XCP-150Y041 XCP-150Y062 XCP-150Y214 XCP-200Y062
Power (W) 150 150 150 200
Output voltage range (Vdc) 20~41 38~62 107～214 38~62
Adjustable full-power current range (A) 3.66~5.40 2.42～3.60 0.70～1.05 3.23～5.00
Default output 20~35V/4.20A 38~47V/3.15A 107～214V/0.70A 38~47V/4.20A
Typical efficiency 0.91 0.91 0.92 0.92
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 174*68*37 174*68*37 174*68*37 194*68*39



Model XCP-200Y286 XCP-240Y041 XCP-240Y062
Power (W) 200 240 240
Output voltage range (Vdc) 143～286 20~41 38~62
Adjustable full-power current range (A) 0.70～1.05 5.86～7.50 3.88~5.71
Default output 143~ 286V/0.70A 20～36V/6.70A 38～48V/5.00A
Typical efficiency 0.92 0.92 0.92
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 194*68*39 209*68*39 209*68*39



Model XCP-240Y343 XCP-320Y062Z XCP-320Y457Z
Power (W) 240 320 320
Output voltage range (Vdc) 171～343 38~62 228~457
Adjustable full-power current range (A) 0.70～1.05 5.20～7.50 0.70～1.10
Default output 171～228V/1.05A 38～47V/6.70A 228～304V/1.05A
Typical efficiency 0.935 0.93 0.93
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 209*68*39 231*98*42 231*98*42
