N7L Durable Linear Programmable LED Driver N7L

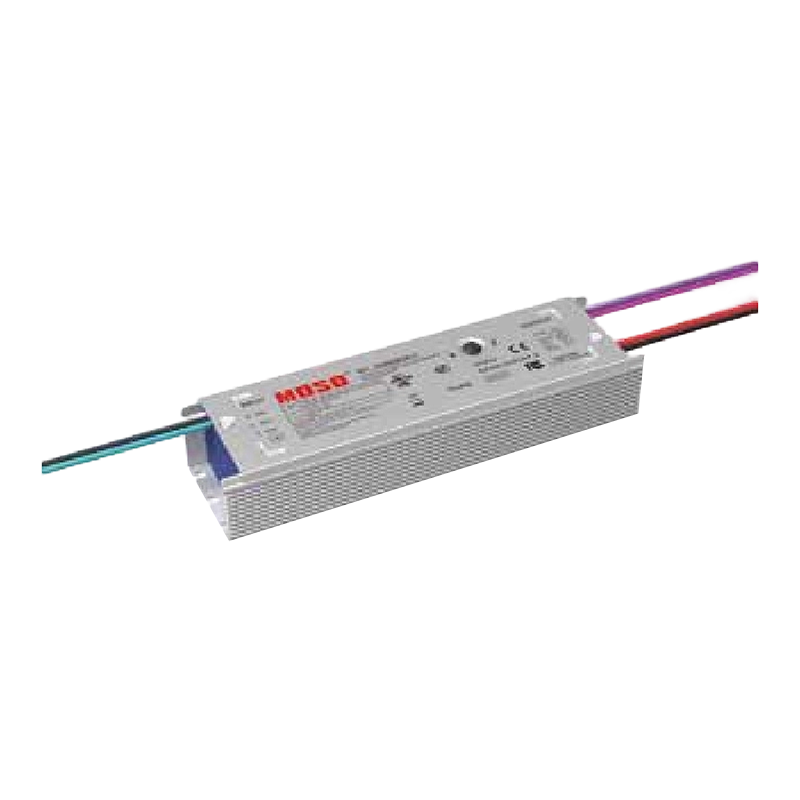

Durable Linear Programmable LED Driver N7L

Durable Linear LED Programmable Driver N7L is a non-isolated constant current driver designed for rugged, continuous-duty operation across a 90-305Vac input range. It's commonly applied in linear mining lamps, floodlights, wall lights, and shoe-cabinet fixtures where fixture manufacturers need one driver platform to cover multiple wattage tiers. Its core functionality includes potentiometer-based current adjustment for fast on-line calibration, tri-in-one dimming across 0-10V, PWM, and resistance signals, and an optional no-afterglow dimm-to-off feature. This directly addresses a common complaint in the industry—LEDs that faintly glow after being switched off—by eliminating that residual light entirely. OEM/ODM options let brands request tailored wire lengths, connectors, or enclosure dimensions to fit existing fixture designs.

Form Drawing

Product Specification

Model N7L-030Y260 N7L-065Y260 N7L-060Y260Z
Power (W) 30 60 60
Output voltage range (Vdc) 180～260 180～260 180～260
Adjustable output current range (A) 0.07 ～0.17 0.15~0.30 0.19 ~0.28
Typical efficiency 92.00% 93.00% 93.50%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 112*51*34 112*51*34 147*53*34



Model N7L-080Y260Z N7L-120Y260Z N7L-160Y260Z
Power (W) 80 120 160
Output voltage range (Vdc) 180～260 180～260 180～260
Adjustable output current range (A) 0.26～0.37 0.39～0.56 0.52~0.74
Typical efficiency 94.00% 95.00% 95.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 147*53*34 159*53*34 159*53*34



Model N7L-200Y260Z N7L-240Y260Z N7L-320Y260Z
Power (W) 200 240 320
Output voltage range (Vdc) 180～260 180～260 180～260
Adjustable output current range (A) 0.65～0.93 0.77 ～1.11 1.04～1.48
Typical efficiency 95.00% 95.00% 96.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 192*53*34 192*53*34 197*66*34
Inquiry Download
