IT 0-10 320/100-277 P67 Effective Heat Dissipation 320W Programmable Driver IT 0-10 320/100-277 P67

Effective Heat Dissipation 320W Programmable Driver IT 0-10 320/100-277 P67

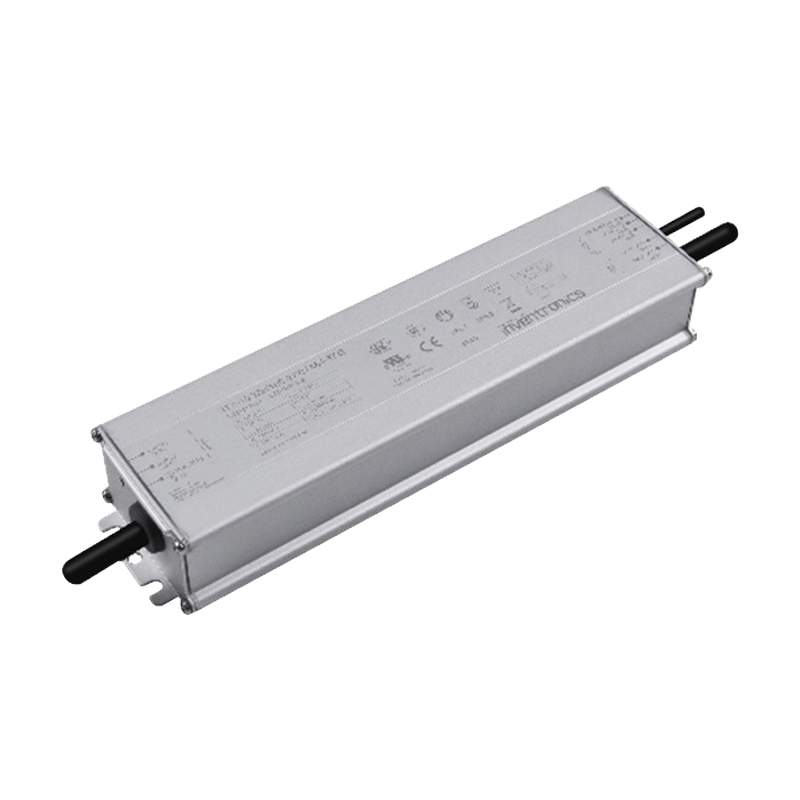

Engineered for reliable performance in professional LED lighting systems, the Effective Heat Dissipation 320W Programmable Driver IT 0-10 320/100-277 P67 features a compact housing that delivers effective heat dissipation, ensuring stable operation under continuous high-load conditions.

Applied mainly in road and area lighting, with IP66/IP67 protection for Class I, Division 2 hazardous locations and Class I/II fixtures. Its core function pairs thermal reliability with multiple isolated dimming methods — 1(0)-5V, 1(0)-10V, PWM, resistance, and timer control — plus dim-to-off capability holding standby power at ≤0.5W, cutting energy waste from drivers left in standby overnight. Housing structure and dimming protocol customizable via OEM/ODM.

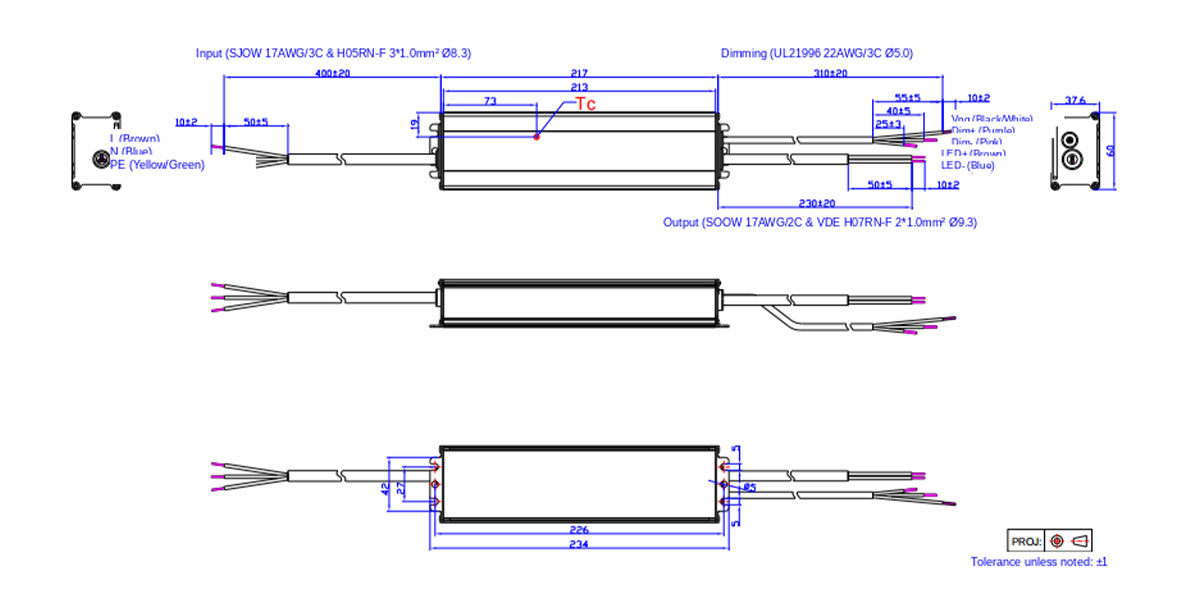

Form Drawing

5-2

Product Specification

Parameter IT 0-10 320/100-277/1A05 P67y IT 0-10 320/100-277/1A5 P67 y IT 0-10 320/100-277/7A6 P67 y
Adjustable Output Current Range (mA) 70-1050 105-1500 535-7600
Full Power Output Current Range (mA) 700-1050 1050-1500 5350-7600
Default Output Current (mA) 700 1400 6700
Nominal Output Voltage Range (Vdc) 153-457 107-305 21-60
Maximum Output Power (W) 320 320 320
Efficiency 96.00% 95.00% 94.50%
Power Factor λ(120 Vac) 0.99 0.99 0.99
Power Factor λ(230 Vac) 0.96 0.96 0.96
Inquiry Download
