LED Programmable Driver
Home / Products / LED Programmable Driver / Explosion-Proof LED Driver A5 (MEP)
A5(MEP) Explosion-Proof LED Driver A5 (MEP)

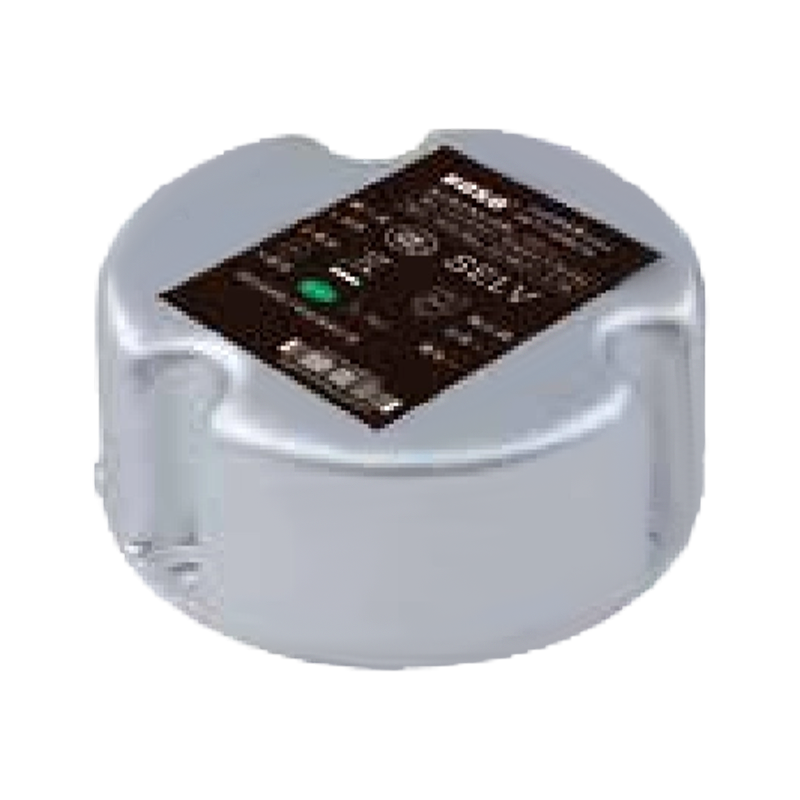

Explosion-Proof LED Driver A5 (MEP)

Certified for hazardous environments, Explosion Proof Lighting Driver A5(MEP) delivers isolated constant-current power tailored to explosive atmospheres. Industrial lighting and explosion-proof installations form the dedicated application scope. Input acceptance from 90–264 Vac, optional three-in-one dimming (0-10 V, PWM, resistor), dimming-to-off capability, optional 12 V auxiliary output and potentiometer current setting stand as the principal operating strengths. These features solve ignition hazards, limited dimming flexibility and moisture-related failures that frequently disrupt safety-critical sites. OEM/ODM options permit customization of auxiliary output, current ranges and branding to satisfy specific hazardous-area project requirements.

Form Drawing

Product Specification

Model MEP-040B058 MEP-040V058 MEP-050B038 MEP-060B043
Power (W) 40 40 50 60
Output voltage range (Vdc) 30~58 30~58 20~38 26~43
Output current range (A) 0.7 0.60~1.20 1.4 1.4
Typical efficiency 87.00% 87.00% 88.00% 88.00%
Dimensions (φ × H) mm 75*32 75*32 75*32 92*38
Certifications CCC/CE/CB/BIS CCC/CE/CB/TUV CCC/CE/CB CCC/CE/CB/BIS



Model MEP-075V057 MEP-080B058 MEP-120B058 A5-040M058A12
Power (W) 75 80 120 40
Output voltage range (Vdc) 27~57 30~58 30~58 30~58
Output current range (A) 1.00~1.75 1.4 2.1 0.60~0.87
Typical efficiency 90.00% 89.00% 89.00% 87.00%
Dimensions (φ × H) mm 92*38 112*38 112*38 92*38
Certifications CCC/CE/CB/TUV CCC/CE/BIS CCC/CE/BIS CCC/CE



Model A5-060M043A12H A5-080M058A12 A5-120M058A12
Power (W) 60 80 120
Output voltage range (Vdc) 26~43 30~58 30~58
Output current range (A) 1.20~1.70 1.20~1.70 1.80 ~2.60
Typical efficiency 88.00% 90.00% 91.00%
Dimensions (φ × H) mm 92*38 112*38 112*38
Certifications CCC/CE CCC/CE CCC/CE
Inquiry Download
