LED Programmable Driver
Home / Products / LED Programmable Driver / High Power In-Luminaire Light Controller SZ10-R1A
SZ10-R1A High Power In-Luminaire Light Controller SZ10-R1A

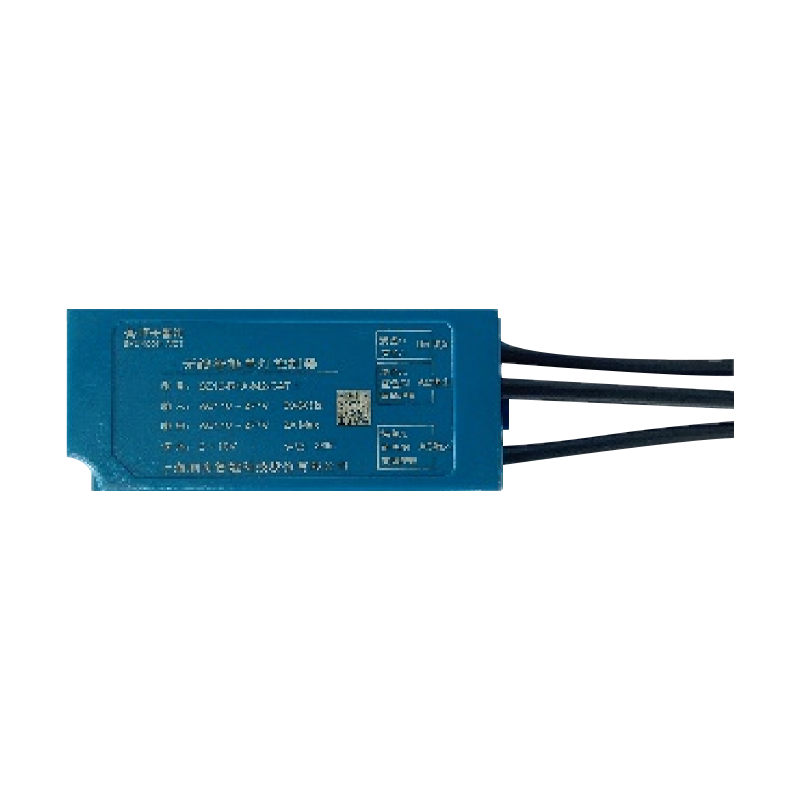

High Power In-Luminaire Light Controller SZ10-R1A

The High Power In-Luminaire Light Controller SZ10-R1A is a rugged wireless solution engineered for high-wattage outdoor lighting systems, designed for wired installation inside luminaires or poles. It's primarily used in large-scale street and area lighting projects, supporting LED loads up to 3000W with a wide AC 110~277V input range.

The controller's core strength is flexible dimming compatibility with 0-10V, 1-10V, and optional PWM protocols, paired with a built-in RTC for precise on/off scheduling and automated energy management — helping operators cut energy costs without manual intervention.

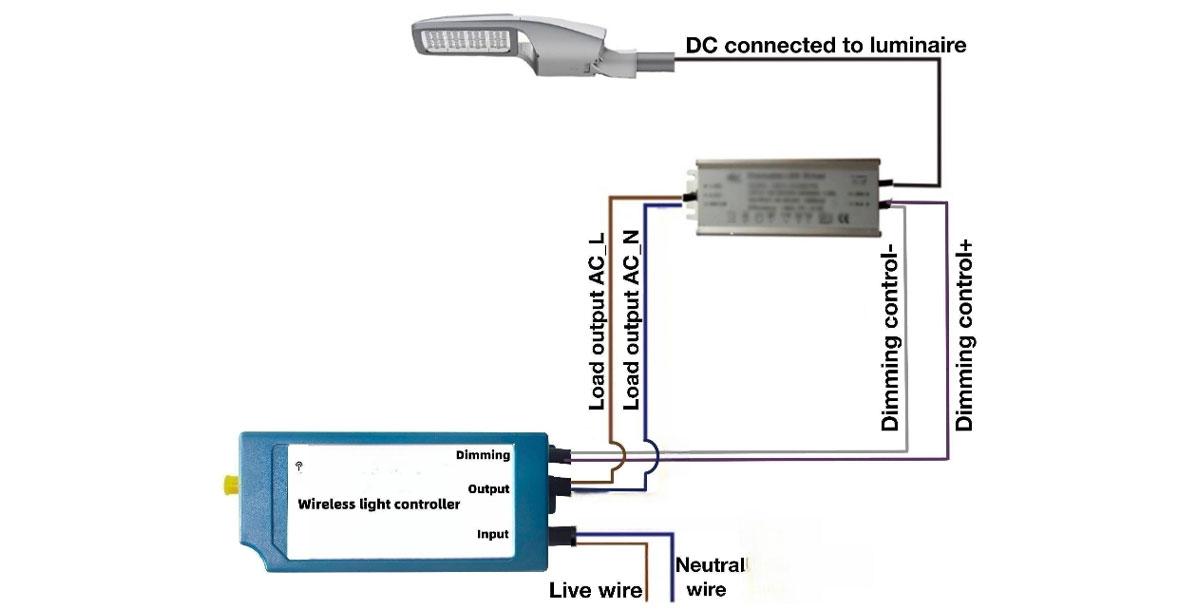

Form Drawing

3-2-axTm

Product Specification

Technical Spec NEMA Series
LED driver type Support 0-10V and 1-10V PWM optional
Connections Wired inside luminaire or pole
Communication LoRaWAN/LoRa-Mesh/Zigbee/ LTE Cat.1
RTC ✔
Built-in light sensor ×
Optional sensors Tilt, power outage
Power Supply AC110~277V
Luminaire power 3000W
IP IP65
Working Temp. -40 °C～+85 °C;
Surge Protection 6KV
Inquiry Download
