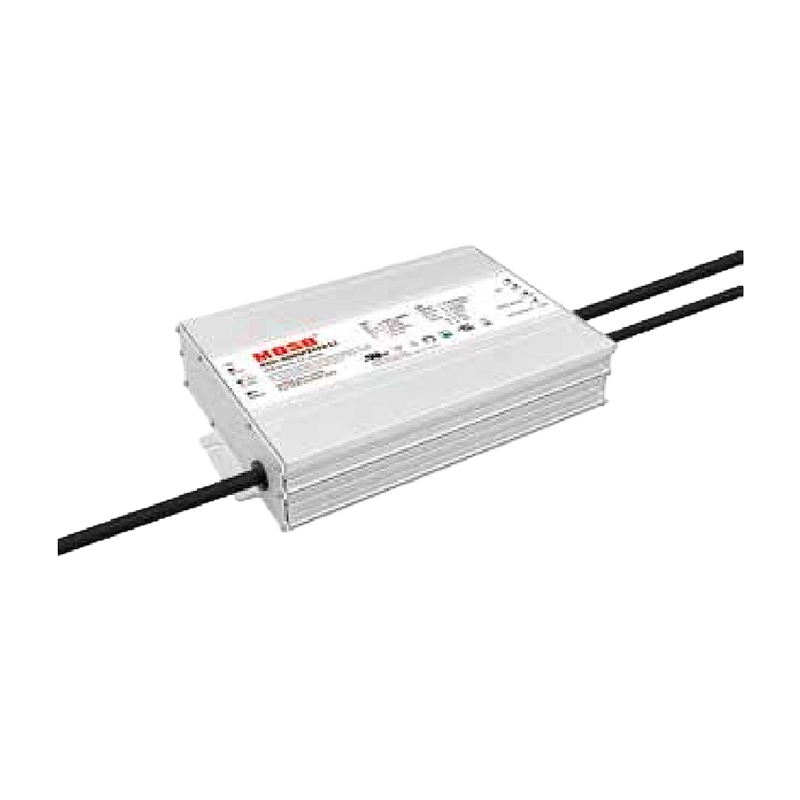

X6H High-Power LED Driver with 12V Auxiliary Output X6H

High-Power LED Driver with 12V Auxiliary Output X6H

Equipped with a dedicated 12V auxiliary output, the High-Power LED Driver with 12V Auxiliary Output X6H supplies constant-current LED power alongside auxiliary voltage for peripheral devices. It accepts wide AC input and supports common control protocols for dimming and addressing. The unit fits stadium, sports venue, and large-scale lighting systems.
It delivers residual-light-free dimming, low ripple, high power factor, surge protection, and standard safeguards against undervoltage, short-circuit, overvoltage, and overtemperature within an outdoor-rated housing. These capabilities reduce the need for separate auxiliary supplies, simplify wiring, and improve system reliability in outdoor installations. Custom ODM and OEM options cover interfaces, electrical settings, mechanical design, and branding.

Form Drawing

Product Specification

Model X6H-800M268A12 X6H-1K0M305A12 X6H-1K2M305A12
Power (W) 800 1000 1200
Output Voltage Range (Vdc) 114~268 153~305 153~305
Adjustable Full-Power Current Range (A) 3.00~4.45 3.28~4.36 3.94~5.25
Default Output 114~268V/2.80A 153~266V/3.75A 153~267V/4.50A
Typical Efficiency 95.50% 95.00% 95.00%
Typical Power Factor 0.97 0.98 0.98
Dimensions (L x W x H) mm 259*160*50 341*148*50 341*148*50
Inquiry Download
