S6 RGBW Independent 4-Channel Output Driver S6 RGBW

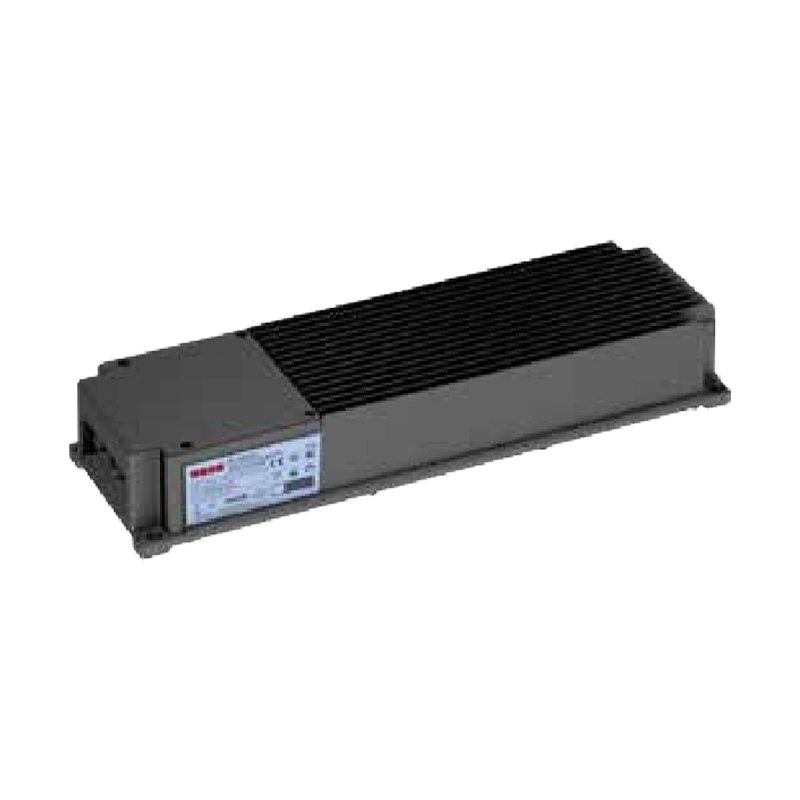

Independent 4-Channel Output Driver S6 RGBW

Designed for dynamic stadium lighting environments, the Independent 4-Channel Output Driver S6 RGBW delivers non-isolated constant-power performance with four fully independent output channels. This driver is intended for sports venue and stadium lighting projects that require precise multi-color or tunable-white illumination.
Key functions include surge protection up to 10 kV differential and common mode, complemented by safeguards against undervoltage, short-circuit, overvoltage, overload, and overtemperature. The IP66/IK08 rating supports outdoor use, backed by a five-year warranty. These capabilities help resolve common issues such as residual glow during dimming, limited color flexibility, multi-channel addressing complexity, and exposure to electrical surges in outdoor installations. ODM and OEM services are available for tailored control interfaces, electrical specifications, mechanical design, and branding.

Form Drawing

Product Specification

Model S6-1K6Y400
Input Voltage Range (Vac) 198~528
Channels 1 2 3 4
Maximum Power (W) 400 400 400 400
Output Voltage Range (Vdc) 160~400 160~400 160~400 160~400
Full-Power Output Current Range (A) 1.00~2.50 1.00~2.50 1.00~2.50 1.00~2.50
Typical Efficiency 97%
Typical Power Factor (PF) 0.97



Model S6-1K2Y400
Input Voltage Range (Vac) 198~528
Channels 1 2 3 4
Maximum Power (W) 300 300 300 300
Output Voltage Range (Vdc) 160~400 160~400 160~400 160~400
Full-Power Output Current Range (A) 0.75~1.87 0.75~1.87 0.75~1.87 0.75~1.87
Typical Efficiency 97%
Typical Power Factor (PF) 0.97



Model S6-880Y360
Input Voltage Range (Vac) 198~528
Channels 1 2 3 4
Maximum Power (W) 220 220 220 220
Output Voltage Range (Vdc) 80~360 80~360 80~360 80~360
Full-Power Output Current Range (A) 0.61~1.50 0.61~1.50 0.61~1.50 0.61~1.50
Typical Efficiency 97%
Typical Power Factor (PF) 0.97
Inquiry Download
