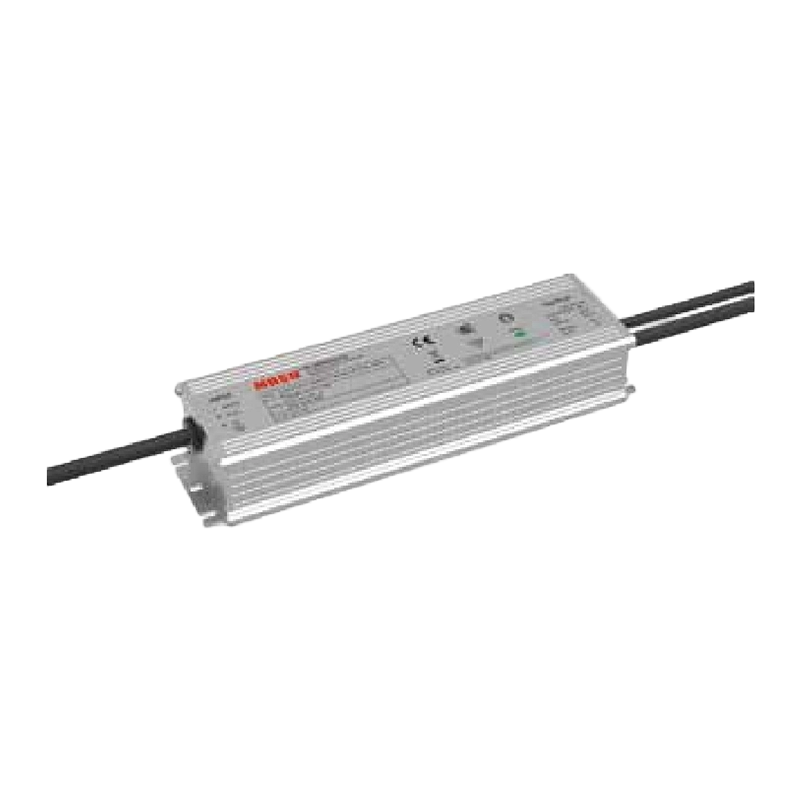

N7 Industrial LED Driver with Zero Residual Glow N7

Industrial LED Driver with Zero Residual Glow N7

Eliminating afterglow for precision work areas, Zero Residual Glow Industrial LED Driver N7 ensures immediate blackout when switched off. Linear high-bay, flood, wall and shoe-box installations define the main application fields. Non-isolated constant-current design, 90–305 Vac range, three-in-one dimming with optional zero residual glow, potentiometer current setting and optional auxiliary output constitute the central performance strengths.

The approach solves residual light that interferes with cameras, inspection processes and safety protocols, while also addressing moisture and surge threats. Flexible OEM/ODM arrangements support adjustment of residual-glow performance and current ranges.

Form Drawing

Product Specification

Model N7-060Y260Z N7-080Y260Z N7-120Y260Z N7-160Y260Z
Power (W) 60 80 120 160
Output voltage range (Vdc) 180~260 180~260 180~260 180~260
Adjustable output current range (A) 0.19~0.28 0.26~0.37 0.39~0.56 0.52~0.74
Typical efficiency 93.50% 94.00% 95.00% 95.00%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 157*56*37 157*56*37 169*56*37 169*56*37



Model N7-200Y260Z N7-240Y260Z N7-320Y260Z
Power (W) 200 240 320
Output voltage range (Vdc) 180~260 180~260 180~260
Adjustable output current range (A) 0.65~0.93 0.77 ~ 1.11 1.04~1.48
Typical efficiency 95.00% 95.00% 96.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 204*56*37 204*56*37 207*68*37
Inquiry Download
