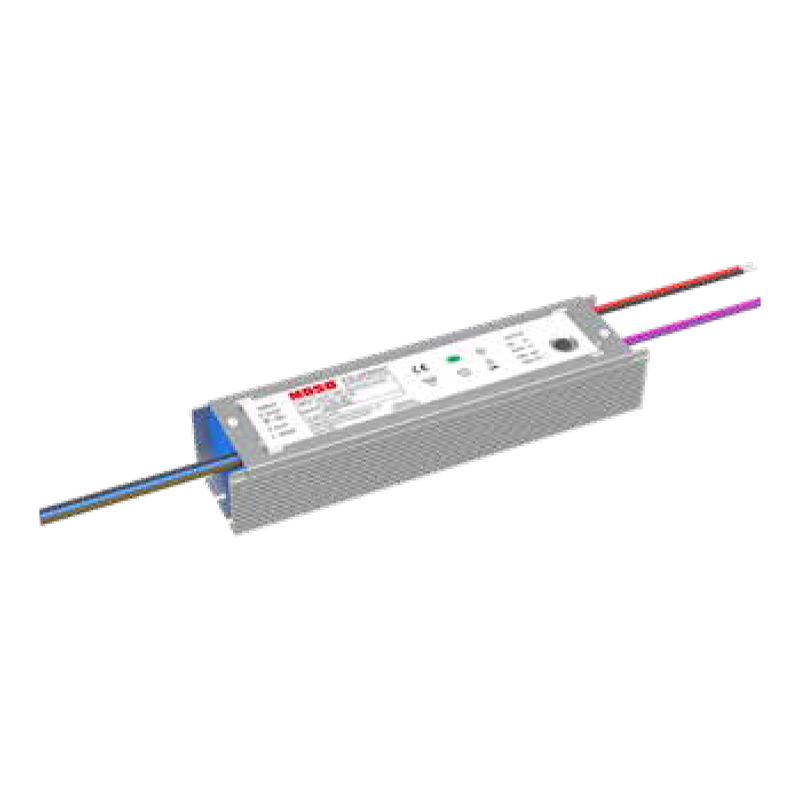

X7E Isolated Constant Current LED Driver, Dimmable X7E

Isolated Constant Current LED Driver, Dimmable X7E

The Isolated Dimmable Constant-Current LED Driver X7E is a high-performance isolated constant-current LED driver for professional lighting. Its robust isolated design delivers stable, efficient power conversion with high safety and reliability. Ideal for road and industrial lighting, it performs reliably in streetlights, highways, factories, and warehouses.

Key features include 176–264 Vac input, potentiometer-adjustable current (offline programming optional), and three-in-one dimming (0/1-10 V, PWM, resistance). These capabilities solve issues like voltage fluctuations, limited dimming flexibility, surge damage, thermal stress, and high maintenance costs. Full OEM/ODM services are available for custom parameters, form factors, branding, and packaging.

Form Drawing

Product Specification

Model X7E-015M06OF X7E-026M058F X7E-036M058F
Power (W) 15 26 36
Output voltage range (Vdc) 28~60 28~58 28~58
Adjustable full-power current range (A) 0.25~0.40 0.45~0.62 0.62~0.80
Default output 28~50V/0.30A 28~52V/0.50A 28~51V/0.70A
Typical efficiency 87.00% 88.00% 89.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 102*50*34 102*50*34 114*50*34



Model X7E-050M058F X7E-075M058F X7E-100M143
Power (W) 50 75 100
Output voltage range (Vdc) 28~58 28~58 72~143
Adjustable full-power current range (A) 0.86~1.20 1.30~1.60 0.70~1.05
Default output 28~42V/1.20A 28~47V/1.60A 72~133V/0.75A
Typical efficiency 89.00% 90.00% 91.50%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 115*64*34 115*64*34 148*50*34



Model X7E-150M214 X7E-200M286 X7E-240M343
Power (W) 150 200 240
Output voltage range (Vdc) 115~214 156~286 171~343
Adjustable full-power current range (A) 0.70~1.05 0.70~1.05 0.70~1.05
Default output 115~190V/0.79A 156~190V/1.05A 171~229V/1.05A
Typical efficiency 91.50% 93.50% 93.50%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 175*53*37 196*53*37 216*53*37
Inquiry Download
