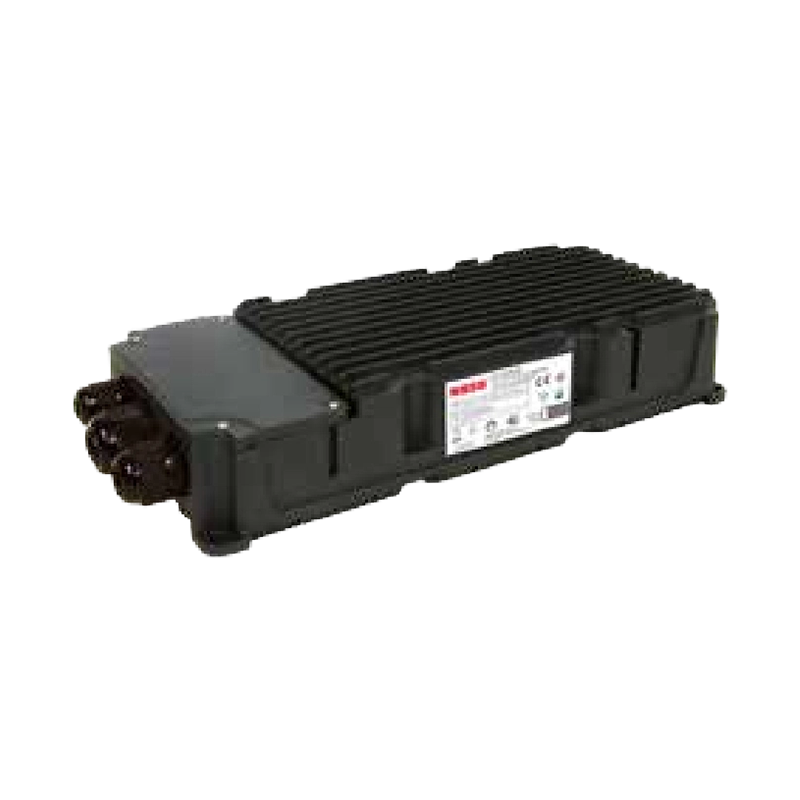

S6 600W Isolated Smart Stadium Driver S6 600W

Isolated Smart Stadium Driver S6 600W

The Isolated Smart Stadium Driver S6 600W is a constant-current LED driver designed for professional lighting systems. This driver is primarily applied in stadium and sports venue lighting installations, where reliable performance under demanding conditions is required.

Core functions include ultra-low output ripple below 2%, high power factor above 0.97 at full load, low total harmonic distortion, surge protection up to 6 kV differential / 10 kV common mode, and comprehensive safeguards against input undervoltage, output short-circuit, overvoltage, and overtemperature. We also offer flexible ODM and OEM services, enabling customization of control interfaces, electrical parameters, and mechanical design.

Form Drawing

Product Specification

Model S6-600D360 S6-600D520 S6-600R360 S6-600R520
Power (W) 600 600 600 600
Output Voltage Range (Vdc) 172～360 260～520 172～360 260～520
Adjustable Full-Power Current Range (A) 1.67～3.00 1.16～1.88 1.67～3.00 1.16～1.88
Default Output 172～285V/2.10A 260～500V/1.20A 172～285V/2.10A 260～500V/1.20A
Typical Efficiency 94.00% 94.50% 94.00% 94.50%
Typical Power Factor 0.97 0.95 0.97 0.95
Dimensions (LWH) mm 335*144*59 335*144*59 335*144*59 335*144*59
Inquiry Download
