N8H Multi-Protocol Programmable LED Driver N8H

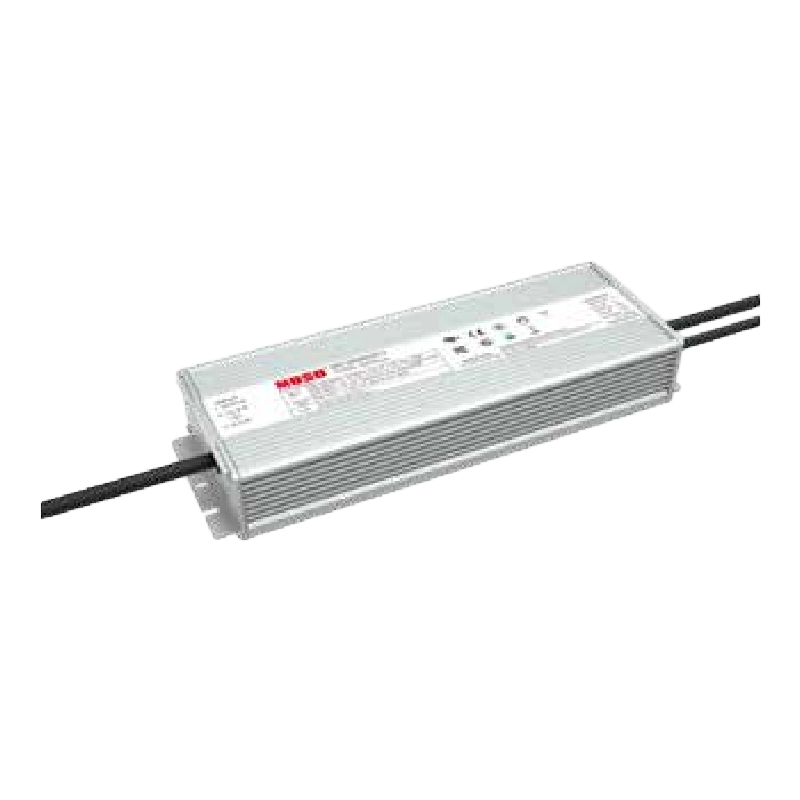

Multi-Protocol Programmable LED Driver N8H

The Multi-Protocol Programmable LED Driver N8H offers configurable constant-current output with wide input voltage support and multiple control options including DMX and DALI protocols. It serves sports venues, industrial sites, architectural projects, and other lighting installations that require adaptable performance.
Core functions cover residual-light-free dimming, low ripple, high power factor, surge protection, and safeguards against undervoltage, short-circuit, overvoltage, and overtemperature, paired with a durable outdoor-rated enclosure. These features help manage varying load conditions, reduce residual glow, and improve reliability across different installation settings. ODM and OEM services allow customization of programming interfaces, electrical parameters, mechanical design, and branding.

Form Drawing

Product Specification

Model N8H-500Y500Z N8H-680Y500Z N8H-880Y500Z N8H-1K0Y500Z
Power (W) 500 680 880 1000
Output Voltage Range (Vdc) 200~500 200~500 200~500 200~500
Adjustable Full-Power Current Range (A) 1.00~1.90 1.36~2.60 1.76~3.40 2.00~3.80
Default Output 1.70A 2.30A 2.00A 2.80A
Typical Efficiency 96.00% 96.00% 97.50% 97.20%
Typical Power Factor 0.97 0.97 0.97 0.97
Dimensions (L x W x H) mm 270*89*42 270*89*42 303*125*45 303*125*45
