X6 Offline Programmable Intelligent Driver X6

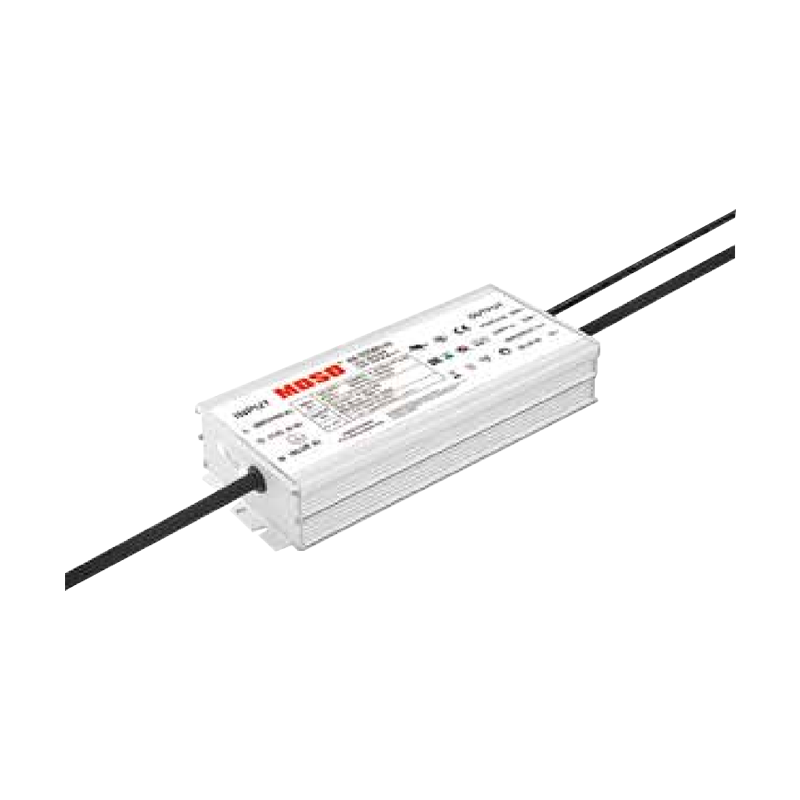

Offline Programmable Intelligent Driver X6

The Offline Programmable Intelligent Driver X6 is designed to take the guesswork out of field installation — its offline programmable design lets output current be set and verified before the driver ever reaches the pole, without needing power or a live load connected. It is widely used in road lighting and industrial lighting projects.

Customers choosing this driver are typically looking to avoid the delays and errors that come with on-site configuration, especially across large-scale rollouts spanning multiple fixture types. Housed in an IP67 enclosure with Class P and Type HL rating. OEM/ODM support may be available for wattage, housing, and output configuration upon request.

Form Drawing

Product Specification

Model X6-042M062-F X6-042M120-F X6-060M062-F X6-060M120-F
Power (W) 42 42 60 60
Output voltage range (Vdc) 32~62 50～120 32~62 50~120
Adjustable full-power current range (A) 0.68～1.05 0.35～0.70 0.97～1.30 0.50～0.94
Default output 32～43V/0.97A 50～60V/0.70A 32～62V/0.97A 50～64V/0.94A
Typical efficiency 0.87 0.89 0.87 0.9
Typical power factor 0.96 0.97 0.96 0.97
Dimensions (L × W × H) mm 116*64*33 116*64*33 116*64*33 116*64*33



Model X6-075Y041 X6-075Y062 X6-075Y108 X6-105Y041
Power (W) 75 75 75 105
Output voltage range (Vdc) 20~41 38 ~62 54～108 20~41
Adjustable full-power current range (A) 1.83～2.67 1.21~1.88 0.70～1.05 2.56～3.50
Default output 20～36V/2.10A 38~53V/1.40A 54～108V/0.70A 20～37V/2.80A
Typical efficiency 0.88 0.89 0.9 0.9
Typical power factor 0.97 0.96 0.96 0.96
Dimensions (L × W × H) mm 129*68*37 129*68*37 129*68*37 154*68*37



Model X6-105Y062 X6-105Y100 X6-105Y150 X6-150Y041
Power (W) 105 105 105 150
Output voltage range (Vdc) 38~62 50～100 75～150 20~41
Adjustable full-power current range (A) 1.69～2.50 1.05～1.40 0.70～1.05 3.66～5.40
Default output 38～50V/2.10A 50～75V/1.40A 75～100V/1.05A 20～35V/4.20A
Typical efficiency 0.91 0.91 0.92 0.91
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 154*68*37 154*68*37 154*68*37 174*68*37



Model X6-150Y062 X6-150Y108 X6-150Y143 X6-150Y214
Power (W) 150 150 150 150
Output voltage range (Vdc) 38~62 54～108 80～143 107~214
Adjustable full-power current range (A) 2.42～3.60 1.39～2.10 1.05～1.50 0.70～1.05
Default output 38～47V/3.15A 54～71V/2.10A 80～143V/1.05A 107～214V/0.70A
Typical efficiency 0.91 0.91 0.92 0.92
Typical power factor 0.96 0.96 0.97 0.97
Dimensions (L × W × H) mm 174*68*37 174*68*37 174*68*37 174*68*37



Model X6-200Y041 X6-200Y062 X6-200Y096 X6-200Y143
Power (W) 200 200 200 200
Output voltage range (Vdc) 20~41 38~62 48~96 70～143
Adjustable full-power current range (A) 4.88 ～6.67 3.23 ～5.00 2.10～3.00 1.40～2.10
Default output 20～36V/5.56A 38～41V/4.90A 48~71V/2.80A 70～143V/1.40A
Typical efficiency 0.91 0.92 0.92 0.93
Typical power factor 0.96 0.97 0.97 0.97
Dimensions (L × W × H) mm 194*68*39 194*68*39 194*68*39 194*68*39



Model X6-200Y191 X6-200Y286 X6-240Y041 X6-240Y062
Power (W) 200 200 240 240
Output voltage range (Vdc) 96~191 143~286 20~41 38 ~ 62
Adjustable full-power current range (A) 1.05～1.50 0.70～1.05 5.86~7.50 3.88 ～5.71
Default output 96～190V/1.05A 143～ 286V/0.70A 20～35V/6.70A 38～48V/5.00A
Typical efficiency 0.93 0.92 0.92 0.92
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 194*68*39 194*68*39 209*68*39 209*68*39



Model X6-240Y171 X6-240Y229 X6-240Y343 X6-320Y041Z
Power (W) 240 240 240 320
Output voltage range (Vdc) 85～171 114~229 171~343 20~41
Adjustable full-power current range (A) 1.40～ 2.10 1.05～1.50 0.70～1.05 7.80～10.00
Default output 85～171V/1.40A 114～228V/1.05A 171～343V/0.70A 20～36V/8.90A
Typical efficiency 0.93 0.93 0.935 0.92
Typical power factor 0.97 0.97 0.97 0.96
Dimensions (L × W × H) mm 209*68*39 209*68*39 209*68*39 231*98*42



Model X6-320Y062Z X6-320Y143Z X6-320Y230Z X6-320Y457Z
Power (W) 320 320 320 320
Output voltage range (Vdc) 38 ~62 72～143 115~230 228~457
Adjustable full-power current range (A) 5.20~7.50 2.24～3.20 1.39～2.10 0.70～1.10
Default output 38~47V/6.70A 72～114V/2.80A 115～152V/2.10A 228～304V/1.05A
Typical efficiency 0.93 0.93 0.92 0.93
Typical power factor 0.96 0.96 0.97 0.97
Dimensions (L × W × H) mm 231*98*42 231*98*42 231*98*42 231*98*42
