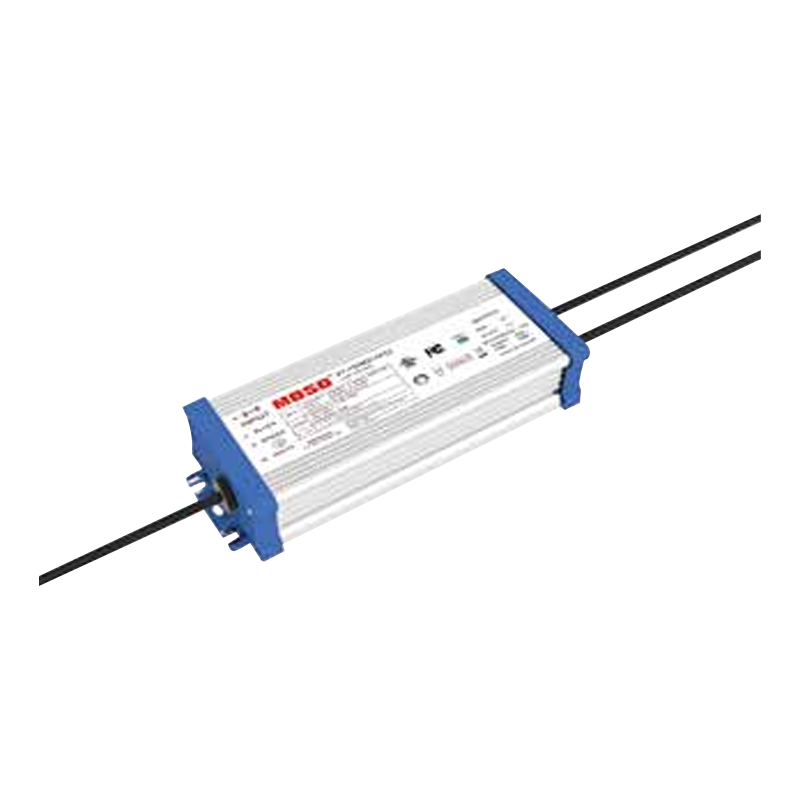

X7A Smart LED Driver with 12V Auxiliary Output X7A

Smart LED Driver with 12V Auxiliary Output X7A

Smart LED Driver with Auxiliary 12V Output X7A is an isolated constant-power LED driver equipped with a dedicated 12 V / 0.25 A auxiliary output. It is applied to roadway lighting, industrial lighting, and horticultural lighting systems that require both main LED power and a reliable auxiliary supply for sensors, controllers, or fans.

Core functions include a wide 90–305 Vac input range (full load from 108 Vac), NFC-programmable output current, three-in-one dimming (0–10 V, PWM, resistance) with dimming-off capability, and standby power below 0.5 W. A five-year warranty further enhances reliability. OEM and ODM services are available for customized electrical parameters, mechanical design, branding, and packaging to meet specific project needs.

Form Drawing

Product Specification

Model X7-075M056A12 X7-075M108A12 X7-100M056A12 X7-100M143A12
Power (W) 75 75 100 100
Output voltage range (Vdc) 28~56 54～108 28~56 72~143
Adjustable full-power current range (A) 1.35~2.15 0.70～1.05 1.78～2.85 0.70～1.05
Default output 28~52V/1.45A 54～108V/0.70A 28~49V/2.05A 72～143V/0.70A
Typical efficiency 89.00% 89.00% 90.00% 90.00%
Typical power factor 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 147*72*37 147*72*37 160*72*37 160*72*37



Model X7-150M056A12 X7-150M214A12 X7-200M056A12
Power (W) 150 150 200
Output voltage range (Vdc) 28~56 107～214 28~56
Adjustable full-power current range (A) 2.70~4.30 0.70～1.05 3.57～5.70
Default output 28~48V/3.10A 107～214V/0.70A 28～48V/4.15A
Typical efficiency 91.00% 91.00% 91.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 183*72*37 183*72*37 199*72*39



Model X7-200M286A12 X7-240M056A12 X7-240M343A12
Power (W) 200 240 240
Output voltage range (Vdc) 143～286 28~56 171～343
Adjustable full-power current range (A) 0.70～1.05 4.30～6.85 0.70～1.05
Default output 143～286V/0.70A 28～48V/5.00A 171～343V/0.70A
Typical efficiency 93.00% 92.00% 93.00%
Typical power factor 0.97 0.97 0.97
Dimensions (L × W × H) mm 199*72*39 231*72*39 222*72*39
