V8 Standard Constant Voltage LED Driver V8

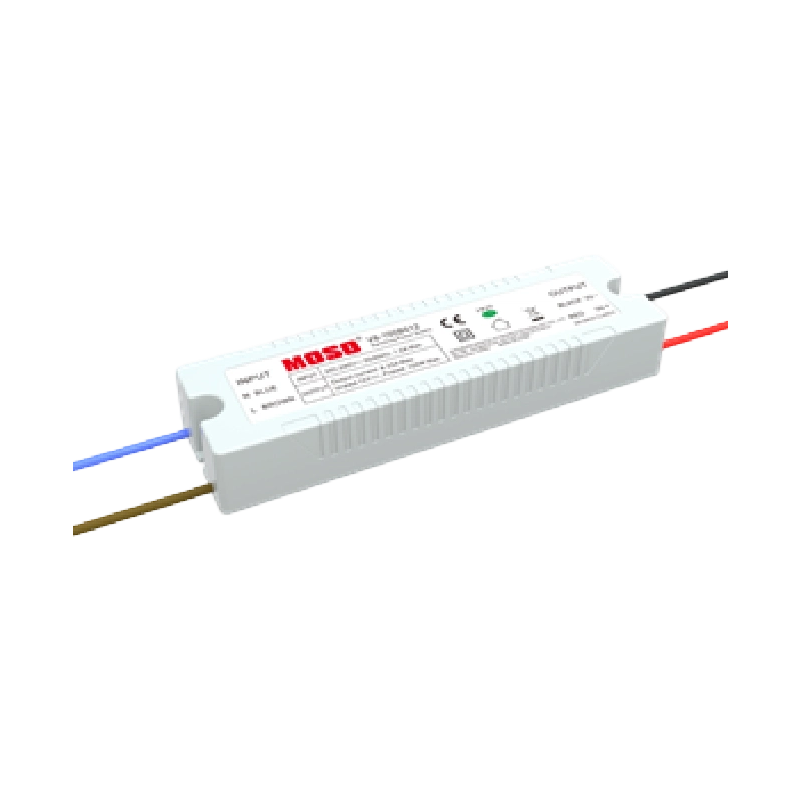

Standard Constant Voltage LED Driver V8

Built around steady voltage output and protected installation, the Standard Constant Voltage LED Driver V8 provides a practical power solution for LED lighting systems. It works well in landscape lighting, advertising light boxes, architectural displays, and other fixed LED installations. The design combines isolated constant-voltage driving, IP67 protection, and surge resistance suited to different power ranges. Short-circuit, over-temperature, and over-current protection help reduce concerns related to unstable loads and demanding operating conditions. OEM/ODM options can cover electrical specifications, housing configurations, and control requirements for different lighting projects.

Form Drawing

Product Specification

Model V8-036B012 V8-036B024 V8-060B012 V8-060B024
Power (W) 36 36 60 60
Output Voltage (Vdc) 12 24 12 24
Output Current Range (A) 0～3.0 0～1.5 0～5.0 0～2.5
Typical Efficiency 87.00% 87.00% 88.00% 87.00%
Dimensions (L x W x H) mm 129*45*17 129*45*17 129*45*17 129*45*17



Model V8-100B012 V8-100B024 V8-150B012 V8-150B024
Power (W) 100 100 150 150
Output Voltage (Vdc) 12 24 12 24
Output Current Range (A) 0～8.33 0～4.2 0～12.5 0～6.25
Typical Efficiency 90.00% 91.00% 87.00% 87.00%
Dimensions (L x W x H) mm 158*45*24 158*45*24 260*53*24 260*53*24



Model V8-200B012 V8-200B024 V8-300B012
Power (W) 200 200 300
Output Voltage (Vdc) 12 24 12
Output Current Range (A) 0～16.7 0～8.35 0～25
Typical Efficiency 86.00% 87.00% 91.50%
Dimensions (L x W x H) mm 282*62*30 282*62*30 297*62*30



Model V8-300B024 V8-400B012 V8-400B024
Power (W) 300 350 400
Output Voltage (Vdc) 24 12 24
Output Current Range (A) 0～12.5 0～29.2 0～16.7
Typical Efficiency 91.50% 91.50% 91.50%
Dimensions (L x W x H) mm 297*62*30 312*62*30 312*62*30
