T30-1800W High Power Supply with Selectable Voltage T30-1800W

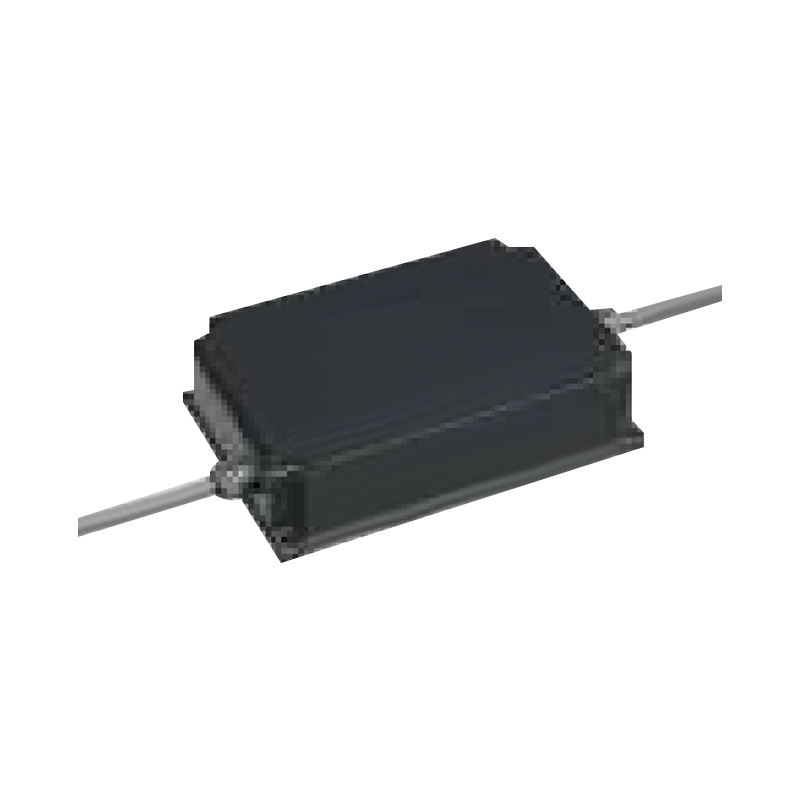

High Power Supply with Selectable Voltage T30-1800W

High Power Supply with Selectable Voltage T30-1800W provides 36V output, rated at 50A under 230Vac and 25A under 115Vac, from a 90–264Vac input range. It is suitable for industrial machinery, automation equipment, production systems, and high-power LED applications. Core capabilities include stable switching conversion, power factor above 0.95, 4KV common-mode and 2KV differential-mode surge protection, and 360mV peak-to-peak ripple. These features help manage demanding loads and input-side fluctuations. Custom development can cover terminal arrangements, mechanical dimensions, cooling methods, control interfaces, and application-specific electrical requirements.

Form Drawing

Product Specification

Model T30-TE000J360-K80A0
Input Voltage 90~264Vac/47~63Hz
Output 36V/50A@230Vac
36V/25A@115Vac
Surge Protection Rating CM:4KV;DM:2KV
Ripple P-P (mV) 360
Dimensions (mm) 300*199.2*81
Certifications /
Power Factor >0.95
Inquiry Download
