S6 1200- 1800W Heavy-Load Stadium Smart Driver S6 1200-1800W

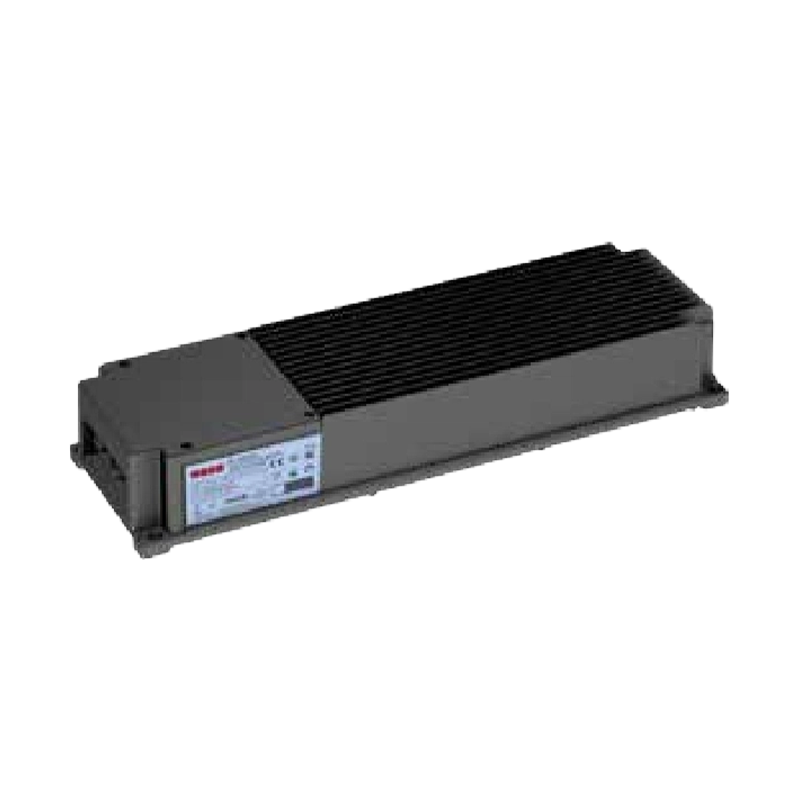

Heavy-Load Stadium Smart Driver S6 1200-1800W

Engineered for demanding high-power setups, the Heavy-Load Stadium Smart Driver S6 1200-1800W provides non-isolated constant-power output with 2 or 3 independent channels. It supports 198–440 Vac input and soft-switchable DMX512-RDM/DALI-2 control with residual-light-free dimming. Suited for stadium and sports venue lighting requiring substantial multi-channel capacity. Key traits include ripple below 2%, power factor above 0.97, THD under 10%, and 10 kV surge protection, plus IP66/IK08 rating and five-year warranty. These address residual glow, multi-channel load balancing, and outdoor surge exposure. ODM/OEM customization is available for interfaces, parameters, and branding.

Form Drawing

Product Specification

Model S6-1K2D500 S6-1K5D500 S6-1K8D500
Power (W) 1200(600W×2) 1500(500W×3) 1800(600W×3)
Output Voltage Range (Vdc) 260～500 260～500 260～500
Adjustable Full-Power Current Range (A) (1.2～1.8A)*2 (1.0～1.4A)*3 (1.2～1.8A)*3
Default Output 1.50A*2 1.20A*3 1.50A*3
Typical Efficiency 97.00% 97.00% 97.00%
Typical Power Factor 0.95 0.95 0.95
Dimensions (L*W*H) mm 500*150*81 500*150*81 500*150*81



Model S6-1K2R500 S6-1K5R500 S6-1K8R500
Power (W) 1200(600W×2) 1500(500W×3) 1800(600W×3)
Output Voltage Range (Vdc) 260～500 260～500 260～500
Adjustable Full-Power Current Range (A) (1.2～1.8A)*2 (1.0～1.4A)*3 (1.2～1.8A)*3
Default Output 1.50A*2 1.20A*3 1.50A*3
Typical Efficiency 97.00% 97.00% 97.00%
Typical Power Factor 0.95 0.95 0.95
Dimensions (L*W*H) mm 500*150*81 500*150*81 500*150*81
