I6 Integrated Intelligent Control LED Driver I6

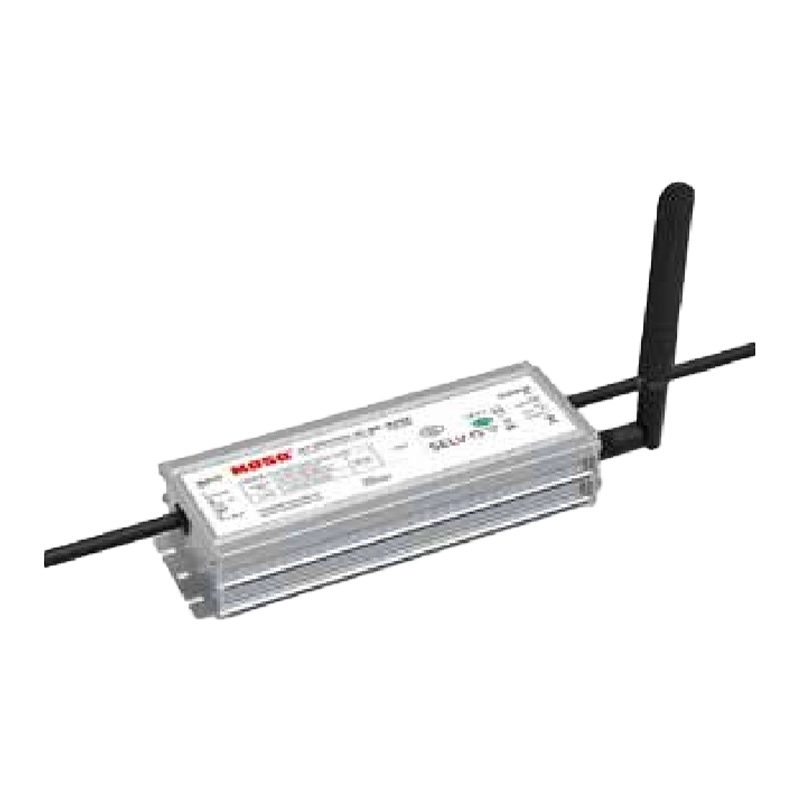

Integrated Intelligent Control LED Driver I6

Merging power conversion and smart management, Integrated Intelligent Control Power I6 serves as a complete solution for intelligent street-light networks. Road lighting, park illumination, port facilities and scenic-area projects constitute the principal application domains. Software-defined architecture enables offline strategy operation and simplified wiring, while remote control, intelligent dimming strategies, real-time data collection, power statistics, automatic networking, fast response and remote firmware upgrades operate within the 90–305 Vac isolated platform. The integrated approach solves separate controllers, complex cabling, delayed fault detection and difficult maintenance. OEM/ODM programs support customization of communication protocols, and strategy libraries, helping manufacturers deliver differentiated smart-lighting solutions.

Form Drawing

Product Specification

Model 16-075C056 16-075C108 16-100C056 16-100C143
Power (W)     75 75 100 100
Output voltage range (Vdc) 28~56 54~108 28~56 72~143
Adjustable full-power current range (A) 1.35~2.15 0.70~1.05 1.80~2.85 0.70~1.05
Communication method 4G Cat.1
Typical efficiency 90.00% 89.50% 90.00% 91.00%
Typical power factor (PF) 0.97 0.97 0.97 0.97
Dimensions (L × W × H) mm 167*37*68 181*37*68 177*37*68 181*37*68



Model 16-150C056 16-150C214 16-200C056
Power (W)     150 150 200
Output voltage range (Vdc) 28~56 107~214 28~56
Adjustable full-power current range (A) 2.70~4.30 0.70~1.05 3.57~5.70
Communication method 4G Cat.1
Typical efficiency 92.00% 92.50% 92.00%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 200*37*68 195*37*68 215*37*68



Model 16-200C286 16-240C056 16-240C343
Power (W)     200 240 240
Output voltage range (Vdc) 143~286 28~56 171~343
Adjustable full-power current range (A) 0.70~1.05 4.30~6.30 0.70~1.05
Communication method 4G Cat.1
Typical efficiency 93.50% 93.00% 93.50%
Typical power factor (PF) 0.97 0.97 0.97
Dimensions (L × W × H) mm 225*37*68 232*37*68 225*37*68
